Garmin G3X Touch Installation Manual

190-01115-01 G3X/G3X Touch Installation Manual - LRU Pinouts
Rev. AC Page 25-4
25.1.3 Terminal Block (TB273) Connector

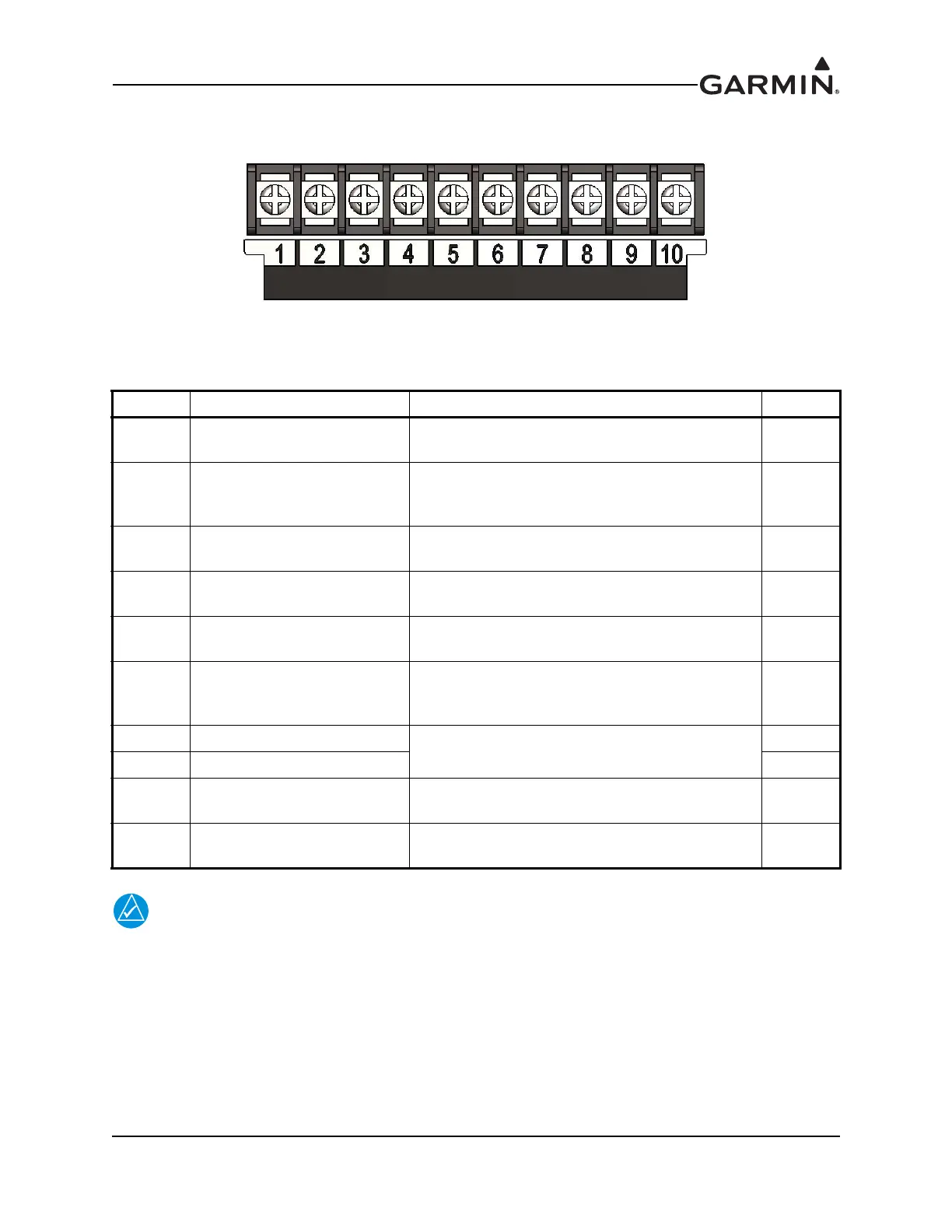

Figure 25-3 TB273 on GAD 27, as viewed looking at connector on unit
NOTE
Keep Alive Power In (Pin 1, TB273) can be used as a second power input for the GAD 27.
Pin Pin Name FUNCTION I/O
1 KEEP ALIVE POWER IN
INPUT POWER FOR “KEEP ALIVE” BUS
(+5VDC INPUT MIN.)
In
2 KEEP ALIVE POWER VOUT
OUTPUT POWER FOR “KEEP ALIVE” BUS
(GREATER OF +12VDC OR INPUT POWER,
3.5 A OUTPUT MAX.)
Out
3 LIGHT 1 POWER
INPUT FOR LIGHT 1 (FUSE TO LESSER OF
10 A OR ACTUAL LIGHT RATING)
In
4 LIGHT 2 POWER
INPUT FOR LIGHT 2 (FUSE TO LESSER OF
10 A OR ACTUAL LIGHT RATING)
In
5 FLAP POWER IN
INPUT FOR FLAP MOTOR (FUSE TO LESSER
OF 10 A OR ACTUAL FLAP MOTOR RATING)
In
6 FLAP POWER GROUND
GROUND RETURN FOR FLAP MOTOR
CURRENT, MUST HAVE DEDICATED
GROUND WIRE
--
7 FLAP POWER OUT 1
10 A POWER OUTPUTS TO DRIVE MOTOR
UP OR DOWN
Out
8 FLAP POWER OUT 2 Out
9 LIGHT 1 OUTPUT
10 A ACTIVE HIGH POWER OUTPUT FOR
LIGHT 1
Out
10 LIGHT 2 OUTPUT
10 A ACTIVE HIGH POWER OUTPUT FOR
LIGHT 2
Out

Garmin G3X Touch Specifications

General

Power Input	10-32 VDC
Touchscreen	Yes
Built-in GPS	Yes
AHRS	Yes
Air Data Computer	Yes
Aviation Database	Yes
Terrain Awareness	Yes
Operating Temperature	-20°C to +55°C
Display Size	10.6 inches
Display Type	LCD
Connectivity	Wi-Fi, Bluetooth, USB, RS-232, CAN bus
Engine Monitoring	Yes
Autopilot Compatibility	Yes
Traffic Awareness	Yes
Weather Data	Yes
