Garmin G3X Touch Installation Manual

190-01115-01 G3X/G3X Touch Installation Manual - LRU Pinouts
Rev. AC Page 25-10
25.2.2 J292 Connector

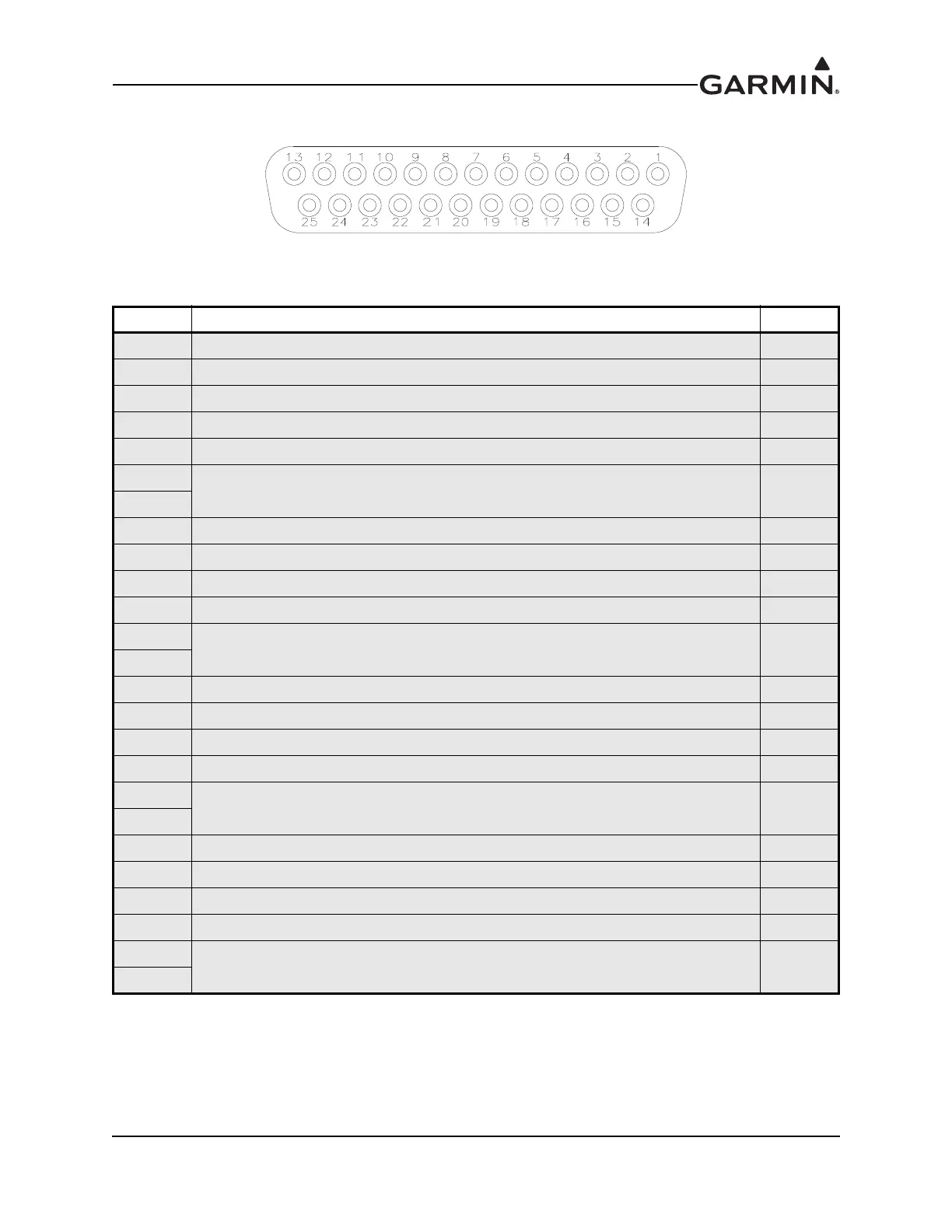

Figure 25-5 J292 on GAD 29, as viewed looking at connector on unit
Pin Pin Name I/O
1 RESERVED --
2 RESERVED --
3 RESERVED --
4 ARINC RX 4B In
5 ARINC RX 3B In
6
ARINC TX 2B Out
7
8 RESERVED --
9 CAN TERM 1 --
10 ARINC RX 2B In
11 ARINC RX 1B In
12
ARINC TX 1B Out
13
14 GROUND --
15 RESERVED --
16 ARINC RX 4A In
17 ARINC RX 3A In
18
ARINC TX 2A Out
19
20 GROUND --
21 CAN TERM 2 --
22 ARINC RX 2A In
23 ARINC RX 1A In
24
ARINC TX 1A Out
25

Garmin G3X Touch Specifications

General

Power Input	10-32 VDC
Touchscreen	Yes
Built-in GPS	Yes
AHRS	Yes
Air Data Computer	Yes
Aviation Database	Yes
Terrain Awareness	Yes
Operating Temperature	-20°C to +55°C
Display Size	10.6 inches
Display Type	LCD
Connectivity	Wi-Fi, Bluetooth, USB, RS-232, CAN bus
Engine Monitoring	Yes
Autopilot Compatibility	Yes
Traffic Awareness	Yes
Weather Data	Yes
