190-01115-01 G3X/G3X Touch Installation Manual - GDU 37X Installation

Rev. AC Page 6-1

6 GDU 37X (DISPLAY UNIT) INSTALLATION

This section contains general information as well as installation information for the GDU 37X. Use this

section to mount the GDU 37X unit(s).

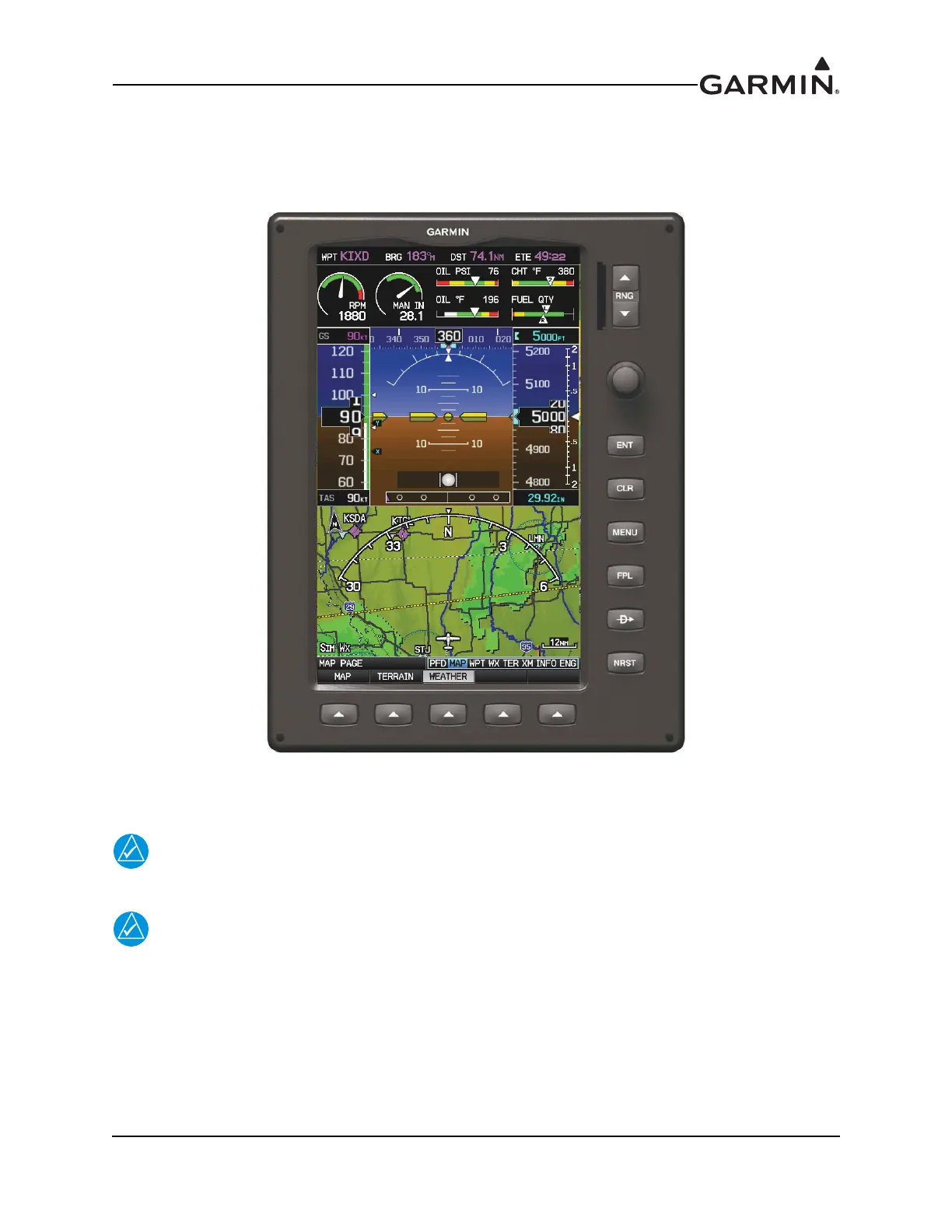

Figure 6-1 GDU 37X Unit View

6.1 Equipment Description

NOTE

There is no TSO/ETSO applicable to the GDU 37X.

NOTE

Unless a GPS 20A is used for GPS position, a minimum of one GPS antenna is required

for installations using more than one GDU 37X unit, as the GDU 37X will “share” the

GPS information with all GDU 37X units. Additional GPS antennas may be used for

redundancy, but are not required.

The GDU 37X provides a central display and user interface for the G3X system. The display is mounted

flush to the aircraft instrument panel using four #6 captured screws with a 3/32” hex head. The GDU 37X

is available in two models, GDU 370 and GDU 375. The GDU 370 is a Garmin Display Unit with a VFR

WAAS-GPS receiver. The GDU 375 provides these same features plus an SiriusXM

® receiver.
