190-01115-01 G3X/G3X Touch Installation Manual - GSA 28 Installation
Rev. AC Page 17-33

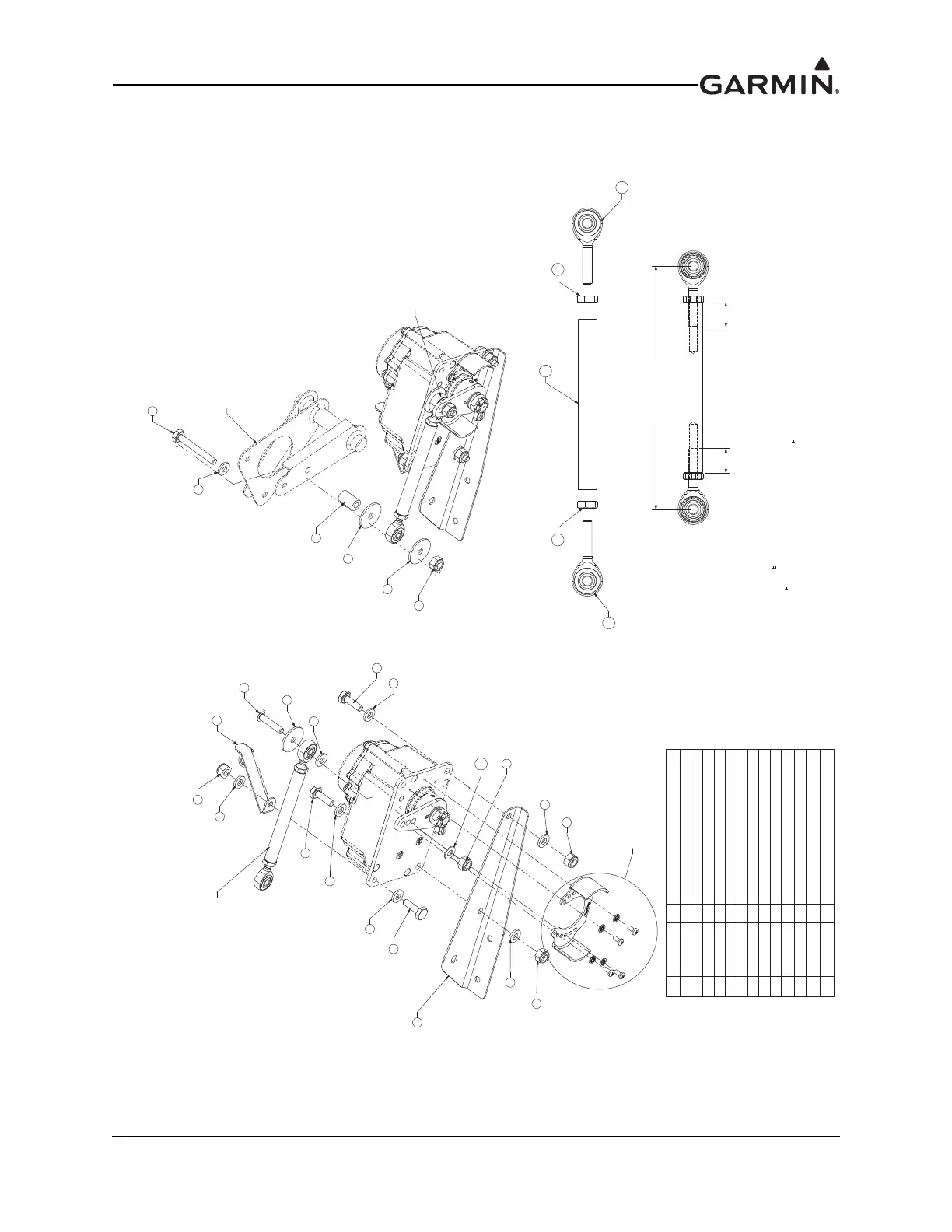

Figure 17-11.1 GSA 28 RV-7/8/10 Roll Mounting Kit 011-02952-12 (page 1 of 2)
ITEM GARMIN P/N QTY DESCRIPTION
1 210-00117-03 5 AN365-1032A LOCK NUT
2 212-00035-10 8 AN960-10 WASHER
3 115-01854-05 1 ROLL BRACKET, RV-7, 8, 9, &10
4 211-00090-01 3 AN3-5A BOLT
5 212-00080-03 3 AN970-3 WASHER
6 211-00090-05 1 AN3-7A BOLT
7 115-01854-06 1 ROLL SUPPORT, RV-7, 8, 9, &10
8 213-00093-02 1 SPACER, .192" x .375" x. 600" LNG
9 211-00090-08 1 AN3-14A BOLT
10 382-00019-02 2 MALE ROD END BEARING
11 210-00116-03 2 AN315-3R JAM NUT
12 117-00542-09 1 PUSH ROD, 3/8" DIA, 3.50" LNG, TAPPED
13 212-00043-10 1 AN960-10L (THIN) WASHER
NOTES:
DIMENSIONS: INCHES1.
DIMENSIONS ARE NOMINAL AND TOLERANCES ARE NOT IMPLIED
2.
UNLESS SPECIFICALLY STATED.
TIGHTEN ALL AN365-1032A LOCK NUTS (ITEM 1) TO 34 - 46 IN-LBS 3.
(40 IN-LBS 15%).
TIGHTEN AN315R JAM NUTS (ITEM 11) TO 14 - 20 IN-LBS 4.
(17 3 IN-LBS).
TIGHTEN #4-40 SCREWS FOR STOP BRACKET TO 8 1 IN-LBS.5.
THREAD ENGAGEMENT BETWEEN ROD END (ITEM 10) AND6.
ALUMINUM PUSH ROD (ITEM 12) MUST NOT BE LESS THAN .375".
9
1
DETAIL A
RIGHT WING AILERON BELL CRANK
SEE SHEET 2 FOR MODIFICATION
5
2
8
5
PUSH ROD SHOWN IN
MIDDLE SERVO HOLE.
SEE SHEET 2, NOTE 4.
2
SEE DETAIL A
PUSH ROD ASSEMBLY
SEE NOTE 5
1
2
6
5
2
1
2
4
4
3
7
2
2
4
1
13
2
1
011-02951-00 STOP BRACKET KIT
(INCLUDED WITH GSA28 UNIT)
RV-7/8/10 RIGHT WING ROLL MOUNTING KIT FOR GSA28
GARMIN PART NUMBER 011-02952-12
10
1111
10
12
SEE SHEET 2, NOTE 4
5.00
SEE NOTE 6
.50
.50
SEE NOTE 6
