190-01115-01 G3X/G3X Touch Installation Manual - GAP 26 Installation

Rev. AC Page 5-7

5.6 Outline and Installation Drawings

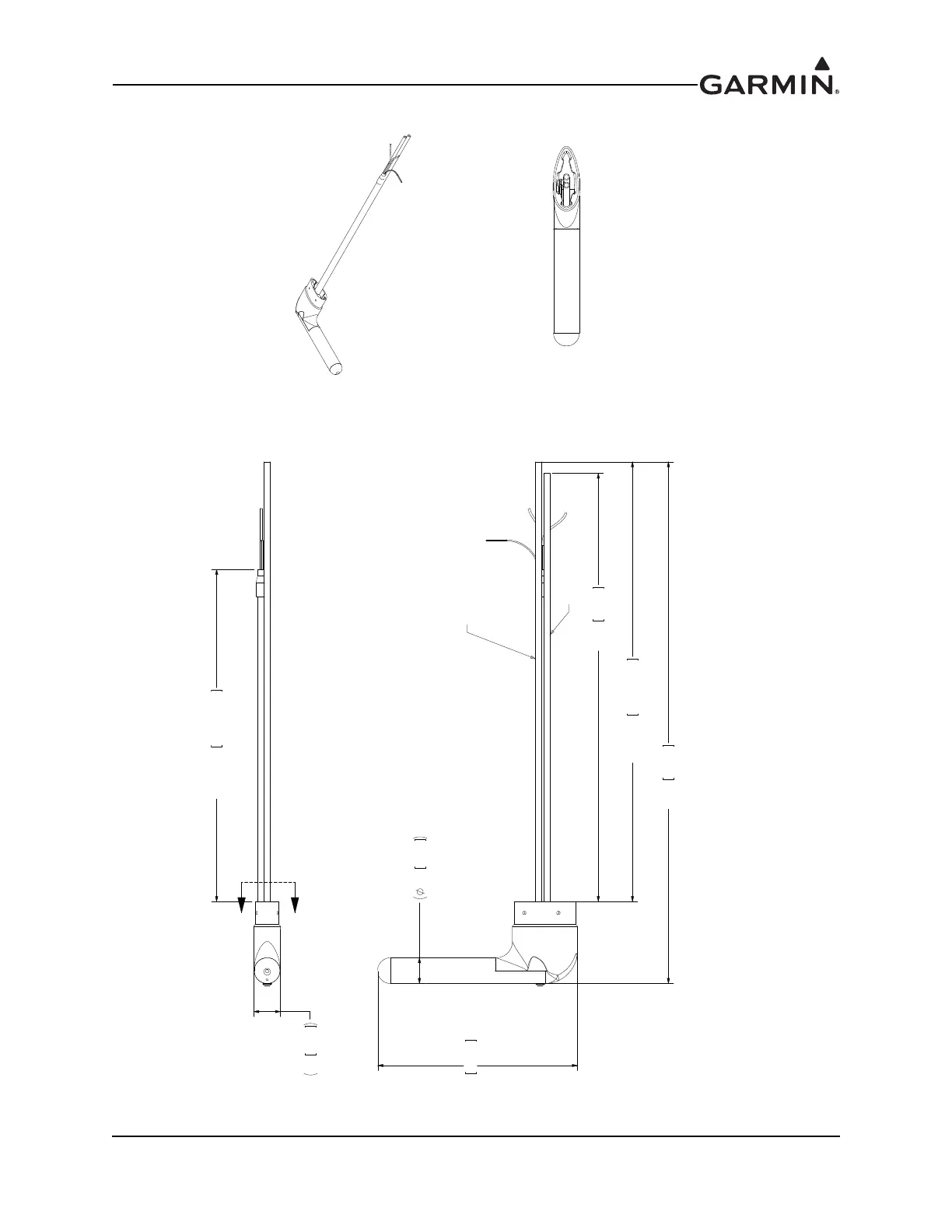

Figure 5-8 GAP 26 Outline Drawing

.790

20.07

13.480±.25

342.39±6.35

13.130 333.50

15.995 406.27

6.12

155.40

PITOT

AOA

.821

20.84

10.180±.250 258.57±6.35

SECTION

A-A

UNLESS OTHERWISE STATED:

INTERPRET PER ASME Y14.5M-1994.

DIMENSIONS: INCHES [mm] DIMENSIONS IN BRACKETS ARE FOR REFERENCE ONLY.
