190-01115-01 G3X/G3X Touch Installation Manual - Sensor Wiring Examples

Rev. AC Page 29-4

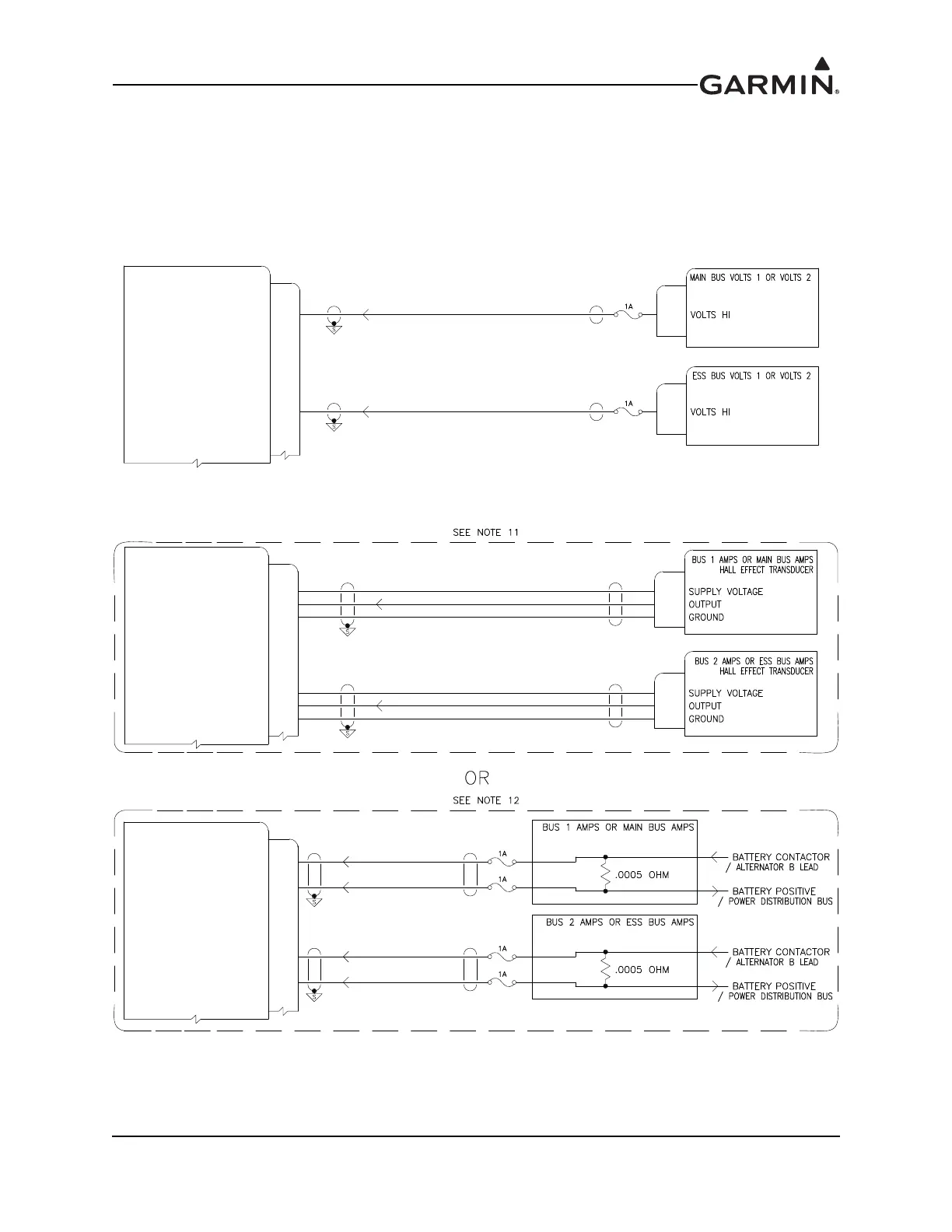

Figure 29-2.2 Page 1 of 2 Electrical and Discrete Input/Output Examples (w/GEA 24)

GEA 24

P243

GEA 24

P244

GEA 24

P244

POS 3 HI / +5V_3

POS 3 / GP 3 / FUEL QTY 3

POS 3 LO / GND

POS 4 HI / +5V_4

POS 4 / GP 4 / FUEL QTY 4

POS 4 LO / GND

VOLTS 1

VOLTS 2

SHUNT 2 LO

SHUNT 2 HI

SHUNT 1 LO

SHUNT 1 HI

THESE CONNECTIONS ARE OPTIONAL, BUS VOLTAGE CAN BE MONITORED FROM

THE GEA 24 POWER SUPPLY INPUTS. SEE SECTION 18 FOR CONFIGURATION INFO.
