190-01115-01 G3X/G3X Touch Installation Manual - Airframe Specific Installation Guidance

Rev. AC Page A-19

8. Install the GMU 22 Magnetometer in the installation rack with the hardware provided as shown in

Figure A-28.

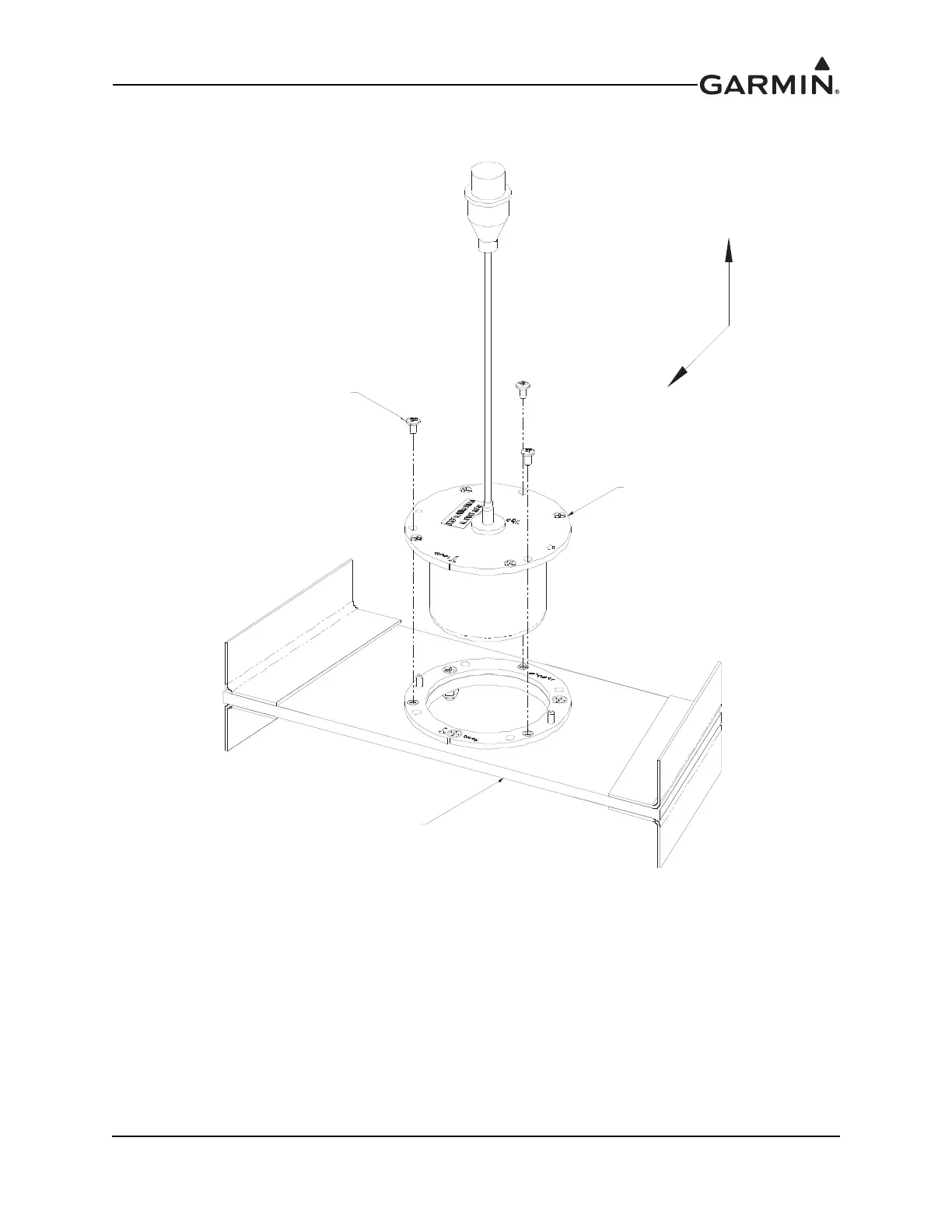

Figure A-28 Installation Of GMU 22 Magnetometer

GMU 22

MAGNETOMETER

211-60037-08 SCREW

6-32 x .25 BRASS

(3X)

MAGNETOMETER SHELF (REF)

FWD

Default Chapter2
