Garmin G3X Touch Installation Manual

190-01115-01 G3X/G3X Touch Installation Manual - GSA 28 Installation
Rev. AC Page 17-41

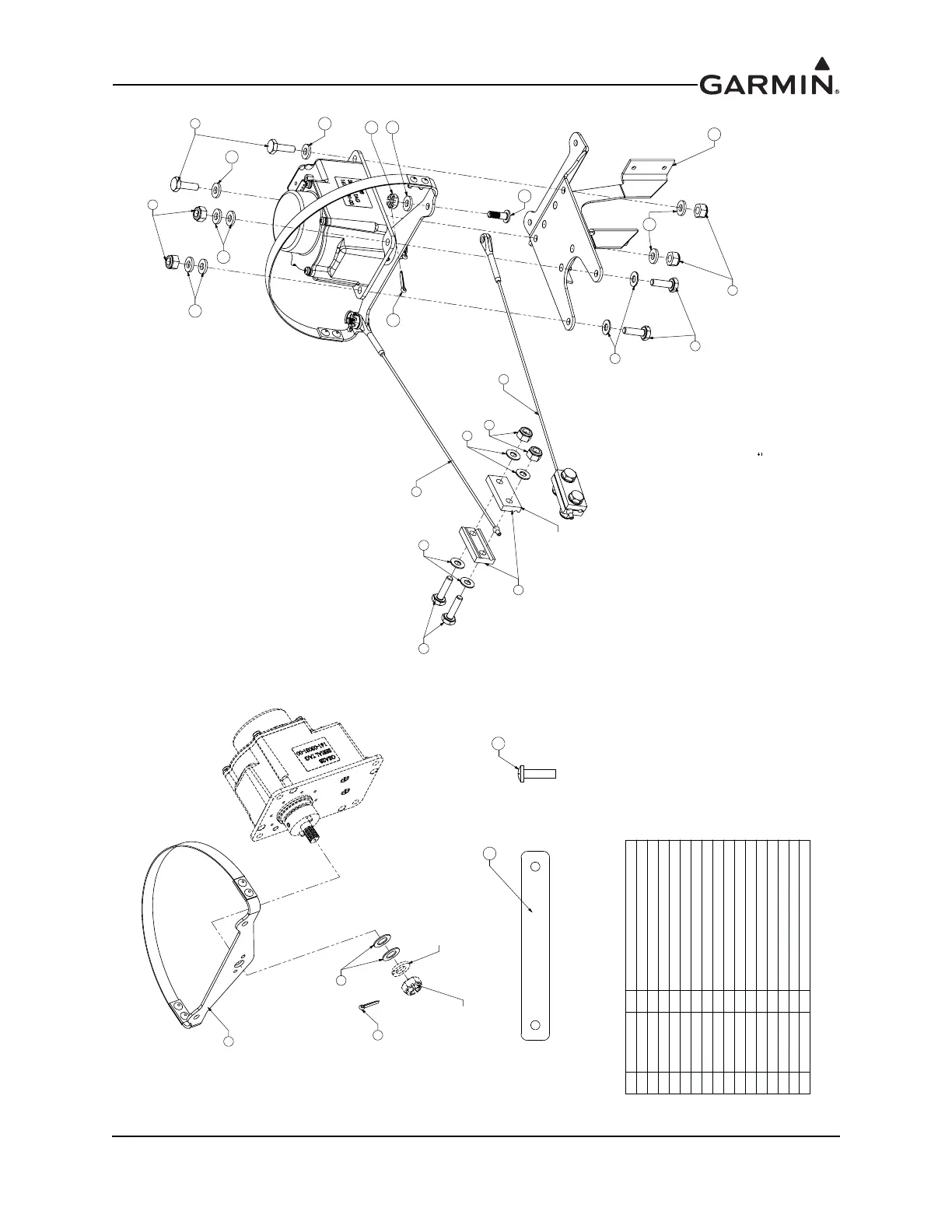

Figure 17-15.1 GSA 28 RV-10 Yaw Mounting Kit 011-02952-16 (page 1 of 3)
AN310-5 CASTLE NUT GPN: 210-00050-01 SEE NOTE 2
5/16 SPLIT LOCK WASHER GPN: 212-00018-08 SEE NOTE 2
1
2
NOTES:
GSA28 IS PROVIDED WITH STANDARD CRANK ARM. FOR THE RV-10 YAW INSTALLATION, THIS PART MUST
1.
BE REMOVED AND REPLACED WITH ITEM 3. CASTLE NUT AND 5/16 LOCK WASHER ARE NOT INCLUDED IN SERVO MOUNTING KIT. THESE PARTS ARE
2.
INCLUDED WITH GSA28 AND MUST BE RE-USED. TO INSTALL ITEM 3: REMOVE COTTER PIN, CASTLE NUT, 5/16 LOCK WASHER, AN960-516L WASHER, AND
3.
STANDARD CRANK ARM. INSTALL ITEM 3 SUCH THAT HOLE AND SLOT MATE WITH ALIGNMENT PINS ON GSA28 OUTPUT HUB. INSTALL TWO AN960-516L WASHERS, LOCK WASHER, AND CASTLE NUT. TIGHTEN CASTLE NUT UNTIL LOCK WASHER IS FULLY COMPRESSED, BUT DO NOT TIGHTEN TO MORE THAN 20 IN-LBS. THEN LOOSEN UNTIL ADJACENT CASTELLATION LINES UP WITH HOLE IN OUTPUT SHAFT. INSTALL NEW COTTER PIN (SUPPLIED IN MOUNTING KIT). UNLESS OTHERWISE SPECIFIED, TIGHTEN ALL AN365-1032A NUTS (ITEM 8) TO 34- 46 IN-LBS (40 IN-LBS
15%).
4.
TIGHTEN MS17826-3 NUT (ITEM 14) UNTIL CASTELLATION LINES UP WITH HOLE IN CLEVIS BOLT (ITEM 12) AND
5.
INSTALL MS24665-132 COTTER PIN (ITEM 13). FORK END OF BRIDLE CABLE (ITEM 7) MUST BE FREE TO ROTATE RELATIVE TO ITEM 3. SMALL RADIUS OF BRIDLE CABLE CLAMPS (ITEM 6) SHOULD MATE WITH BRIDLE CABLES (ITEM 7). LARGE
6.
RADIUS OF BRIDLE CABLE CLAMPS MATE WITH YAW CONTROL CABLES. SEE SHEET 3 FOR DETAILS.
3
45
6
7
5
8
7
9
5
8
10
12
10 14
13
9
10
10
10
10
8
SEE NOTE 6
11
SEE SHEET 2
ITEM
GARMIN P/N
QTY
DESCRIPTION
1
231-00037-04
1
COTTER PIN, MS24665-208
2
212-00043-31
2
WASHER, AN960-516L
3
115-01854-11
1
GSA28 ATTACHMENT, RV-10 YAW
4
211-00090-06
4
BOLT, AN3-6A
5
212-00043-10
10
WASHER (THIN), AN960-10L
6
117-00164-02
4
BRIDLE CABLE CLAMP
7
233-20027-00
2
BRIDLE CABLE, RV-10 YAW
8
210-00117-03
8
LOCK NUT, AN365-1032A
9
211-00090-01
4
BOLT, AN3-5A
10
212-00035-10
10
WASHER, AN960-10
11
115-01854-10
1
MOUNTING BRACKET, RV-10 YAW
12
211-00306-09
2
BOLT, CLEVIS, AN23-9
13
231-00037-05
2
COTTER PIN, MS24665-132
14
210-00134-03
2
CASTLE NUT, MS17826-3
15
115-01854-12
1
SPACER, RV-10 YAW BRACKET
16
211-A0010-46
4
SCREW, MS51957-46
15
SEE SHEET 2
SCALE 1:1
16
SEE SHEET 2
