190-01115-01 G3X/G3X Touch Installation Manual - Connector Installation Instructions

Rev. AC Page 24-8

NOTE

In Figure 24-6, “AR” denotes quantity “As Required” for the particular installation.

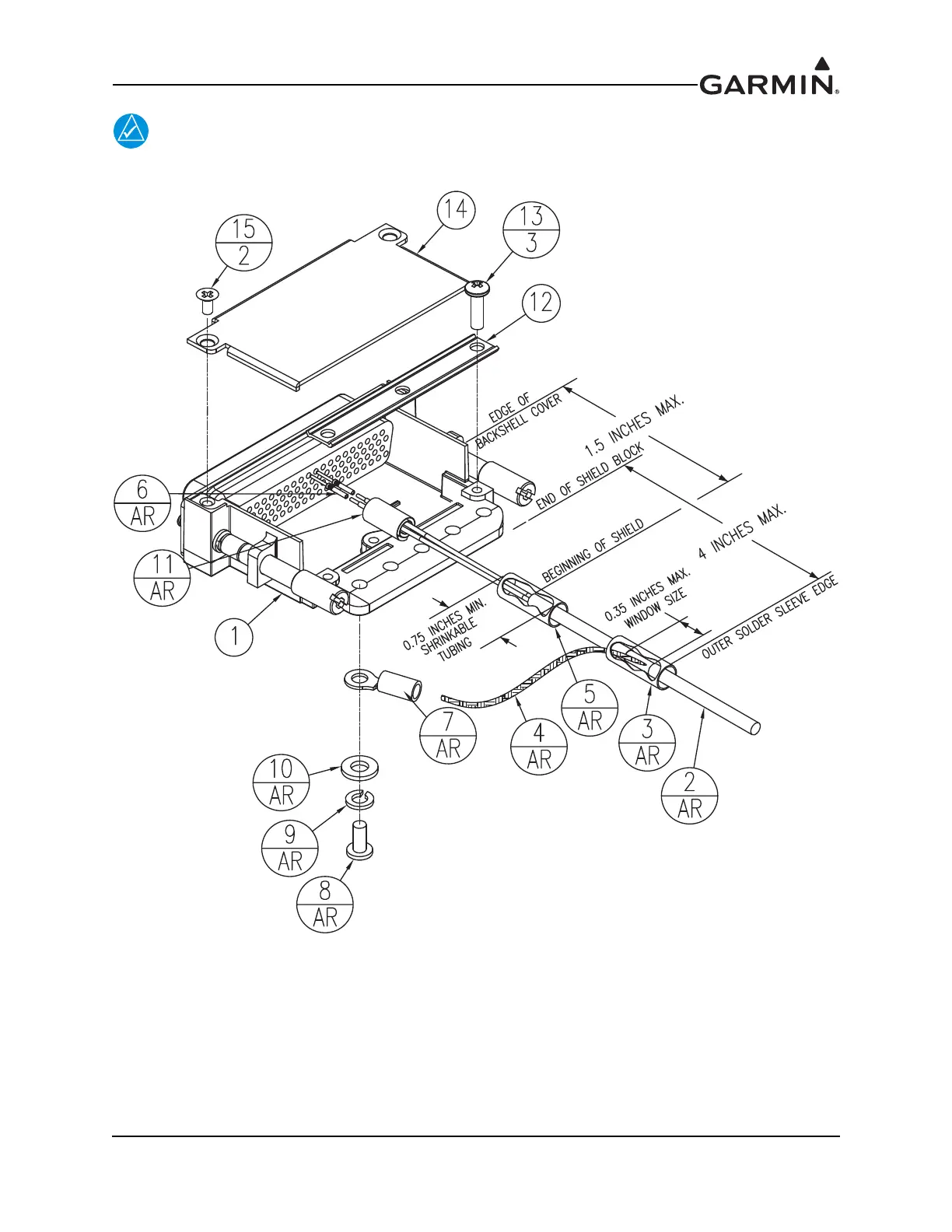

Figure 24-6 Shield Install onto a Jackscrew Backshell (78 pin example)
