Garmin G3X Touch Installation Manual

190-01115-01 G3X/G3X Touch Installation Manual - GSA 28 Installation
Rev. AC Page 17-21

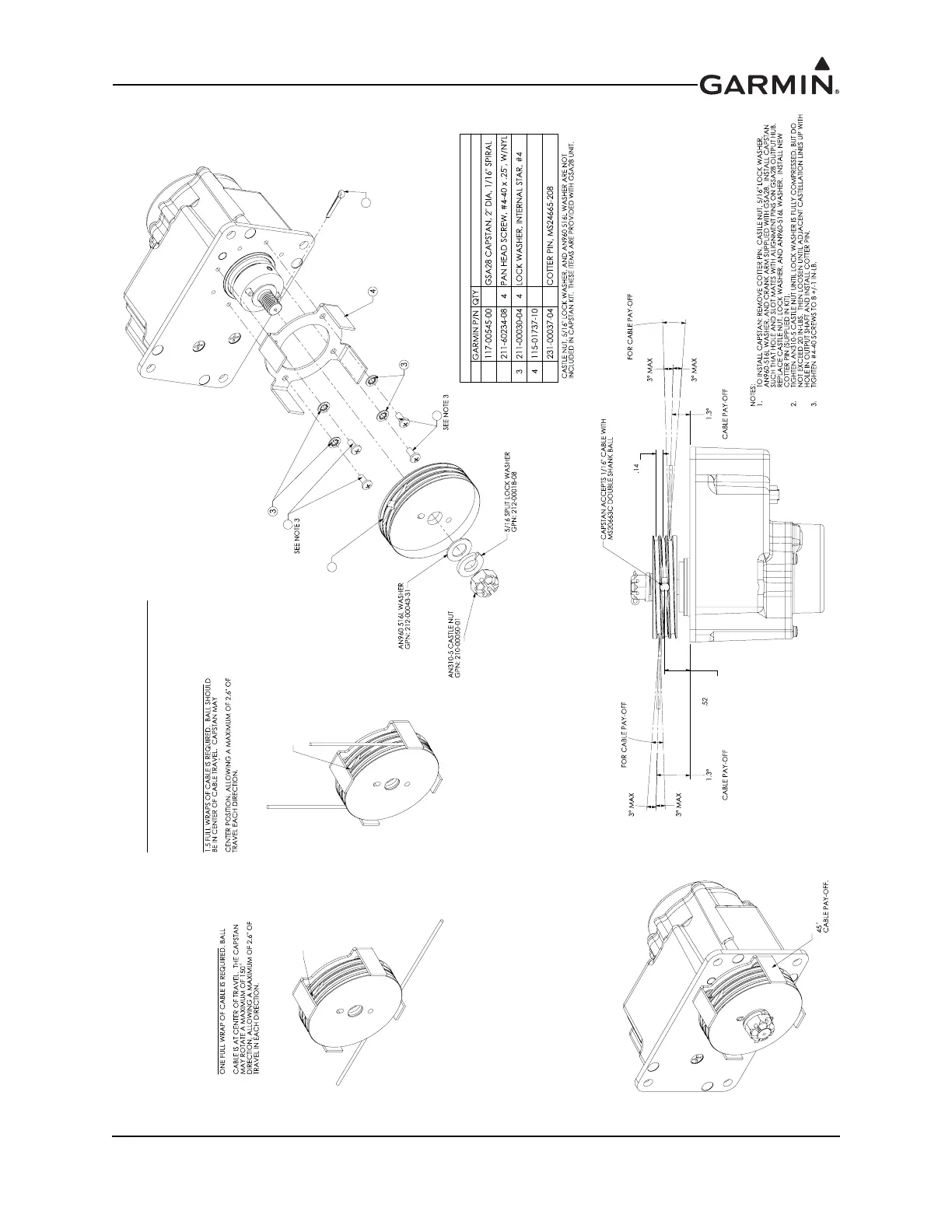

Figure 17-8.4 GSA 28 with Capstan Kit and Cable Instructions (011-02952-02)
SEE NOTE 2
GSA28 WITH CAPSTAN KIT 011-02952-02
1
2
2
5
CABLE GUARD CAN BE ROTATED
TO ALLOW FOR ALTERNATE
BOTH CABLES EXITING CAPSTAN IN SAME DIRECTION
ROTATE A MAXIMUM OF 150
EITHER DIRECTION FROM
BALL
CABLE EXITING IN OPPOSITE DIRECTION
SHOULD BE IN CENTER OF CABLE WRAP WHEN
IN EITHER
BALL
FRONT OF
FLANGE TO
CENTER OF BALL
PITCH
NOMINAL
ACCEPTABLE RANGE
NOMINAL
ACCEPTABLE RANG
ITEMS INCLUDED IN 011-02952-02
ITEM
DESCRIPTION
1 1 2
1
GSA28 CABLE GUARD
5 1

Garmin G3X Touch Specifications

General

Power Input	10-32 VDC
Touchscreen	Yes
Built-in GPS	Yes
AHRS	Yes
Air Data Computer	Yes
Aviation Database	Yes
Terrain Awareness	Yes
Operating Temperature	-20°C to +55°C
Display Size	10.6 inches
Display Type	LCD
Connectivity	Wi-Fi, Bluetooth, USB, RS-232, CAN bus
Engine Monitoring	Yes
Autopilot Compatibility	Yes
Traffic Awareness	Yes
Weather Data	Yes
