190-01115-01 G3X/G3X Touch Installation Manual - Airframe Specific Installation Guidance

Rev. AC Page A-11

7. With the GMU 22 mount setup for installation in the right wing, shift the bracket to the minus 2

degree setting and rivet it in place using six 1/8" button head rivets as illustrated in Figure A-12.

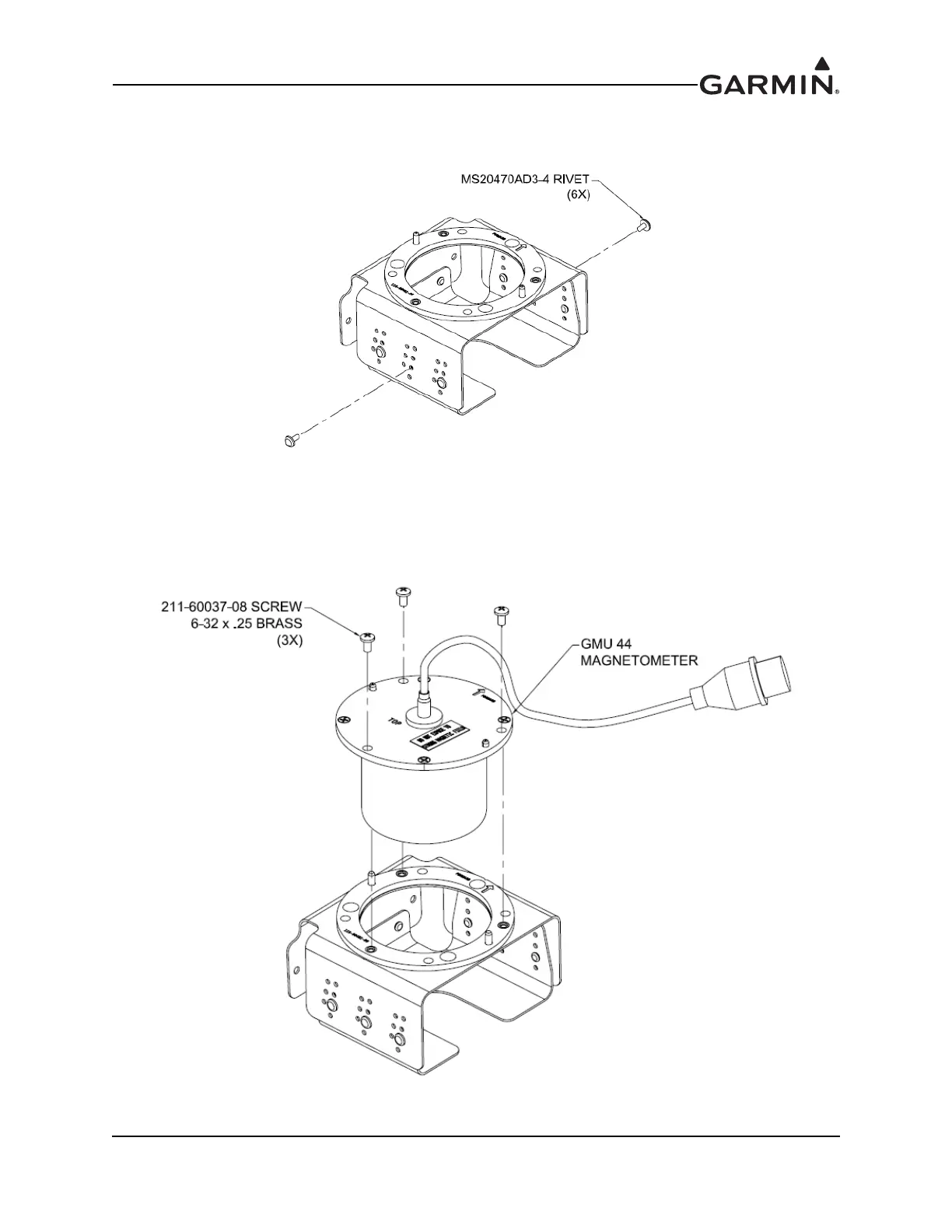

Figure A-12 Rivet shifted Magnetometer Mount

8. Attach the GMU 22 to the GMU 22 Mounting Bracket as illustrated in Figure A-13 using brass

screws.

Figure A-13 Secure GMU 22 to the Mounting Bracket Assembly
