Garmin G3X Touch Installation Manual

190-01115-01 G3X/G3X Touch Installation Manual - GMC 307 Installation
Rev. AC Page 13-6

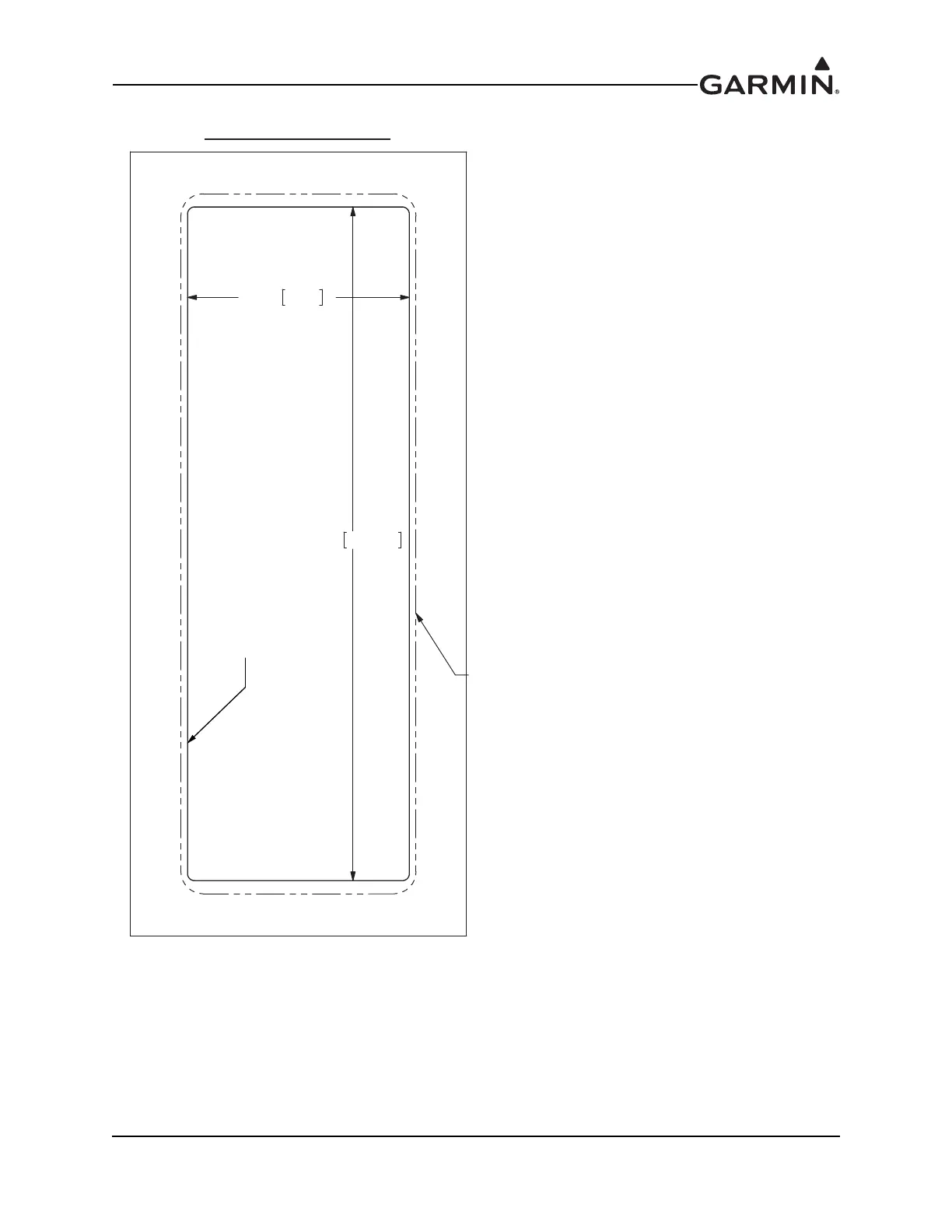

Figure 13-6 GMC 307 Panel Cutout Template
NOTES:
1. DIMENSIONS: INCHES [mm]. METRIC VALUES ARE FOR REFERENCE ONLY.
2. TOLERANCES: INCH mm
.XX ±.02 .X ±0.5
.XXX ±.010 .XX ±0.25
50.31.98
6.015 152.78
BEZEL OUTLINE
(REF.)
IMPORTANT!
ENSURE THE PAGE SCALING SETTING IS SET TO NONE
WHEN PRINTING THIS PAGE. VERIFY DIMENSIONS OF
PRINTED TEMPLATE ARE ACCURATE BEFORE CUTTING
PANEL.
GMC 307 PANEL CUTOUT
CUT OUT PANEL
TO INSIDE LINE

Garmin G3X Touch Specifications

General

Power Input	10-32 VDC
Touchscreen	Yes
Built-in GPS	Yes
AHRS	Yes
Air Data Computer	Yes
Aviation Database	Yes
Terrain Awareness	Yes
Operating Temperature	-20°C to +55°C
Display Size	10.6 inches
Display Type	LCD
Connectivity	Wi-Fi, Bluetooth, USB, RS-232, CAN bus
Engine Monitoring	Yes
Autopilot Compatibility	Yes
Traffic Awareness	Yes
Weather Data	Yes
