9. Go to the AP page in configuration mode and navigate to the Roll Servo sub-section to configure
the servo direction.
a) The Servo Direction should be set to Normal. The servo arm should move clockwise to
cause a bank left aileron movement and the servo arm should move counterclockwise to
cause a bank right aileron movement.

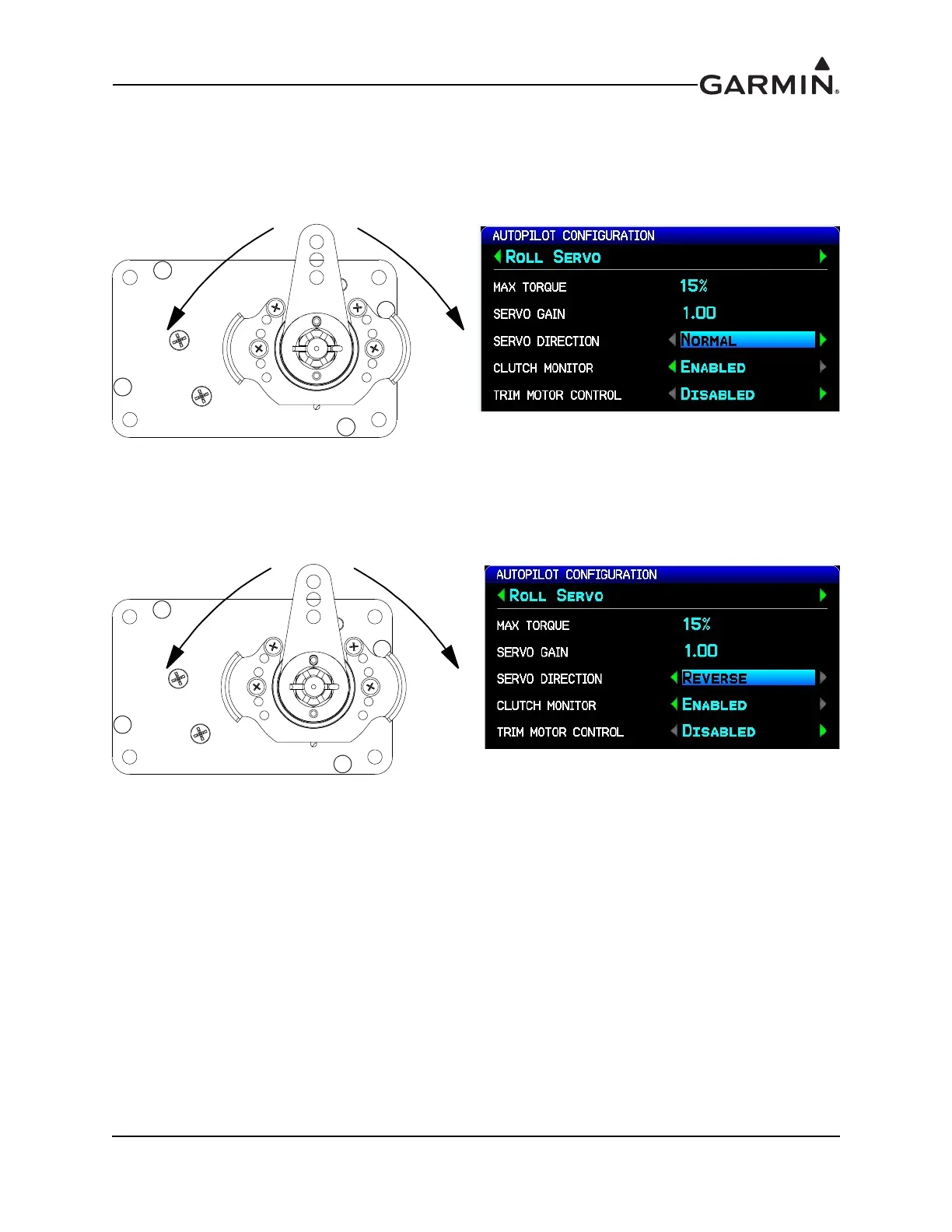

Figure 33-5 Normal Roll Servo Direction
b) The Servo Direction should be set to Reverse. The servo arm should move clockwise to
cause a bank right aileron movement and the servo arm should move counterclockwise to
cause a bank left aileron movement.
Figure 33-6 Reversed Roll Servo Direction
BANK LEF
T
BANK RIGHT
BANK LEFT BANK RIGH
T
