190-01115-01 G3X/G3X Touch Installation Manual - GDU 37X Config and Post Install Checkout

Rev. AC Page 33-83

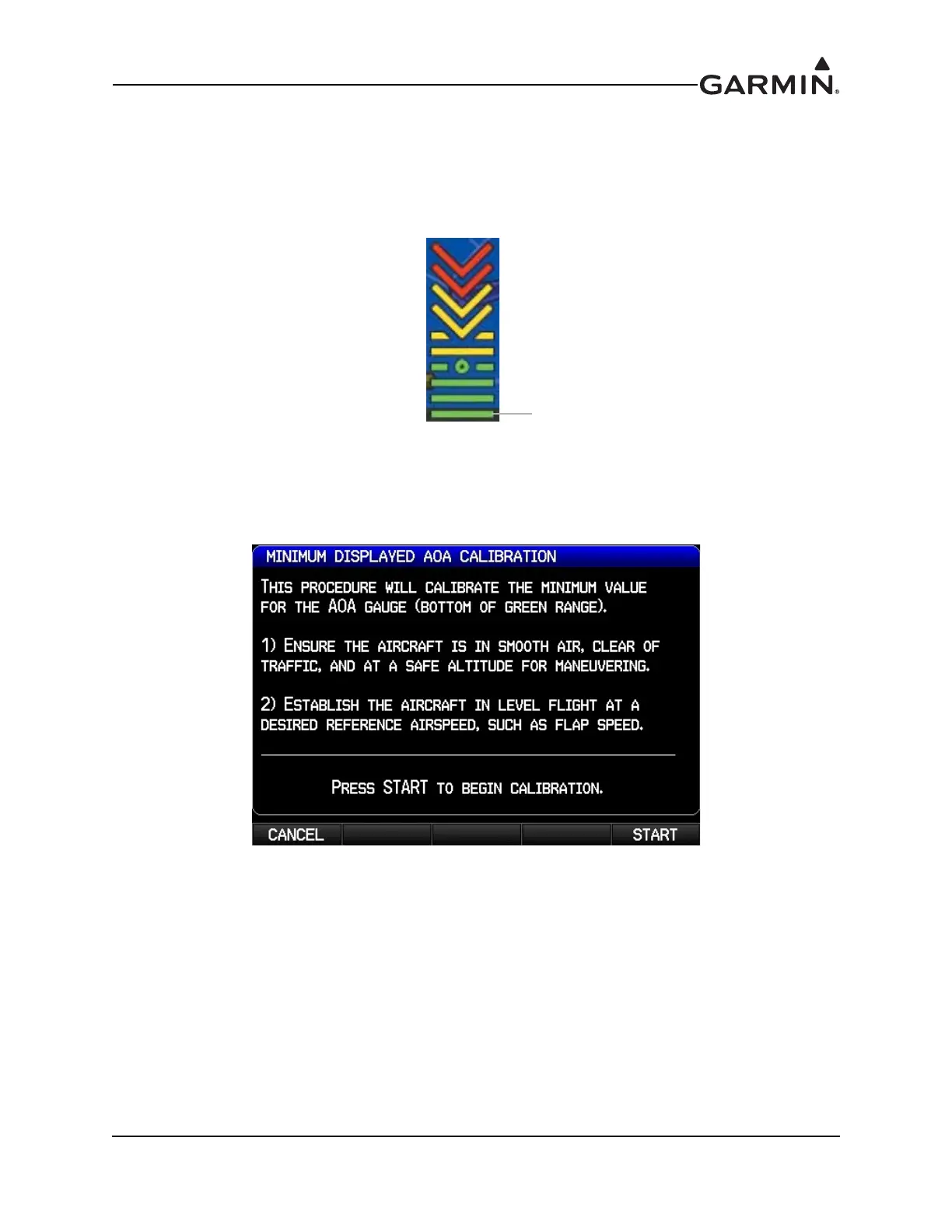

Minimum Visible AOA Calibration

This procedure sets the AOA value for the bottom of the AOA gauge green arc (Figure 33-26), which is

also the AOA value at which the gauge will first appear on the PFD. Perform this calibration while flying

the aircraft at an AOA somewhat higher than a normal cruise flight (1.5 x stall speed is suggested) to avoid

nuisance frequent appearances of the AOA gauge.

Figure 33-26 Minimum Visible AOA

1. Use the FMS Joystick to select the Calibrated Minimum Visible AOA calibration field, then press

the Calibrate softkey

2. Follow the onscreen instructions, then press the Start softkey to begin the calibration.

Minimum

Visible AOA
