190-01115-01 G3X/G3X Touch Installation Manual - Connector Installation Instructions

Rev. AC Page 24-3

NOTE

Refer to Figure 24-3 for all item numbers in the following steps 2-5.

2. Insert newly crimped pins and wires (items 1 & 2) into the appropriate connector housing (item 4)

location as specified by the installation specific wiring diagram.

3. Place thermocouple (item 1) body onto backshell (item 5) boss. Upon placing the thermocouple

(item 1) body, orient it such that the wires exit downward.

4. Attach thermocouple (item 1) tightly to backshell (item 5) using screw (item 3).

5. Attach cover (item 6) to backshell (item 5) using screws (item 7).

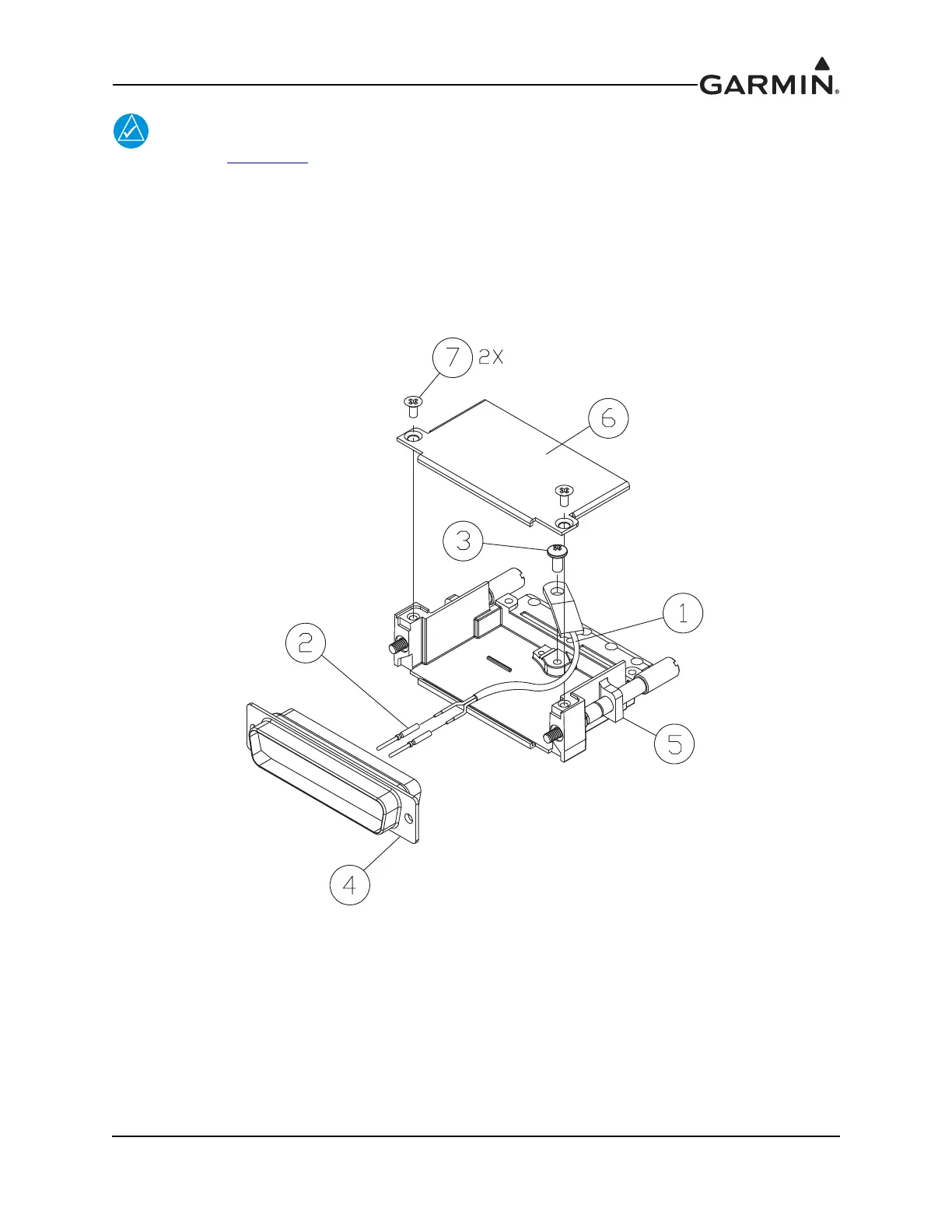

Figure 24-3 Jackscrew Backshell Thermocouple Installation
