190-01115-01 G3X/G3X Touch Installation Manual - GDU 37X Config and Post Install Checkout

Rev. AC Page 33-80

AOA is the angle between the aircraft's wing and the oncoming airflow (see Figure 33-24). As AOA

increases, eventually it will reach a critical value (determined by the physical characteristics of the wing),

whereupon the airflow will separate, the wing will stop producing lift, and the aircraft will stall. The

primary purpose of an AOA system is to monitor the wing's angle of attack and provide feedback to the

pilot when the aircraft is approaching the critical AOA.

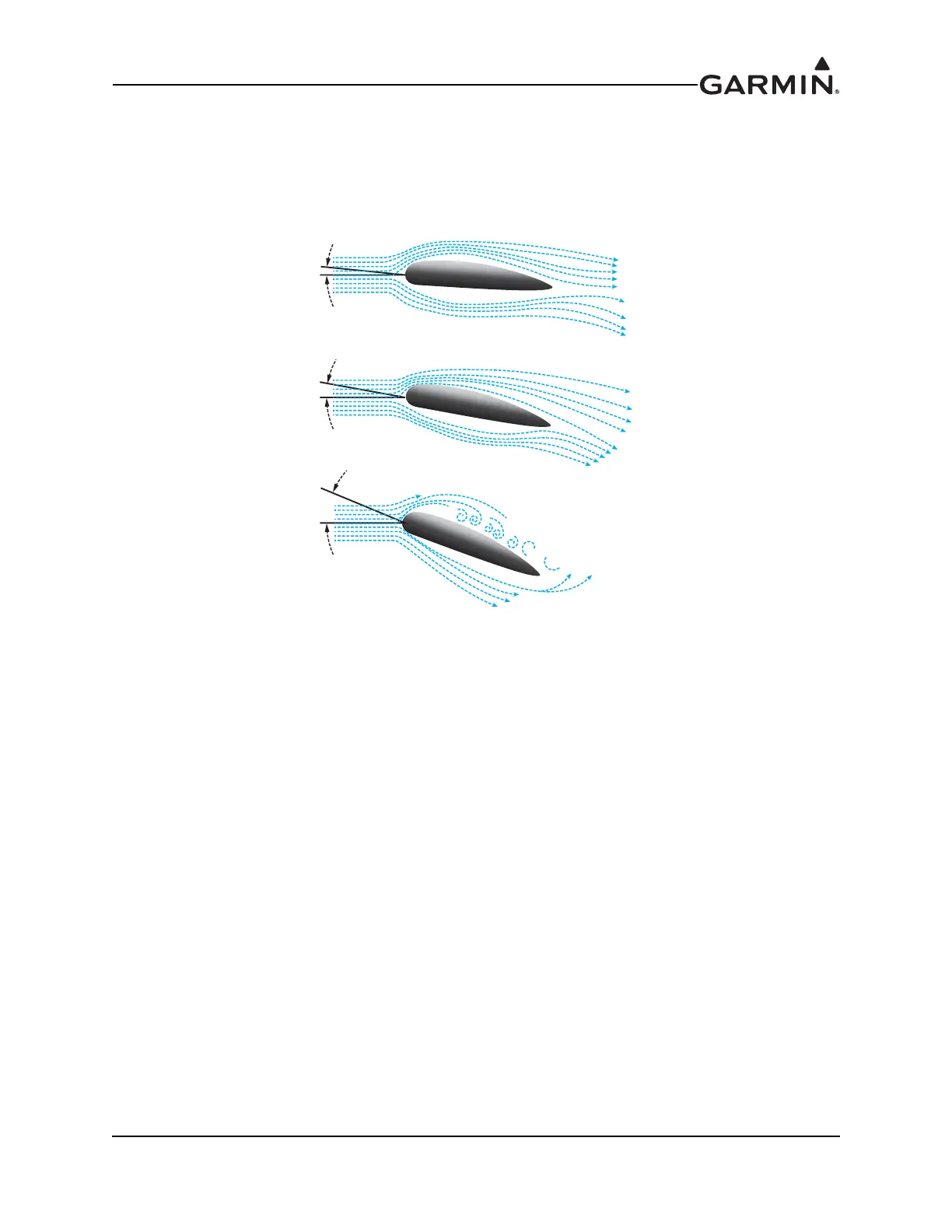

Figure 33-24 Angle of Attack (AOA) Illustration

LOW ANGLE OF ATTACK

MEDIUM ANGLE OF ATTACK

EXCESSIVE ANGLE OF ATTACK

Air Flow is Broken.

No Lift to Sustain

the Airplane.
