190-01115-01 G3X/G3X Touch Installation Manual - Rotax Sensor Wiring Examples

Rev. AC Page 31-4

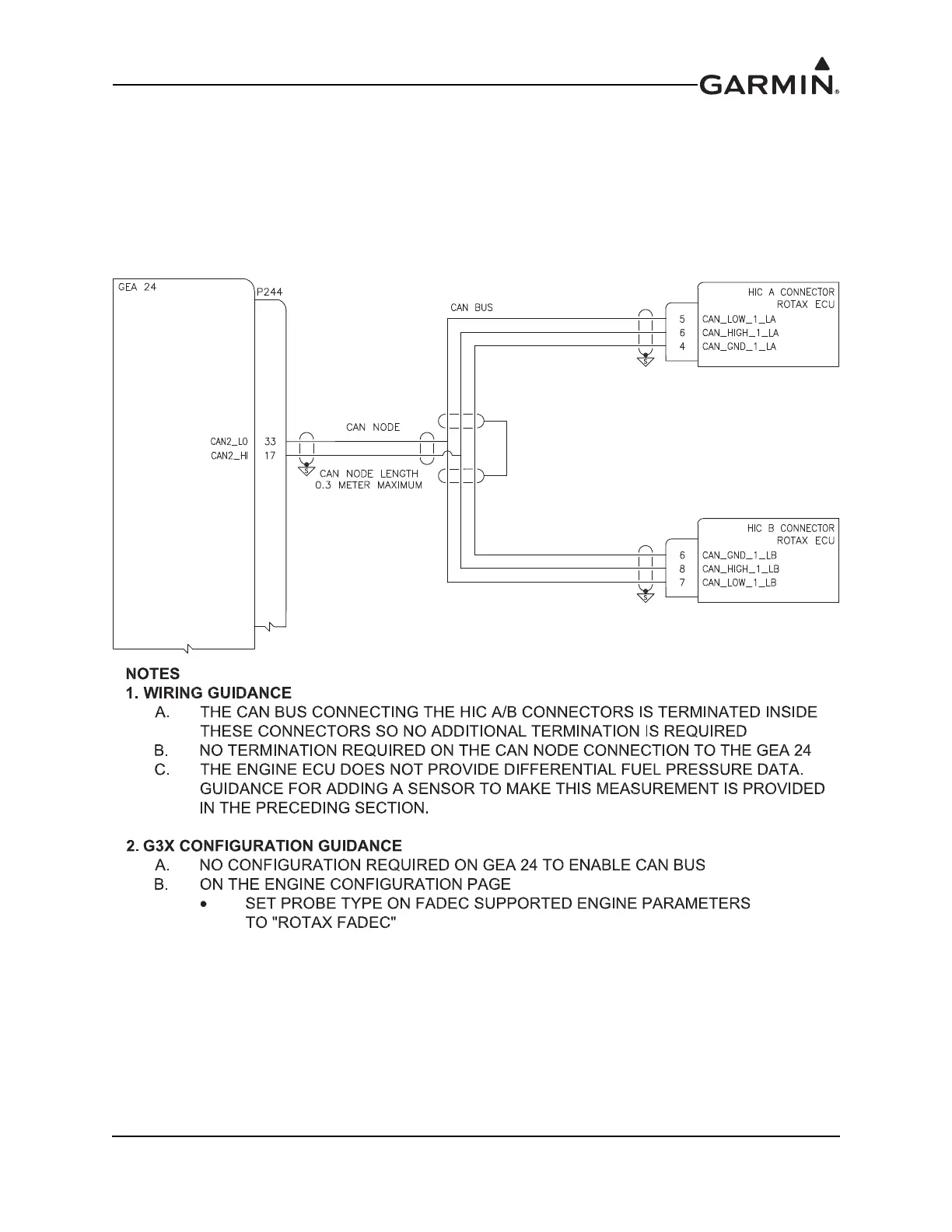

Figure 31-2.2 GEA 24 - Rotax 912iS/915iS FADEC Wiring Example
