190-01115-01 G3X/G3X Touch Installation Manual - GSU 25/25B Installation

Rev. AC Page 18-2

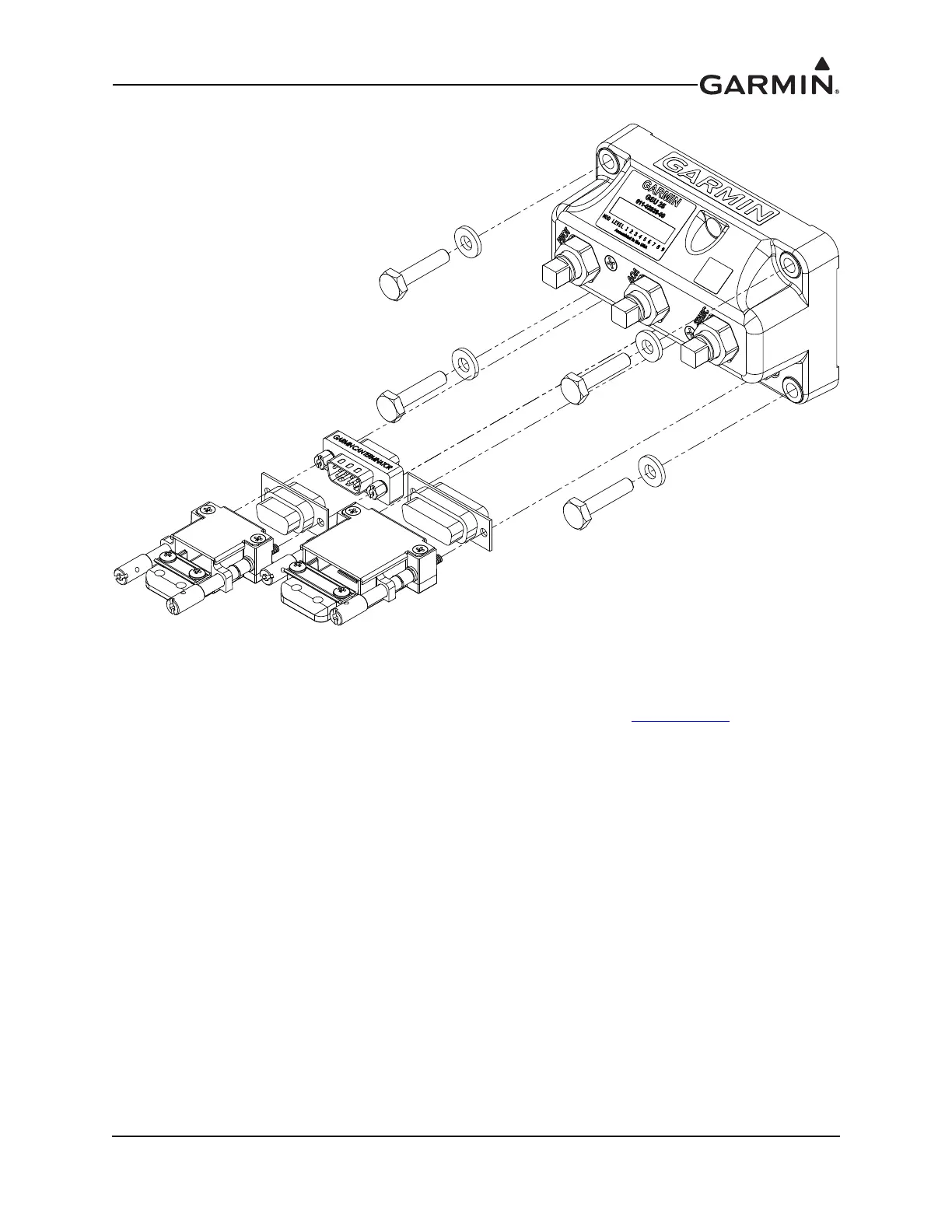

Figure 18-1 GSU 25 Unit View

18.1.1 Status LED

The GSU 25 has an LED on the outer case that indicates current status. See Section 35.1.1

for details.

P251

P252
