190-01115-01 G3X/G3X Touch Installation Manual - Airframe Specific Installation Guidance

Rev. AC Page A-16

5. Secure the shelf to the fuselage with one layer of 3.0 in. wide, 2 bid strips at each corner above and

below the shelf. The lay up is shown in Figure A-23.

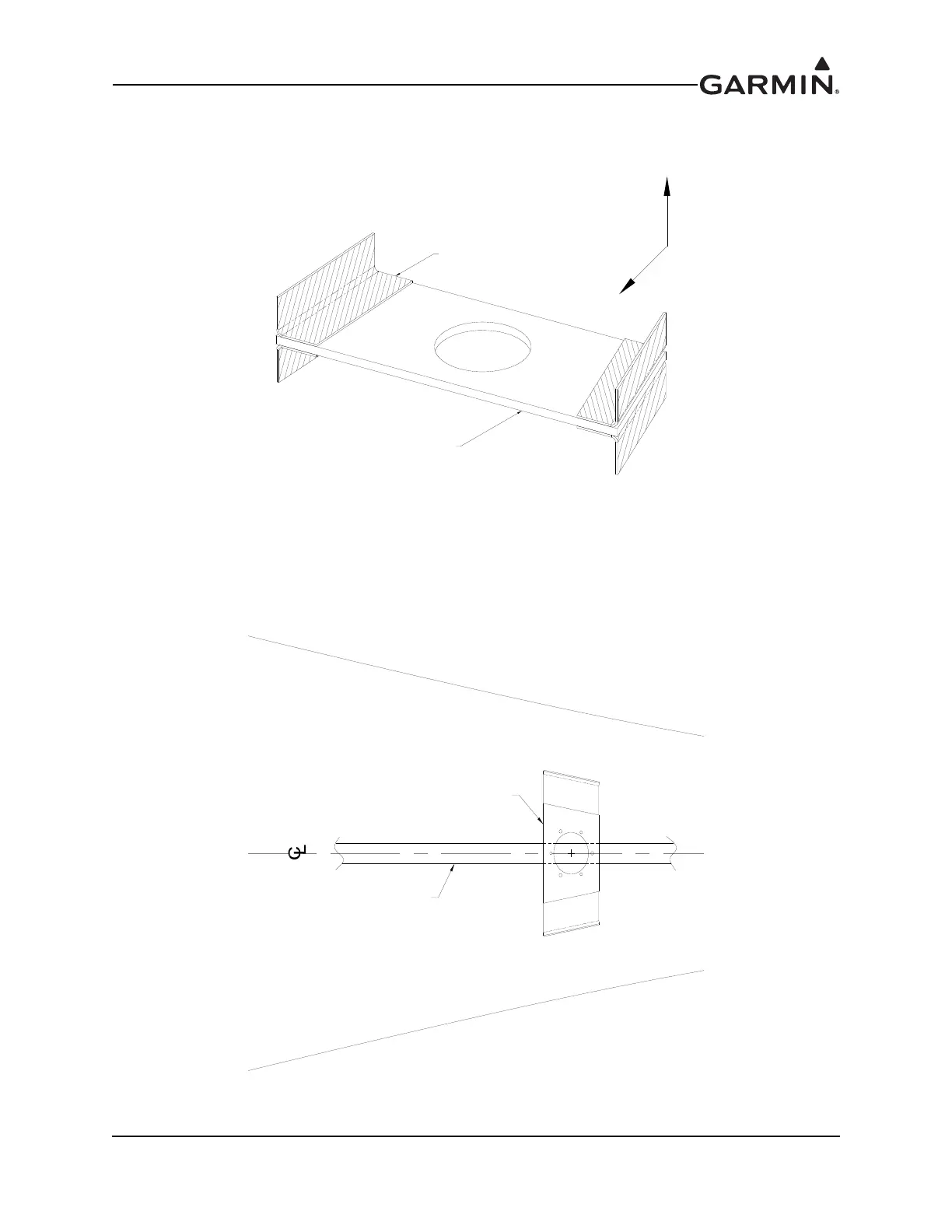

Figure A-23 Magnetometer Shelf With Lay up

6. The shelf installation must be fully cured before proceeding with the magnetometer installation.

Using the elevator control tube as the aircraft centerline reference, project a parallel line on to the

magnetometer shelf. The parallel line serves as an indication of the aircraft’s forward direction, as

shown in Figure A-24. The alignment of the magnetometer is critical and needs to be within 0.5°

of the aircraft’s forward direction.

Figure A-24 Alignment Of Magnetometer Cutout With Aircraft’s Forward Direction

MAGNETOMETER SHELF

3" WIDE, 2 BID STRIPS, 4 PLACES

FWD

ELEVATOR CONTROL TUBE

MAGNETOMETER SHELF
