190-01115-01 G3X/G3X Touch Installation Manual - Airframe Specific Installation Guidance
Rev. AC Page A-6
1. Rivet the GMU 22 Installation Rack (115-00481-X0) to the Top Bracket Assembly
(115-01052-00) as shown in Figure A-4.

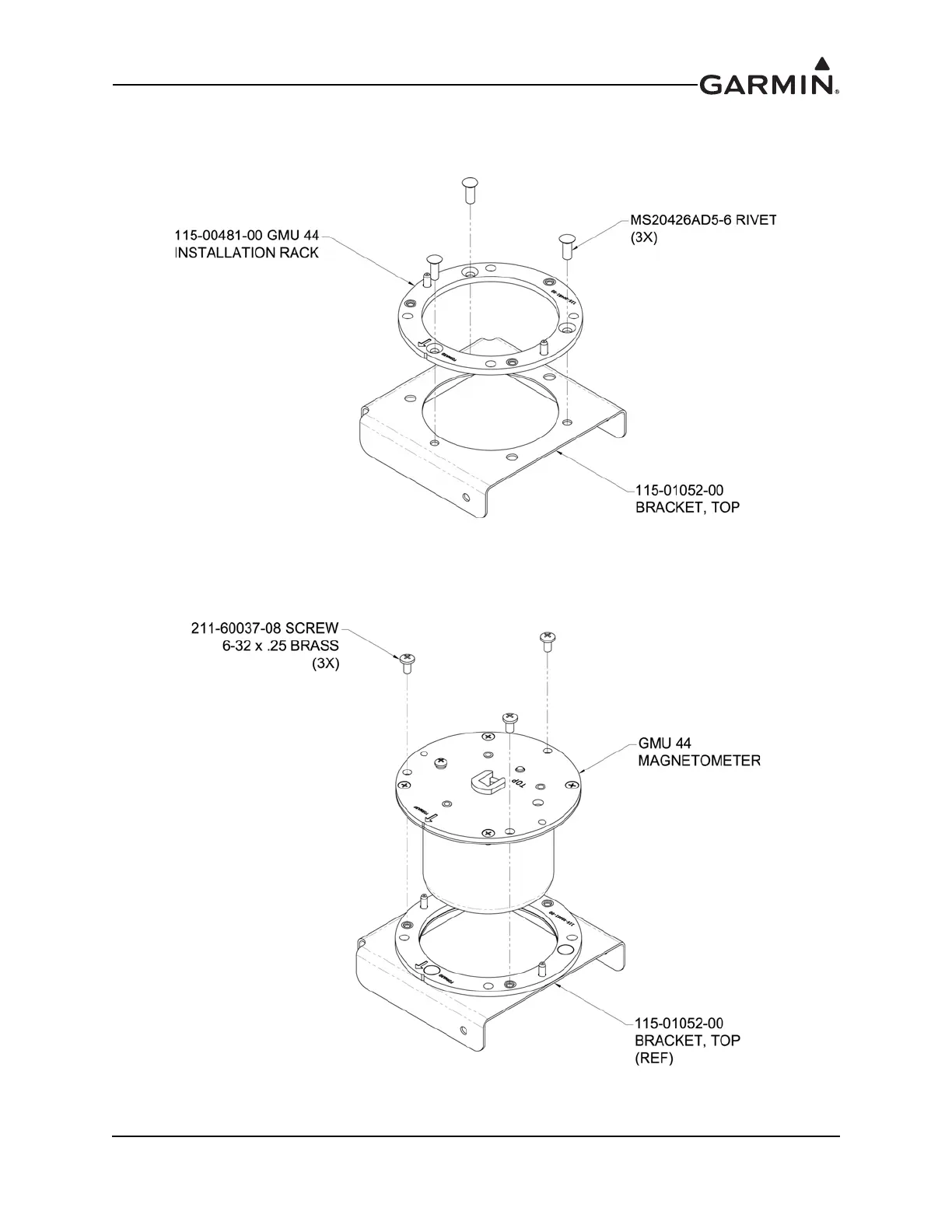

Figure A-4 Lancair IV/IV-P GMU 22 Mounting Bracket
2. Attach the GMU 22 to the Top Bracket Assembly (115-01052-00) using screws (211-60037-08) as
shown in Figure A-5.
Figure A-5 Lancair IV/IV-P GMU 22 Mounting Bracket
