190-01115-01 G3X/G3X Touch Installation Manual - Sensor Wiring Examples

Rev. AC Page 29-7

29.3 Sensor Wiring Examples w/GSU 73

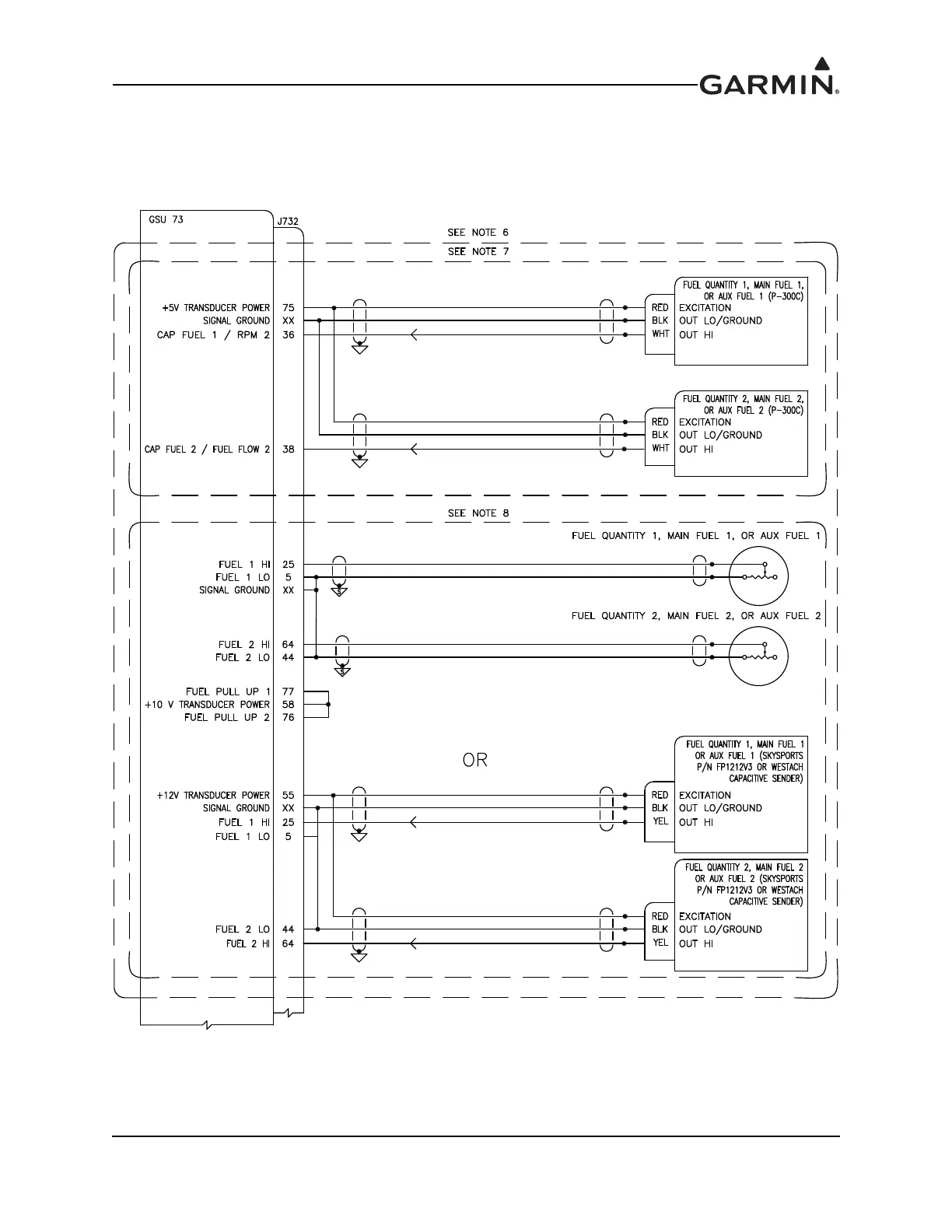

Figure 29-3.1 Page 1 of 2 Fuel Quantity and Fuel Flow Examples (w/GSU 73)
