190-01115-01 G3X/G3X Touch Installation Manual - GPS 20A Installation

Rev. AC Page 16-4

16.9 Outline and Installation Drawings

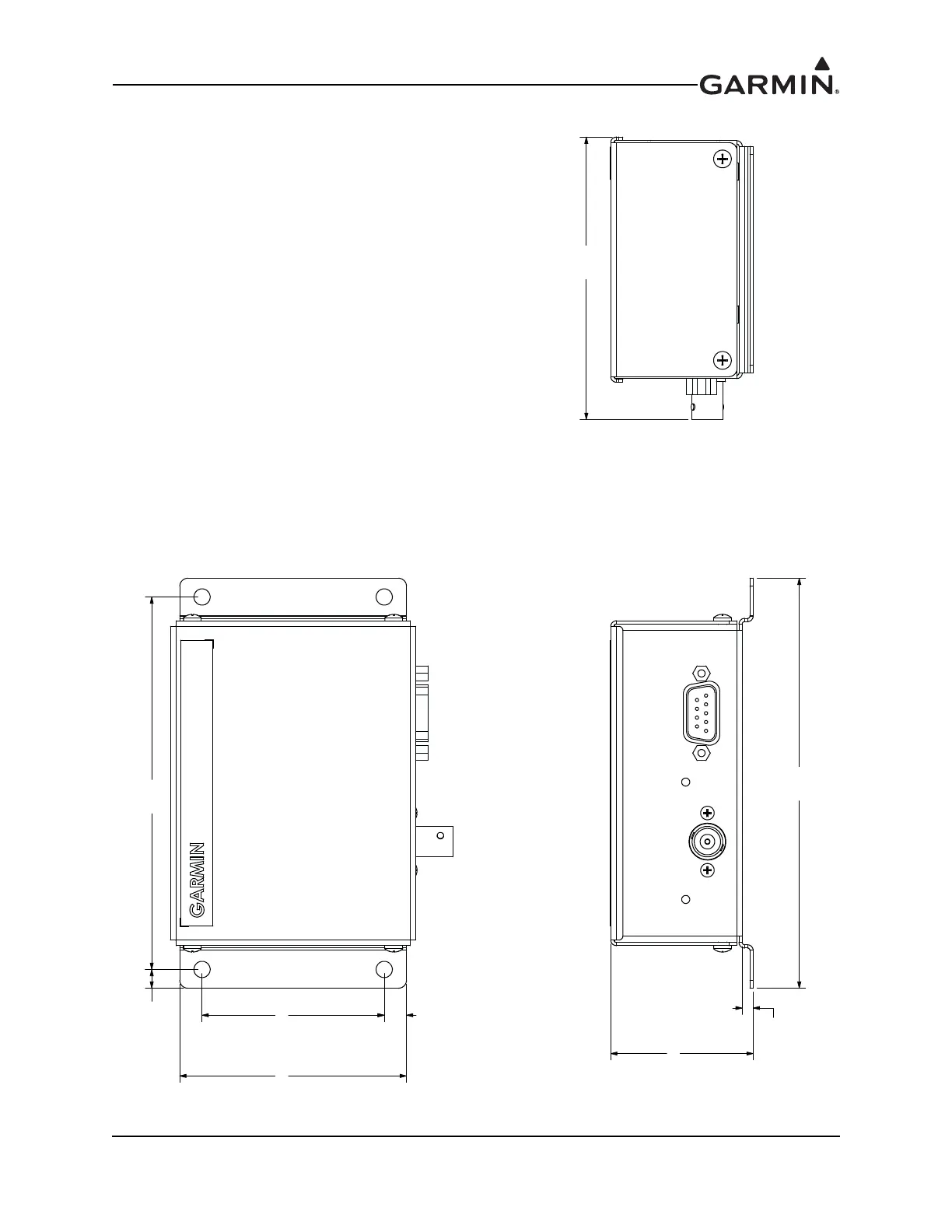

Figure 16-2 GPS 20A Outline Drawing

5.064

.135

1.759

3.488

2.250

4.600

2.800

.275

.232
