190-01115-01 G3X/G3X Touch Install Manual - GDU 4XX Config and Post Install Checkout
Rev. AC Page 34-138
34.4.26.3 EIS Configuration Options
Many of the items listed in the Engine/Airframe Input Configuration section of the Engine Configuration
Page have the same (or similar) configuration options, this section describes those similar configuration
options.
Gauge Configuration – Nearly all of the configuration options (except Discrete Inputs, Engine Time, &
Total Time) have a Gauge Marking and a Gauge Display Range section. These gauge options are uniform
for all applicable items and are described below.

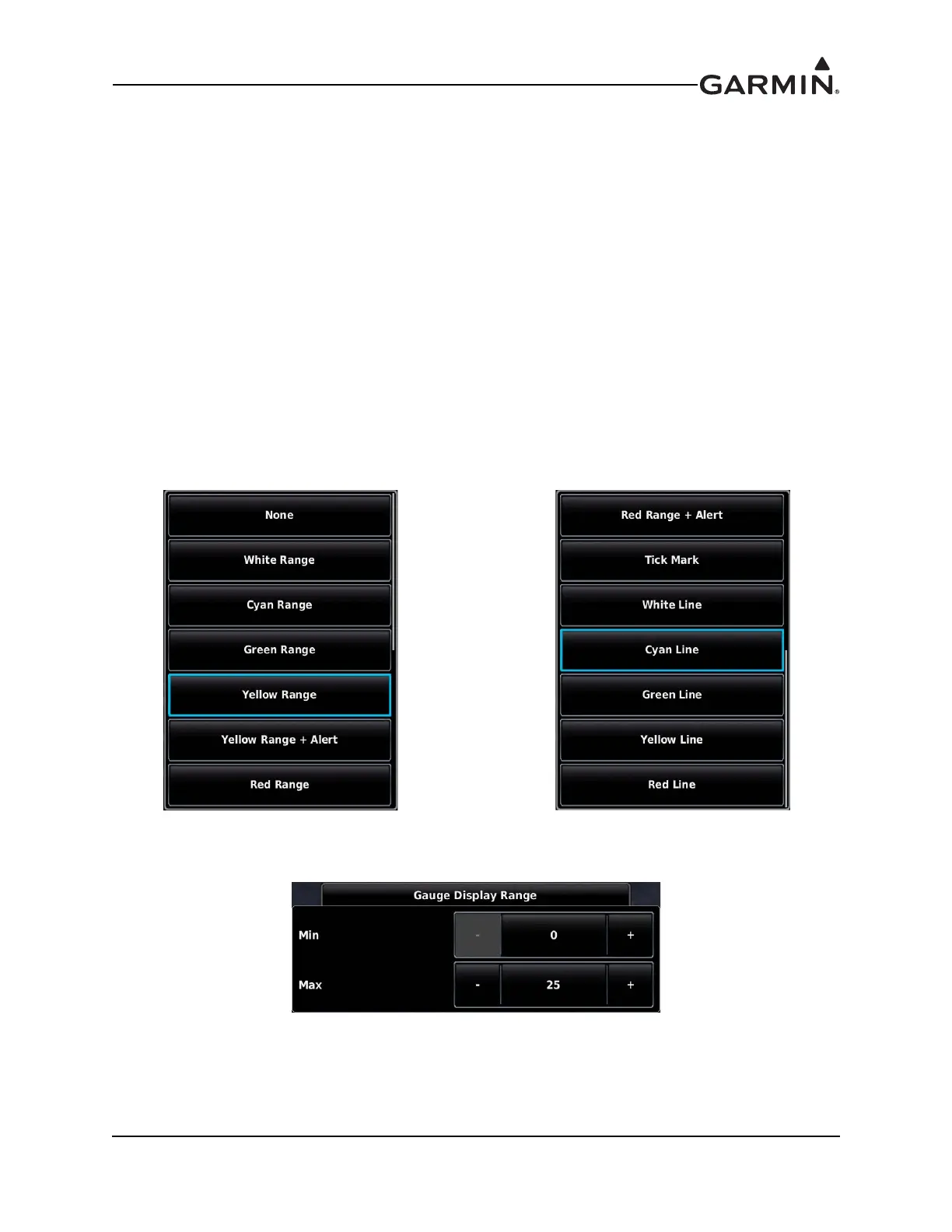

Gauge Markings – Used to select the desired color displayed on the applicable gauge. The Yellow Range
+ Alert and Red Range + Alert settings will issue a CAS (Crew Alerting System) on-screen alert anytime
the value is within that range. The Red Range + Alert settings will issue a CAS audible and on-screen alert
anytime the value is within that range The following are the available gauge marking options:
White Range Cyan Range Green Range Yellow Range
Yellow Range +Alert Red Range Red Range + Alert Tick Mark
White Line Cyan Line Green Line Yellow Line
Red Line
Gauge Display Range – The Gauge Display Range allows for setting the minimum and maximum values
of each gauge.
