Rev. AC Page 17-35
4
4
4
2
2
15
2
2
2
2
2
3
1
1
1
1
5
6
7
SEE DETAIL A

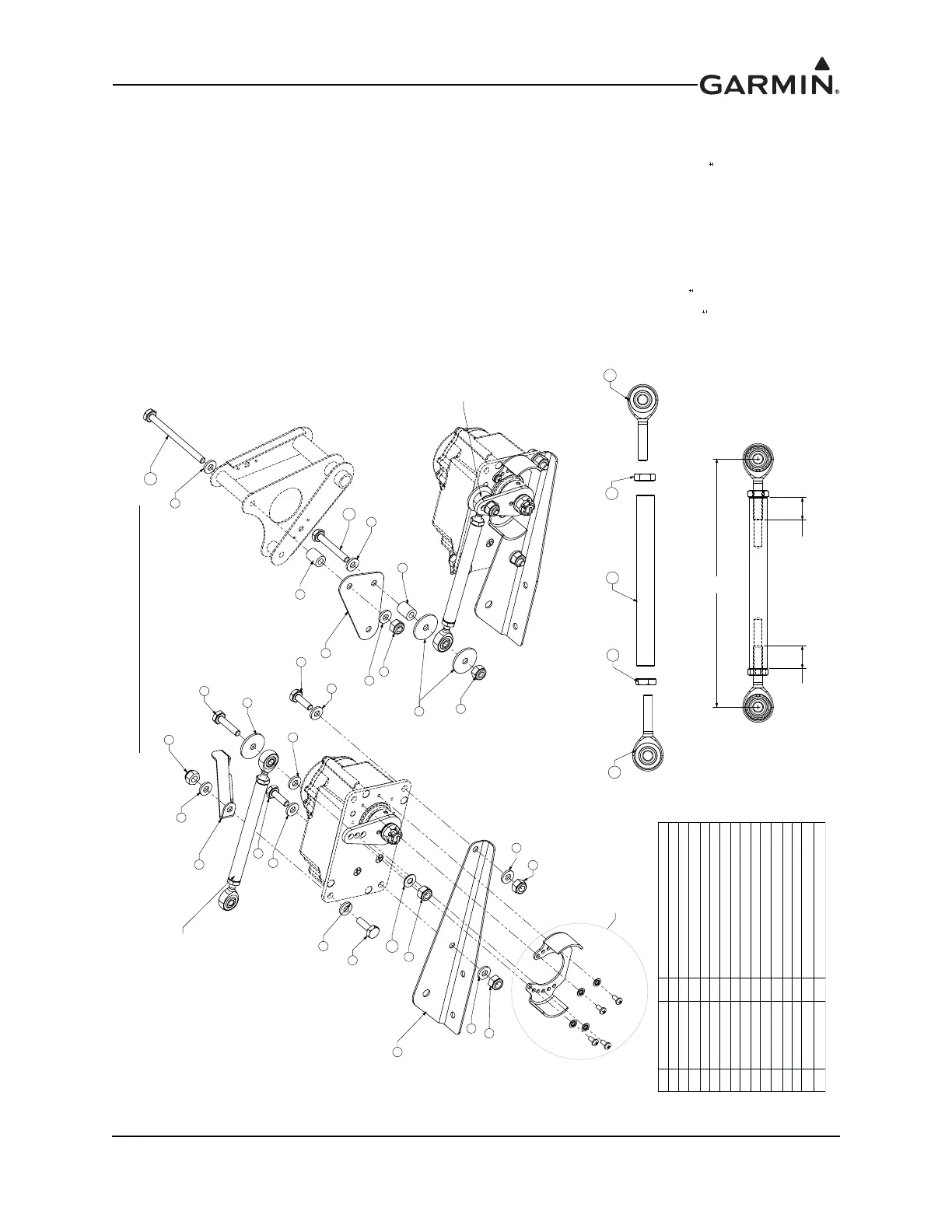

RV-9 RIGHT WING ROLL MOUNTING KIT
GARMIN PART NUMBER 011-02952-13
011-02951-00
STOP BRACKET KIT
(INCLUDED WITH GSA28)
SEE NOTE 5
1
4
8
9
8
10
2
2
6
2
11
NOTES:
DIMENSIONS: INCHES
1.
DIMENSIONS ARE NOMINAL AND TOLERANCES ARE NOT IMPLIED
2.
UNLESS SPECIFICALLY STATED.
TIGHTEN ALL AN365-1032A LOCK NUTS (ITEM 1) TO 34 - 46 IN-LBS
3.
(40 IN-LBS
15%).
TIGHTEN AN315R JAM NUTS (ITEM 12) TO 14 - 20 IN-LBS
4.
(17
3 IN-LBS).
TIGHTEN #4-40 SCREWS FOR STOP BRACKET TO 8
1 IN-LBS.
5.
THREAD ENGAGMENT BETWEEN ROD END (ITEM 12) AND
6.
ALUMINUM PUSH ROD (ITEM 14) MUST NOT BE LESS THAN .375".
PUSH ROD SHOWN IN
MIDDLE SERVO HOLE.
12
12
13
13
14
DETAIL A
5.08
(.46)
SEE NOTE 6
(.46)
SEE NOTE 6
ITEM
GARMIN P/N
QTY
DESCRIPTION
1
210-00117-03
5
AN365-1032A LOCK NUT
2
212-00035-10
10
AN960-10 WASHER
3
115-01854-05
1
ROLL BRACKET, RV-7, 8, 9, &10
4
211-00090-01
3
AN3-5A BOLT
5
115-01854-06
1
ROLL SUPPORT, RV-7, 8, 9, &10
6
212-00080-03
3
AN970-3 WASHER
7
211-00090-05
1
AN3-7A BOLT
8
213-00093-01
2
SPACER, .192" x .375" X .485" LNG
9
115-01854-07
1
ROLL ATTACH PLATE, RV-9
10
211-00090-15
1
AN3-13A BOLT
11
211-00090-12
1
AN3-25A BOLT
12
382-00019-02
2
MALE ROD END BEARING
13
210-00116-03
2
AN315-3R JAM NUT
14
117-00542-09
1
PUSH ROD, 3/8" DIA, 3.50" LNG, TAPPED
15
212-00043-10
1 AN960-10L (THIN) WASHER
