Garmin G3X Touch Installation Manual

190-01115-01 G3X/G3X Touch Installation Manual - LRU Pinouts
Rev. AC Page 25-30
25.5.4 J244 Connector

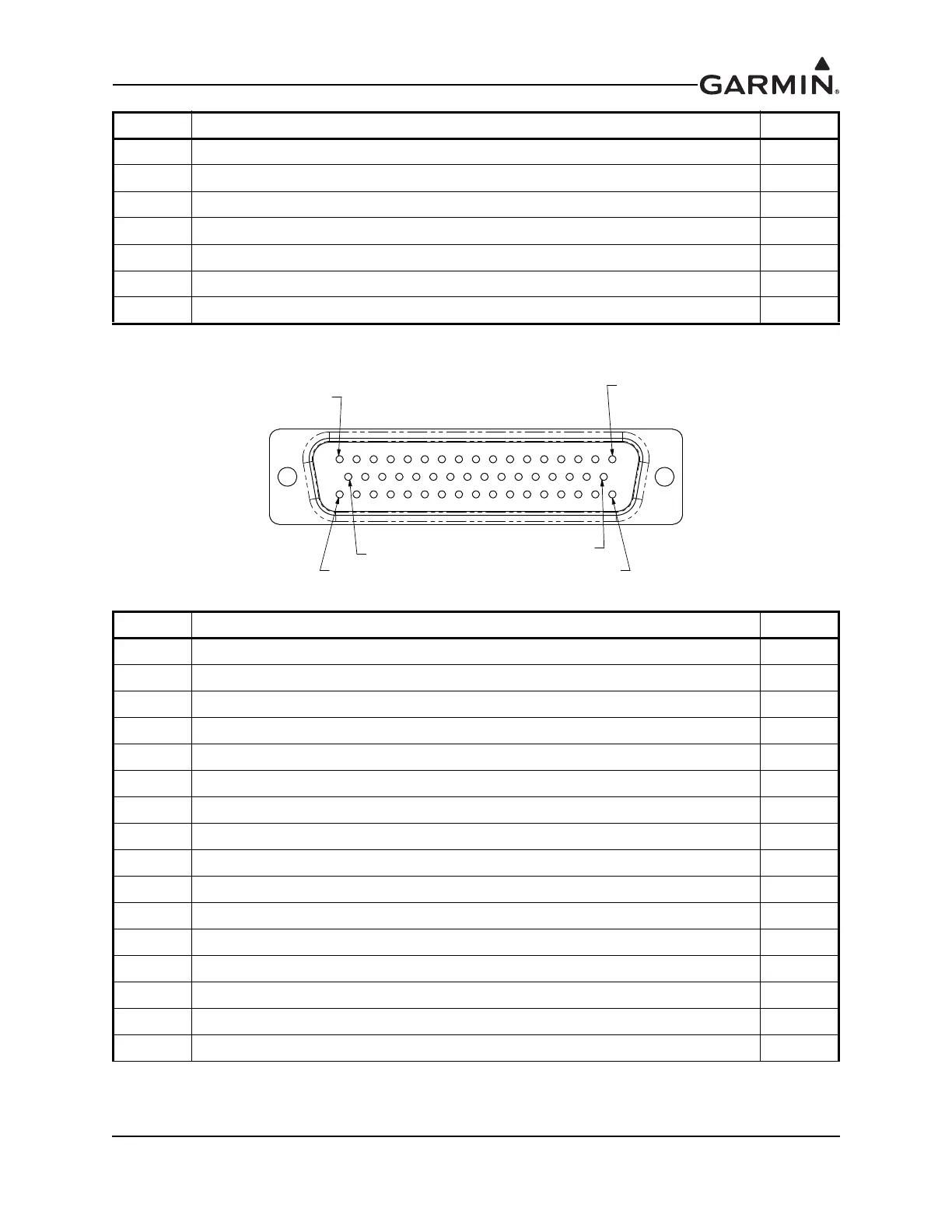

Figure 25-15 J244 on GEA 24, as viewed looking at connector on unit
31 POS 6 / TIT 1 / MISC TEMP 1 HI In
32 OIL TEMP LO In
33 OIL TEMP HI In
34 SHUNT 2 LO (shared with Pin 47, J244 connector) In
35 SHUNT 2 HI (shared with Pin 46, J244 connector) In
36 SHUNT 1 LO In
37 SHUNT 1 HI In
Pin Pin Name I/O
1 SYSTEM ID 1A* In
2 SYSTEM ID1B / GND --
3 RESERVED --
4 RESERVED --
5 FUEL QTY +5V_1 Out
6 FUEL QTY 1 In
7 FUEL QTY 1 GND --
8 FUEL QTY +5V_2 Out
9 FUEL QTY 2 In
10 FUEL QTY 2 GND --
11 POS 3 HI / +5V_3 Out
12 POS 3 / GP 3 / FUEL QTY 3 In
13 POS 3 LO / GND --
14 POS 4 HI / +5V_4 Out
15 POS 4 / GP 4 / FUEL QTY 4 In
16 POS 4 LO / GND --
*Indicates Active Low
**Can be configured as active high or active low
Pin Pin Name I/O
PIN 1
PIN 17
PIN 18
PIN 33
05 NIP43 NIP

Garmin G3X Touch Specifications

General

Power Input	10-32 VDC
Touchscreen	Yes
Built-in GPS	Yes
AHRS	Yes
Air Data Computer	Yes
Aviation Database	Yes
Terrain Awareness	Yes
Operating Temperature	-20°C to +55°C
Display Size	10.6 inches
Display Type	LCD
Connectivity	Wi-Fi, Bluetooth, USB, RS-232, CAN bus
Engine Monitoring	Yes
Autopilot Compatibility	Yes
Traffic Awareness	Yes
Weather Data	Yes
