190-01115-01 G3X/G3X Touch Installation Manual - GSA 28 Installation
Rev. AC Page 17-37

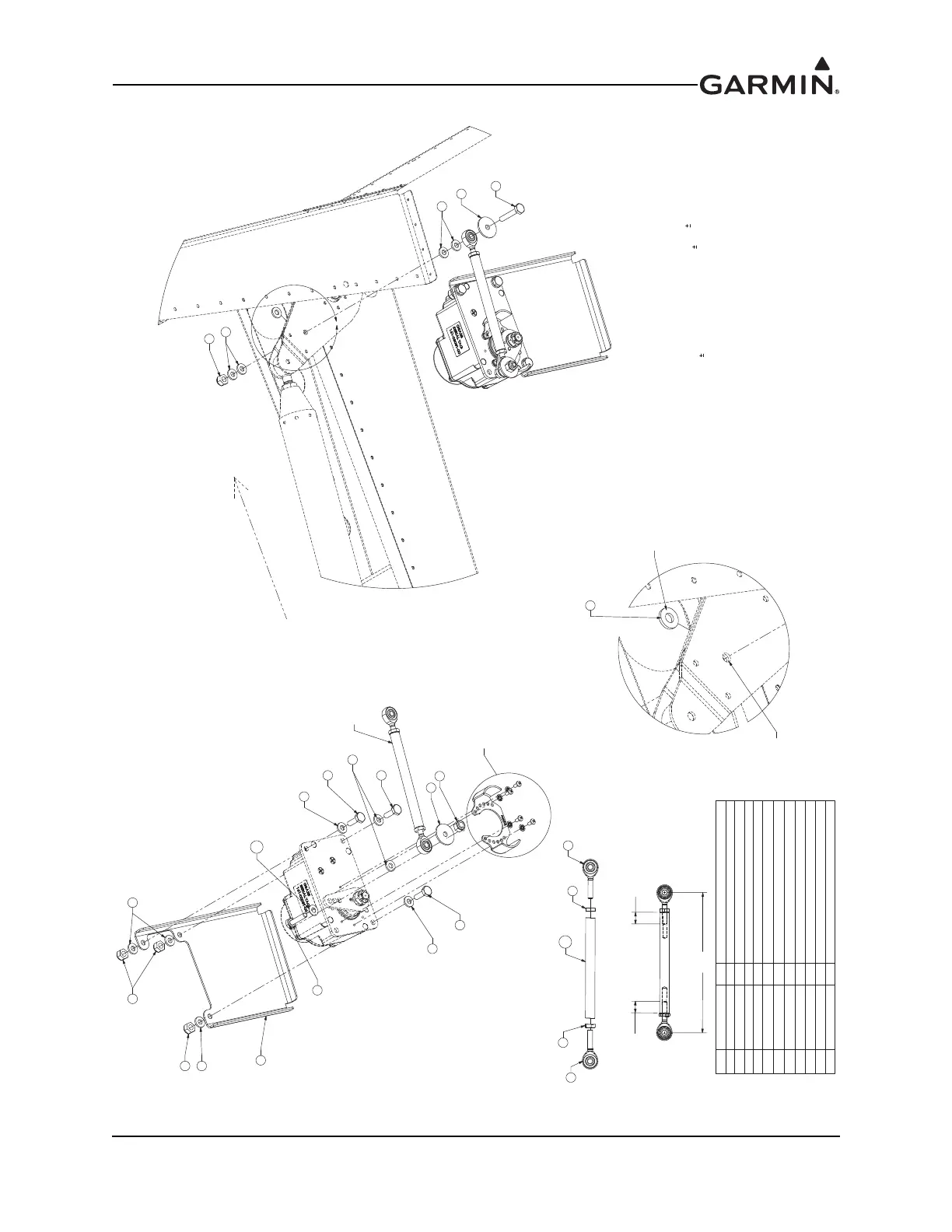

Figure 17-13.1 GSA 28 RV-6/7/9 Mounting Kit 011-02952-14 (page 1 of 2)
ITEM GARMIN P/N QTY DESCRIPTION
1 210-00117-03 5 AN365-1032A LOCK NUT
2 212-00035-10 12 AN960-10 WASHER
3 115-01854-08 1 PITCH BRACKET, RV-6, 7, 9
4 211-00090-05 1 AN3-7A BOLT
5 211-00090-01 3 AN3-5A BOLT
6 212-00080-03 2 AN970-3 WASHER
7 211-00090-07 1 AN3-11A BOLT
8 382-00019-02 2 MALE ROD END BEARING
9 210-00116-03 2 AN315-3R JAM NUT
10 117-00542-03 1 PUSH ROD, 3/8" DIA, 4.00" LNG, TAPPED
11 212-00043-10 1 AN690-10L (THIN) WASHER
8
9
9
10
DETAIL A
8
5.575
(.463)
SEE NOTE 8
(.463)
SEE NOTE 8
6
F
O
R
W
A
R
D
7
1
2
2
B
SCALE 1 : 1
SEE NOTE 3
DETAIL B
2
SEE NOTE 4
4
6
(ITEM 10) MUST NOT BE LESS THAN 0.375".
8.
7.
THREAD ENGAGMENT BETWEEN ROD END BEARINGS (ITEM 8) AND ALUMINUM PUSH ROD
PUSH ROD
SEE DETAIL A
2
1
2
2
3
1
5
1
5
5
2
(INCLUDED WITH GSA28)
011-02951-00 STOP BRACKET KIT
2
SEE NOTE 7
NOTES:
DIMENSIONS: INCHES.1.
DIMENSIONS ARE NOMINAL AND TOLERANCES ARE
NOT IMPLIED UNLESS SPECIFICALLY STATED.2.
HOLE MUST BE DRILLED THROUGH BELL CRANK TO ATTACH PUSH ROD. SEE SHEET 2 FOR HOLE 3.
SIZE AND LOCATION.
SINGLE AN960-10 WASHER (ITEM 2) MUST BE PLACED IN-BETWEEN BELL CRANK HALVES 4.
CONCENTRIC WITH DRILLED HOLES.
TIGHTEN ALL AN365-1032A NUTS (ITEM 1) TO 34 - 46 IN-LBS (40 IN-LBS
15%)5.
TIGHTEN ALL AN315-3R JAM NUTS (ITEM 9) TO 14-20 IN-LBS (17
3 IN-LBS).6.
TIGHTEN #4-40 SCREWS TO 8
1 IN-LB.
