190-01115-01 G3X/G3X Touch Installation Manual - GDU 37X Config and Post Install Checkout

Rev. AC Page 33-101

33.4.12 DSPL (Display) Configuration Page

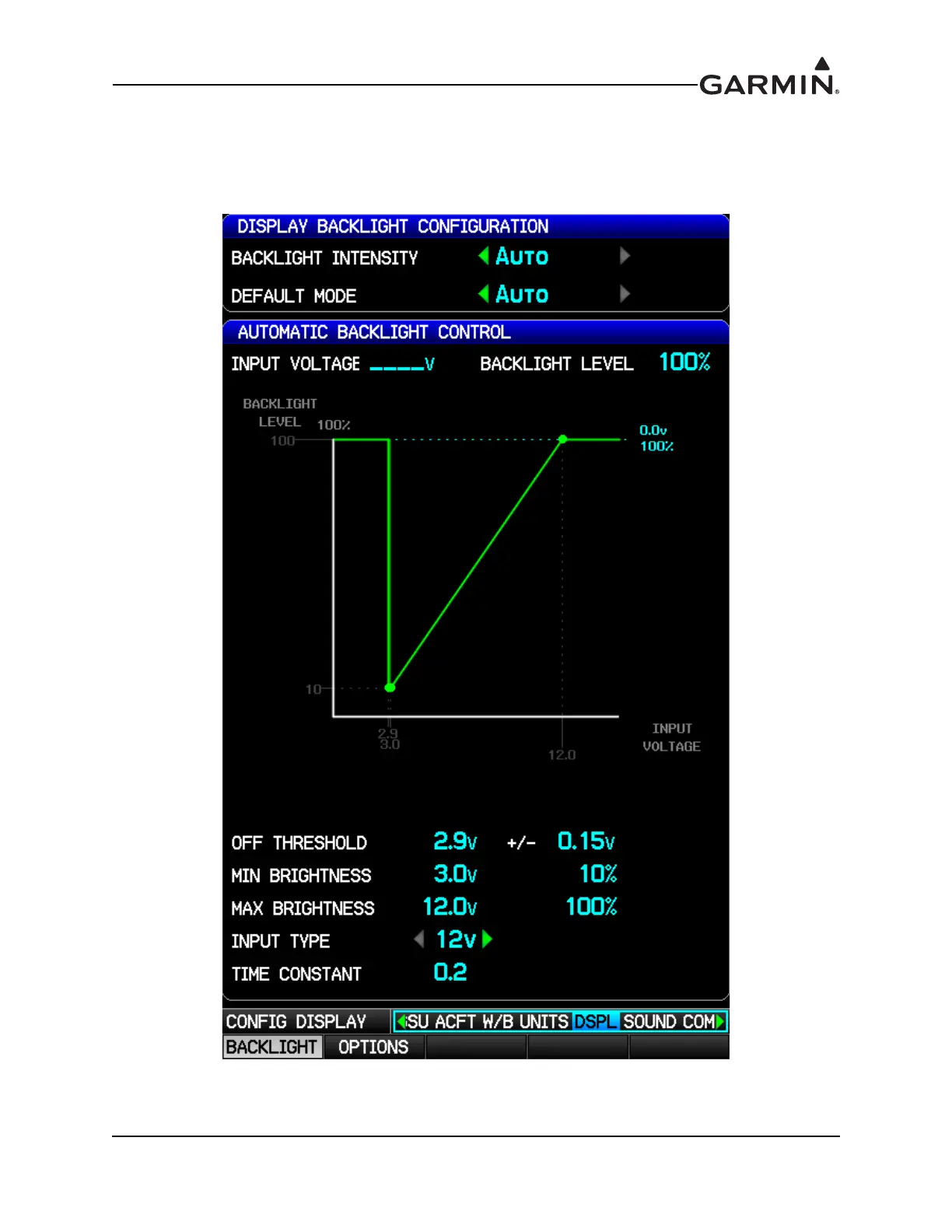

The DSPL Configuration Page allows setting the parameters for display backlight and display options

configuration.

1. In configuration mode, use the FMS Joystick to select the DSPL Page.
