190-01115-01 G3X/G3X Touch Installation Manual - GDU 37X Installation

Rev. AC Page 6-5

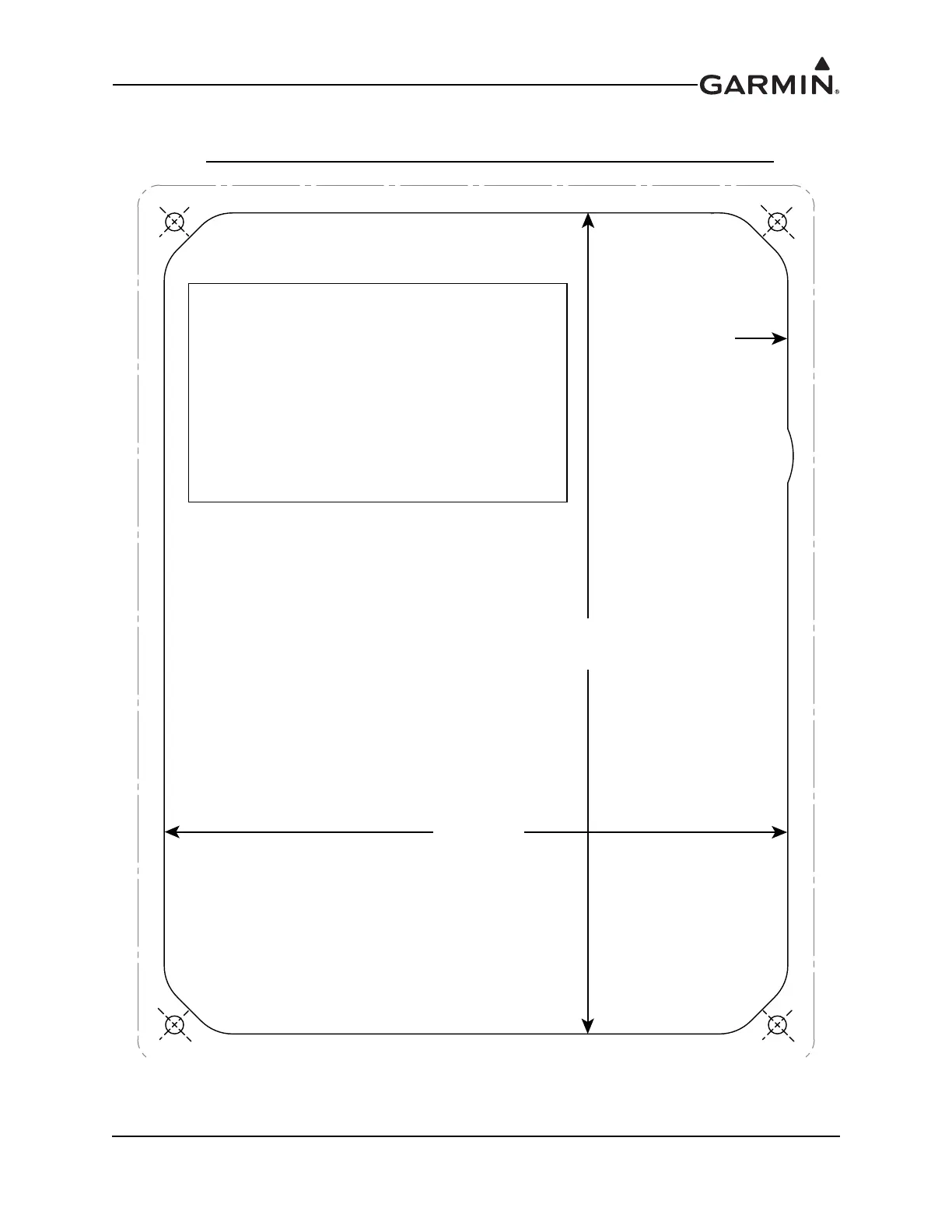

Figure 6-4 GDU 37X Panel Cutout Template

GDU 37X PANEL CUTOUT TEMPLATE

5.57 in

[141.4 mm]

7.33 in

[186.2 mm]

Cut out panel

to inside line

For corner holes, center punch and drill

(#36) / tap (6/32) to create threaded holes

drill out with 25 drill bit and use Garmin

nut-plate P/N 115-01054-00

IMPORTANT!

Ensure the Page Scaling setting

is set to NONE when printing

this page. Verify dimensions

of printed template are

accurate before cutting panel.
