Garmin G3X Touch Installation Manual

190-01115-01 G3X/G3X Touch Installation Manual - Engine/Airframe Sensor Installation
Rev. AC Page 23-24
NOTE
There are two plugs on a Slick/Unison 43xx series magneto where the tach sender could
fit. The one closest to the rotating magnet, with the hex-shaped plug, is correct. The one on
the opposite side, with a round plug, is incorrect.

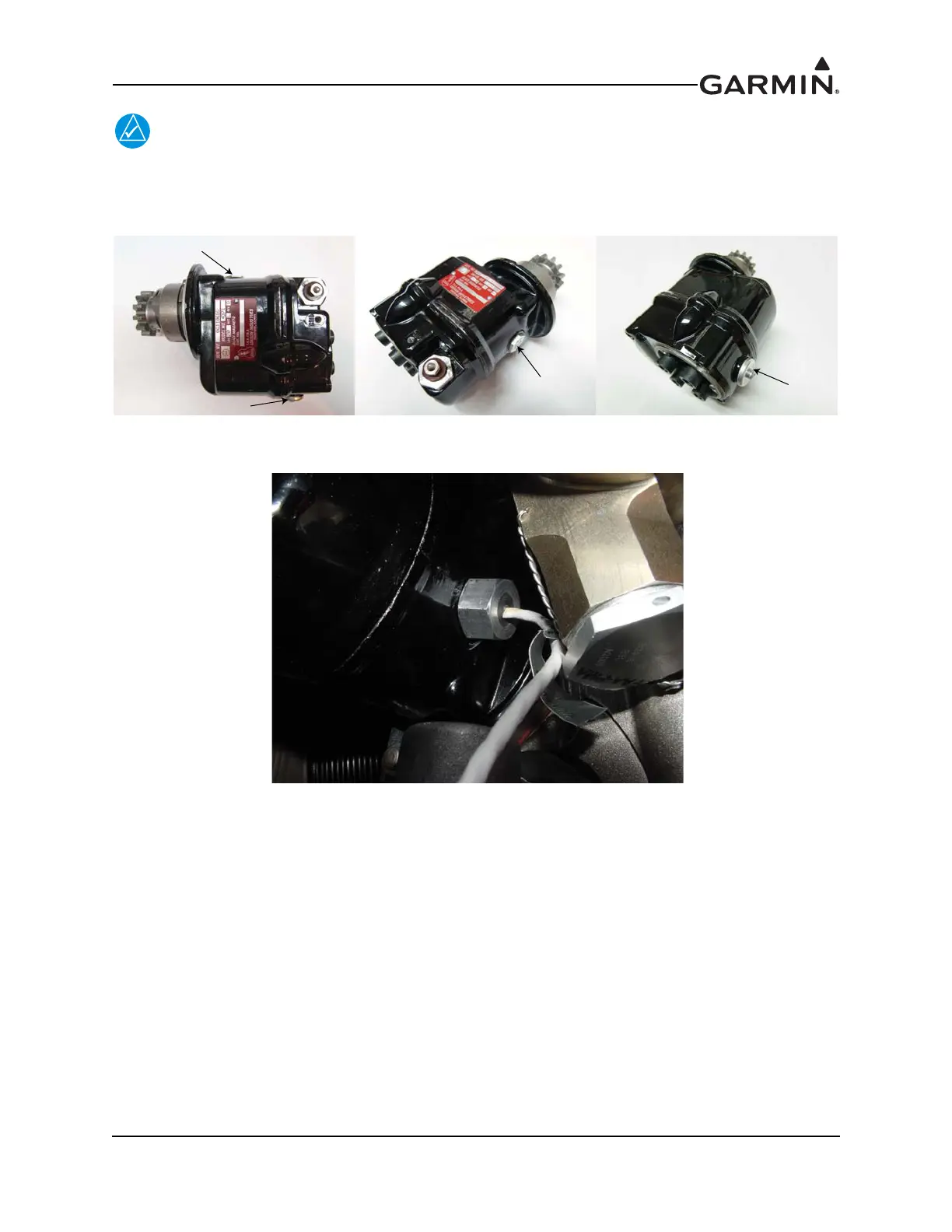

Figure 23-15 Plugs on Slick/Unison 43XX Magneto
Figure 23-16 Magneto Tach Sensor Installed
CORRECT TACH SENSOR PORT
WRONG PORT
CORRECT TACH
SENSOR PORT
WRONG PORT

Garmin G3X Touch Specifications

General

Power Input	10-32 VDC
Touchscreen	Yes
Built-in GPS	Yes
AHRS	Yes
Air Data Computer	Yes
Aviation Database	Yes
Terrain Awareness	Yes
Operating Temperature	-20°C to +55°C
Display Size	10.6 inches
Display Type	LCD
Connectivity	Wi-Fi, Bluetooth, USB, RS-232, CAN bus
Engine Monitoring	Yes
Autopilot Compatibility	Yes
Traffic Awareness	Yes
Weather Data	Yes
