190-01115-01 G3X/G3X Touch Install Manual - GDU 4XX Config and Post Install Checkout
Rev. AC Page 34-130

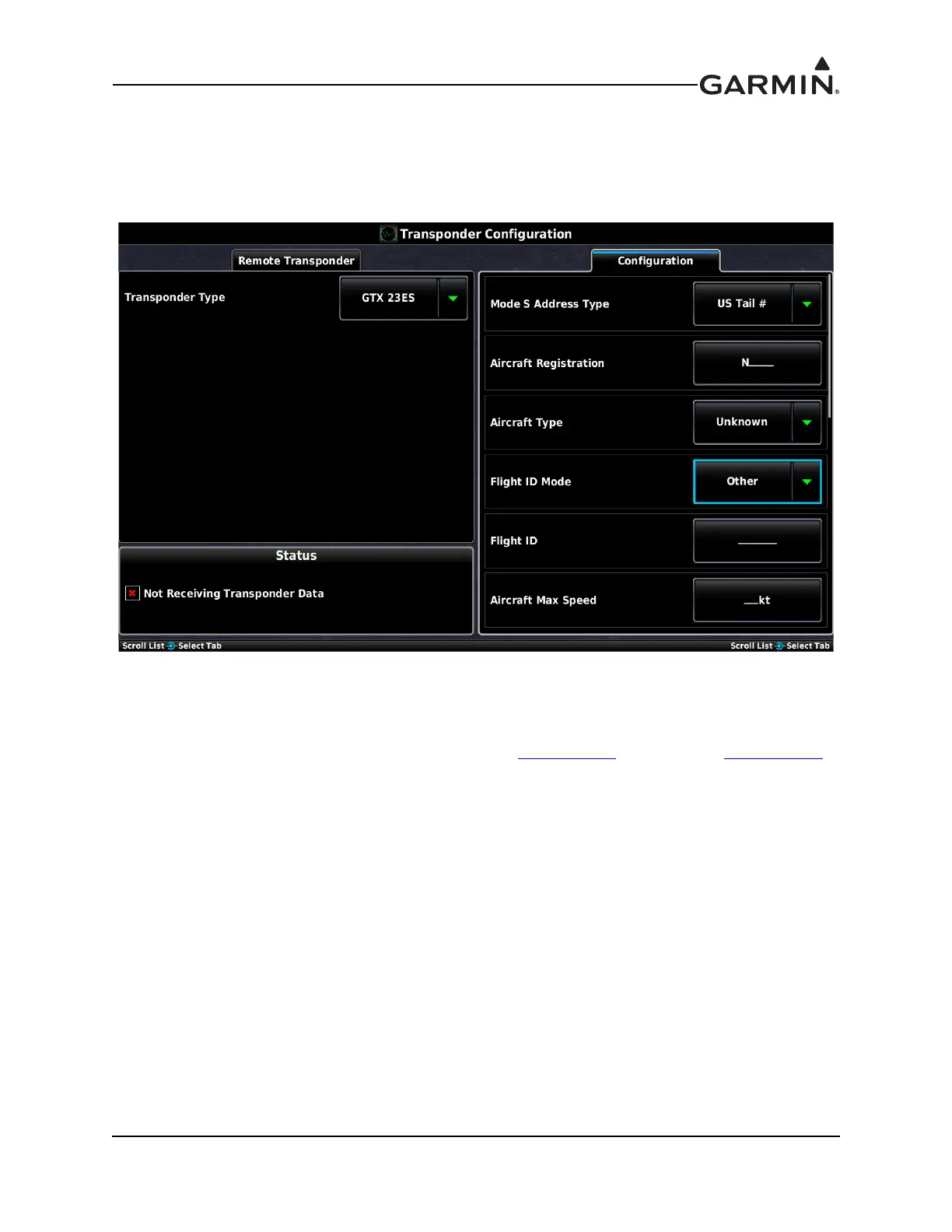

34.4.23 Transponder Configuration Page
The Transponder Configuration Page allows selection of the installed Garmin Transponder.
1. In configuration mode, use the Touch Panel or a Move Selector Knob to select the Transponder
Configuration Page.
2. Use the Touch Panel or a Move Selector Knob to select the applicable Transponder Type.
3. Use the Touch Panel or a Move Selector Knob to select the desired configurable item and make the
desired change.
4. Enter data (where applicable) using the Keyboard (Section 34.4.1
) or Slider Bar (Section 34.4.2).
5. Press the Back key to return to the Configuration Mode page when finished (if desired).
Configurable items are as follows (note that available configurable items differ by model):
Mode S Address Type: Can be set to US Tail #, Octal, or Hex, as applicable. A valid Mode S Address
will be indicated by a green status box, an invalid Mode S address or other invalid Mode S configuration
data is indicated by a red X in the status box.
Mode S Address: Enter the applicable Mode S Address
Aircraft Registration: Enter the applicable Aircraft Registration number
Aircraft Type: Can be set to Unknown, Fixed Wing, or Rotorcraft, as applicable. If Fixed Wing is
selected, a field to enter the aircraft’s approximate maximum weight is displayed.
Flight ID Mode: Can be set to Set By Pilot or Other, as applicable. If Set By Pilot is selected, the flight
ID can be entered in normal mode. Can also be set to Use Aircraft Registration if US Tail # was selected
as the Mode S Address Type.
Flight ID: If flight ID Mode is set to Other, this field appears to allow entry of Flight ID.
