Garmin G3X Touch Installation Manual

190-01115-01 G3X/G3X Touch Installation Manual - GPS/XM Antenna Installation
Rev. AC Page 22-35

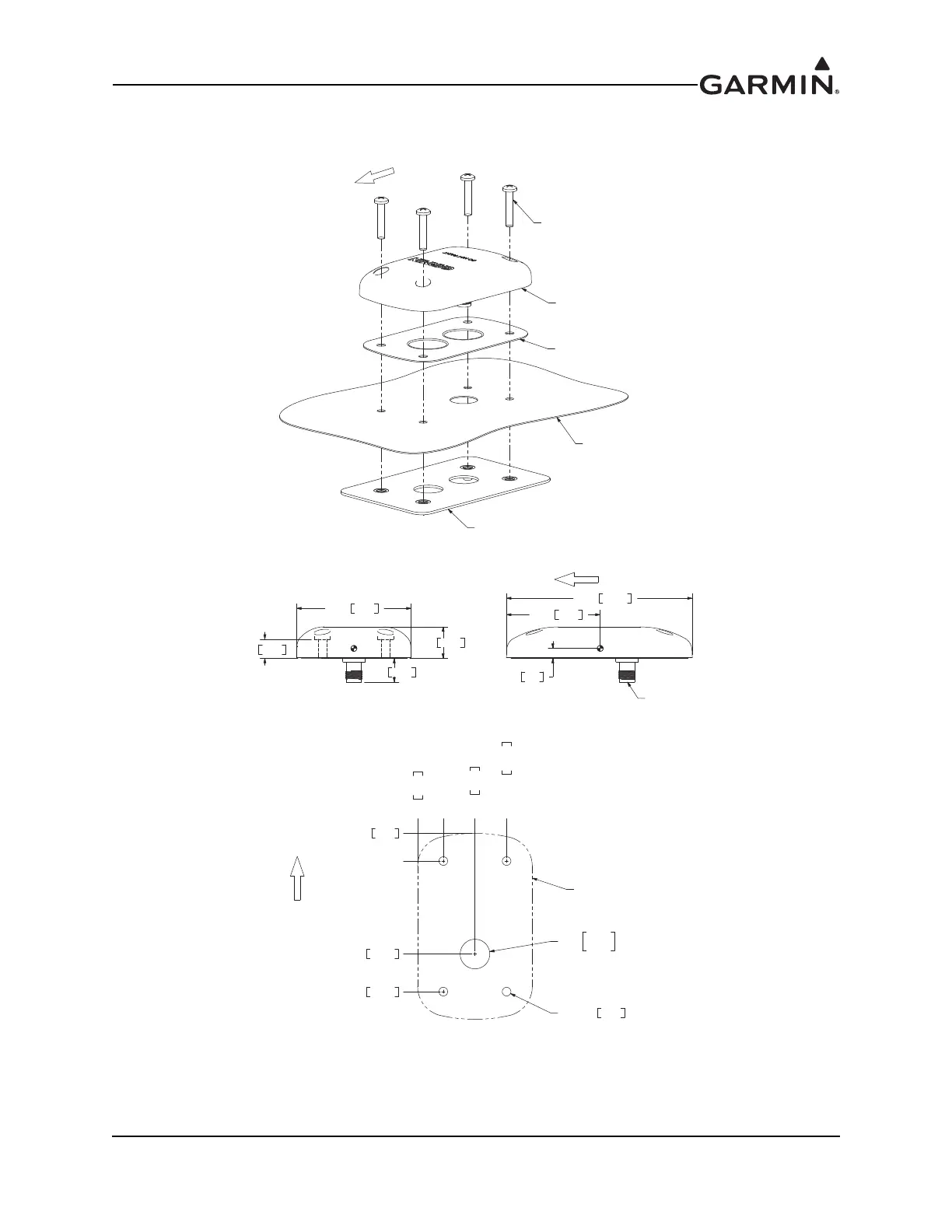

Figure 22-36 GA 55A Installation Drawing
AIRCRAFT SKIN
FORWAR
D
FABRICATE AND INSTALL DOUBLER PLATE
TORQUE 20 TO 25 in-lbs
011-01153-00
AS REQUIRED TO COMPLY WITH APPLICABLE
GA 55A XM ANTENNA
#10-32 PHP x 1.00[25.4]
AIRWORTHINESS REGULATIONS
4X 211-60212-20
253-00138-00
MOLDED GASKET
.49 12.3
.25 6.4
2.37
60.2
2X 0 2X 1.600 40.64
2X 0
2.350 59.69
2X 3.300 83.82
.70 17.8
.65 16.5 .800
20.3
20.2
.80
2.90 73.7
.60
15.2
TNC CONNECTOR
XM
FORWARD
4.70 119.4
1. DIMENSIONS: INCHES[mm]
NOTES:
FORWARD
MOUNTING CUTOUT
011-01153-00
ANTENNA OUTLINE
5.59
4X .220
.750
.625
19.05
15.88
GA 55A FLANGE MOUNT
