Garmin G3X Touch Installation Manual

190-01115-01 G3X/G3X Touch Installation Manual - GMU 22 Installation
Rev. AC Page 15-6
15.5 Outline and Installation Drawings

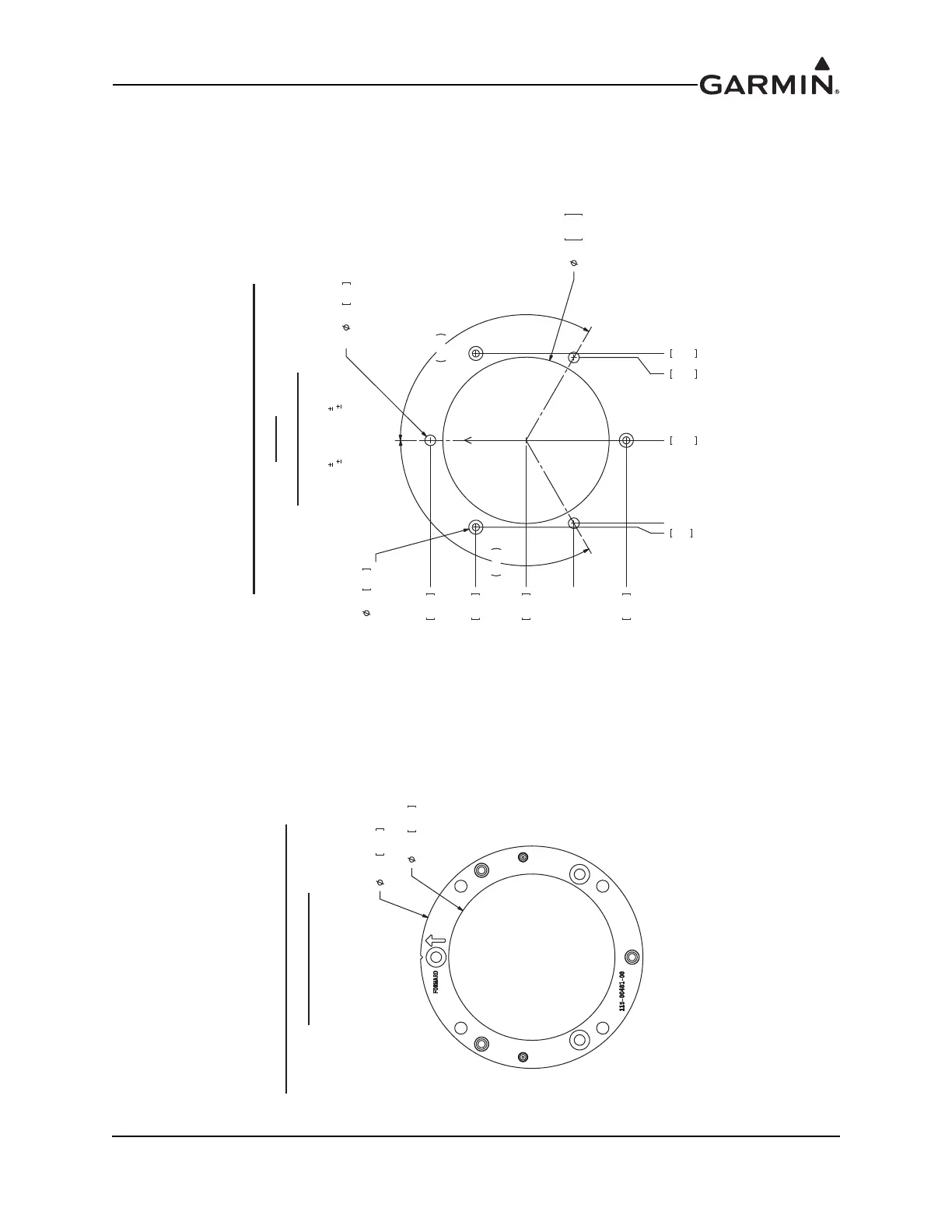

Figure 15-3 GMU 22 Mounting Rack (115-00481-00)
0
0
.061 1.54
1.256 31.90
2.511 63.79
2.572 65.33
.795 20.19 .725 18.42
2X 1.485 37.72
2.175 55.25
120°
120°
GMU 22 MOUNTING RACK
115-00481-00
NOTE: 1. DIMENSIONS: INCHES [mm]. METRIC VALUES ARE FOR REFERENCE ONLY. 2. FOLLOW "FORWARD" AND "TOP" INDICATIONS ON UNIT AND RACK.
2.520 64.01
3.370 85.60
AIRCRAFT MOUNTING HOLES
FOR
115-00481-00
FORWARD
2.51 2.49
63.75 63.25
3X .164 4.17 THRU (IN THIN MATERIAL, USING LOCKING NUTS) OR DRILL AND TAP #6-32 UNC IN MATERIAL THICKER THAN 3/16 [4.8]
3X .213 5.41
OPTIONAL CLEARANCE
HOLES FOR HOLD-DOWN SCREWS
TOLERANCES
INCHES mm
.XX
0.010 .X 0.25
.XXX
0.005 .XX 0.13
