190-01115-01 G3X/G3X Touch Installation Manual - GPS 20A Installation

Rev. AC Page 16-1

16 GPS 20A (WAAS GPS POSITION SOURCE) INSTALLATION

This section contains general information as well as installation information for the GPS 20A. Use this

section to mount the GPS 20A unit.

NOTE

The GPS 20A can only be used with GA 35, GA 36, or GA 37 antennas.

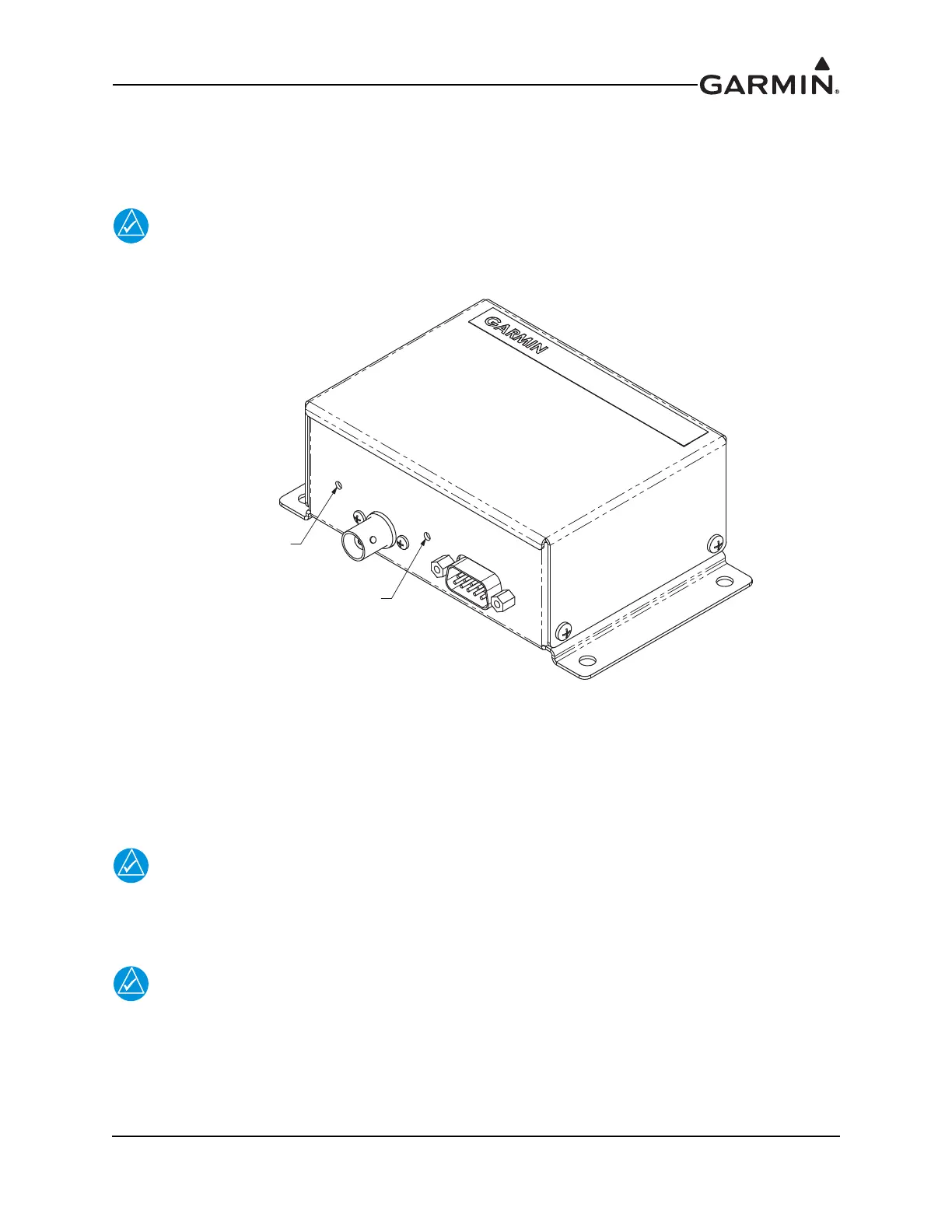

Figure 16-1 GPS 20A Unit View

16.1 Equipment Description

The GPS 20A provides an ADS-B Out position source. The WAAS/SBAS position information is

compatible with a wide range of 1090 ES transponders to meet the position requirements of

14 CFR 91.227. The GPS 20A also provides position data to all G3X and G3X Touch displays.

NOTE

If a GPS 20A (and connected GA 35, GA 36, or GA 37 antenna) is used for GPS position,

additional GPS antennas (connected to GDU 37X/4XX units) may be used for redundancy,

but are not required.

NOTE

The GPS 20A is not an FAA-approved product and thus is not eligible for installation in

certified aircraft.

GPS STATUS LED

UNIT STATUS LED

J201
