190-01115-01 G3X/G3X Touch Installation Manual - GPS/XM Antenna Installation

Rev. AC Page 22-27

22.6.2 Non-Structural Installation to Glareshield

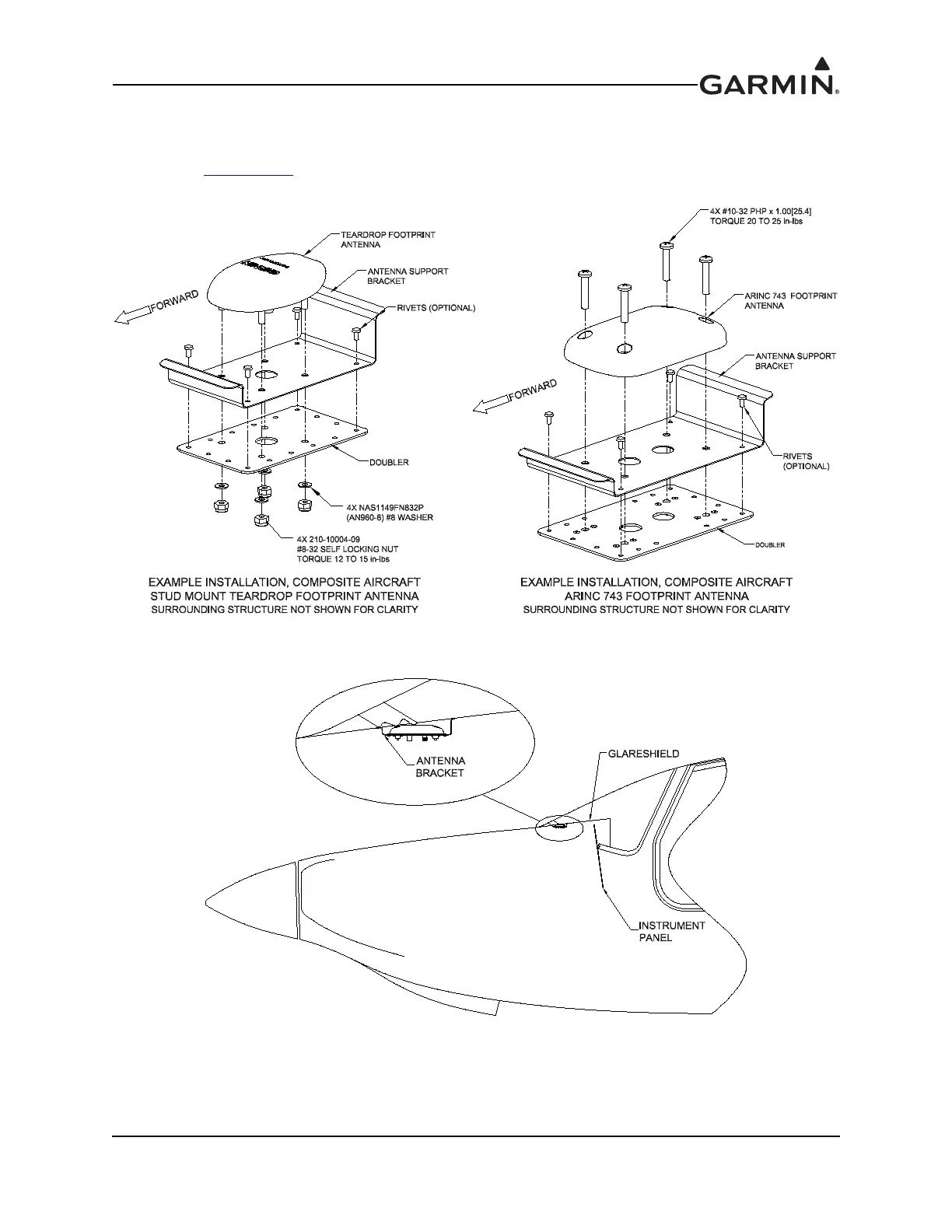

Figure 22-26 shows an example of a bracket created to support an antenna mounted on the underside of the

glare shield. Figure 22-27

shows the non-structural mounting of the antenna under the glareshield, with

the bracket assembly shown in Figure 22-26.

Figure 22-26 Example Bracket Antenna Mounting Under Glareshield

Figure 22-27 Example Non-structural Antenna Mounting Under Glareshield
