190-01115-01 G3X/G3X Touch Installation Manual - GDU 37X Config and Post Install Checkout

Rev. AC Page 33-118

33.4.19.3 Engine/Airframe Input Configuration

The Engine/Airframe Input Configuration section of the Engine Configuration Page allows selection of the

engine/airframe inputs that are connected to the GEA 24 or GSU 73, and for customizing the displayed

resulting information on the EIS display and the MFD Engine Page. A list of analog, digital, and discrete

inputs appropriate for the connected EIS LRU type (GEA 24, Figure 33-35 or GSU 73, Figure 33-36

) will

be displayed.

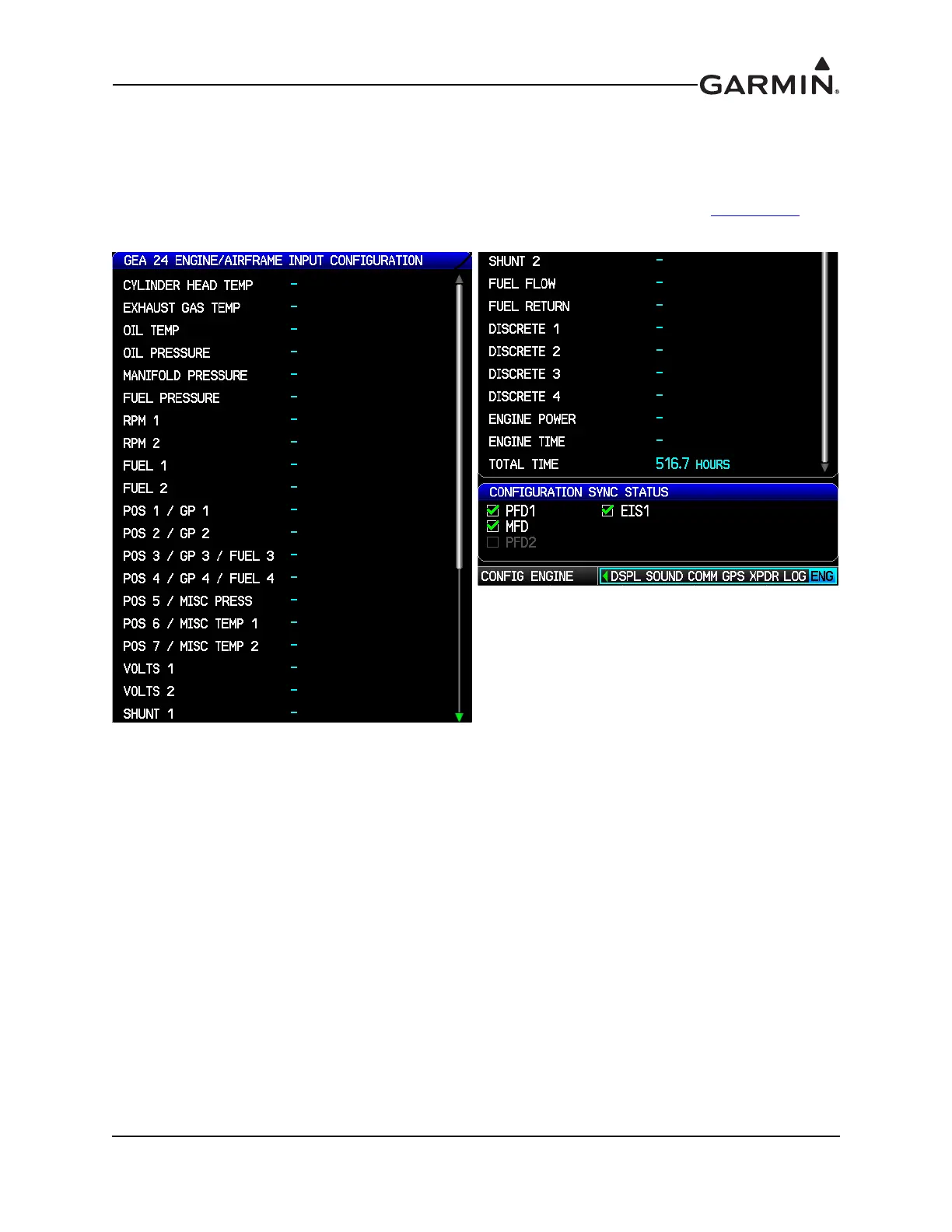

Figure 33-35 GEA 24 Engine/Airframe Input Configuration Page
