190-01115-01 G3X/G3X Touch Installation Manual - GPS/XM Antenna Installation
Rev. AC Page 22-23

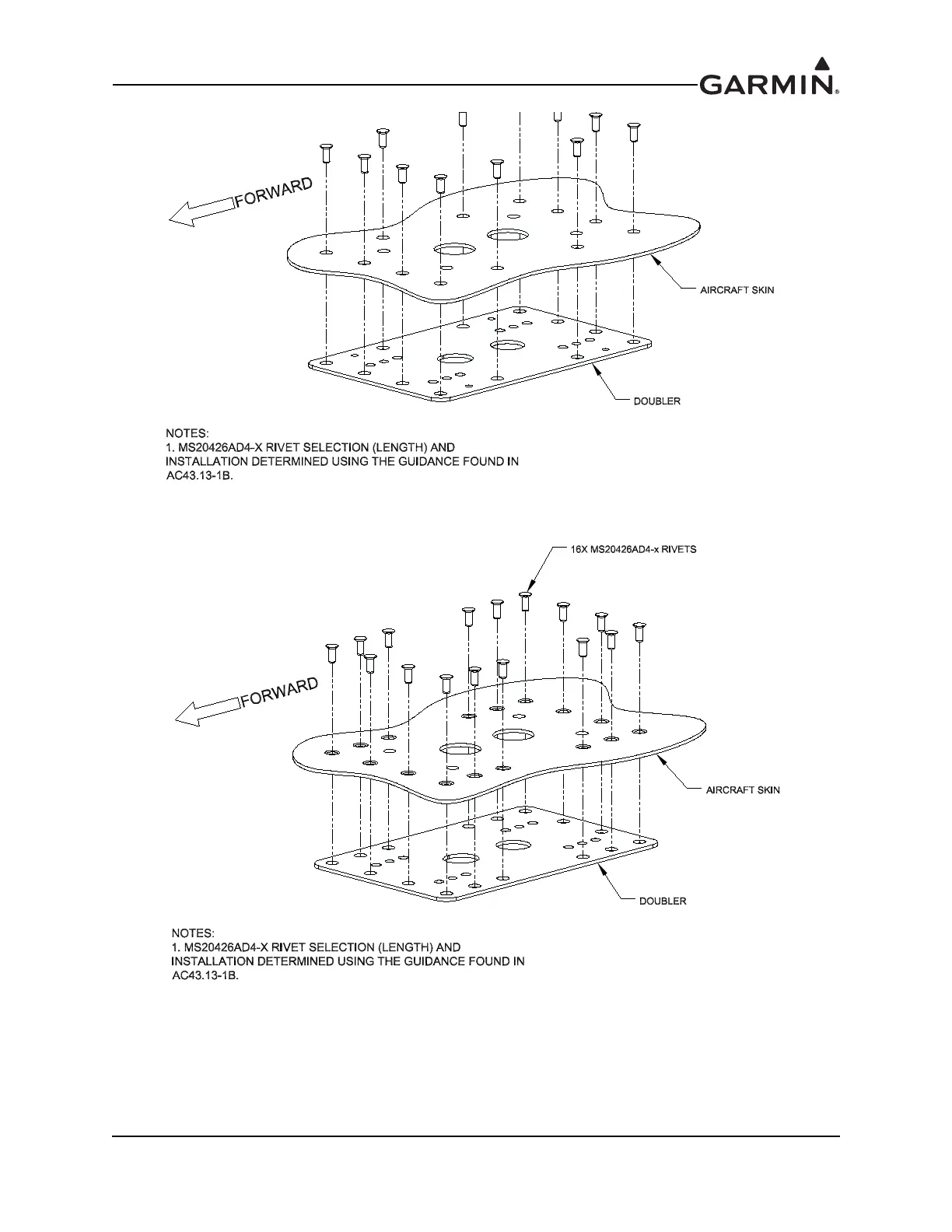

Figure 22-21 Doubler Installation, ARINC 743 Footprint Antenna, SkinThickness 0.032" to 0.049"
Figure 22-22 Doubler Installation, ARINC 743 Footprint Antenna, SkinThickness 0.049" to 0.051"
