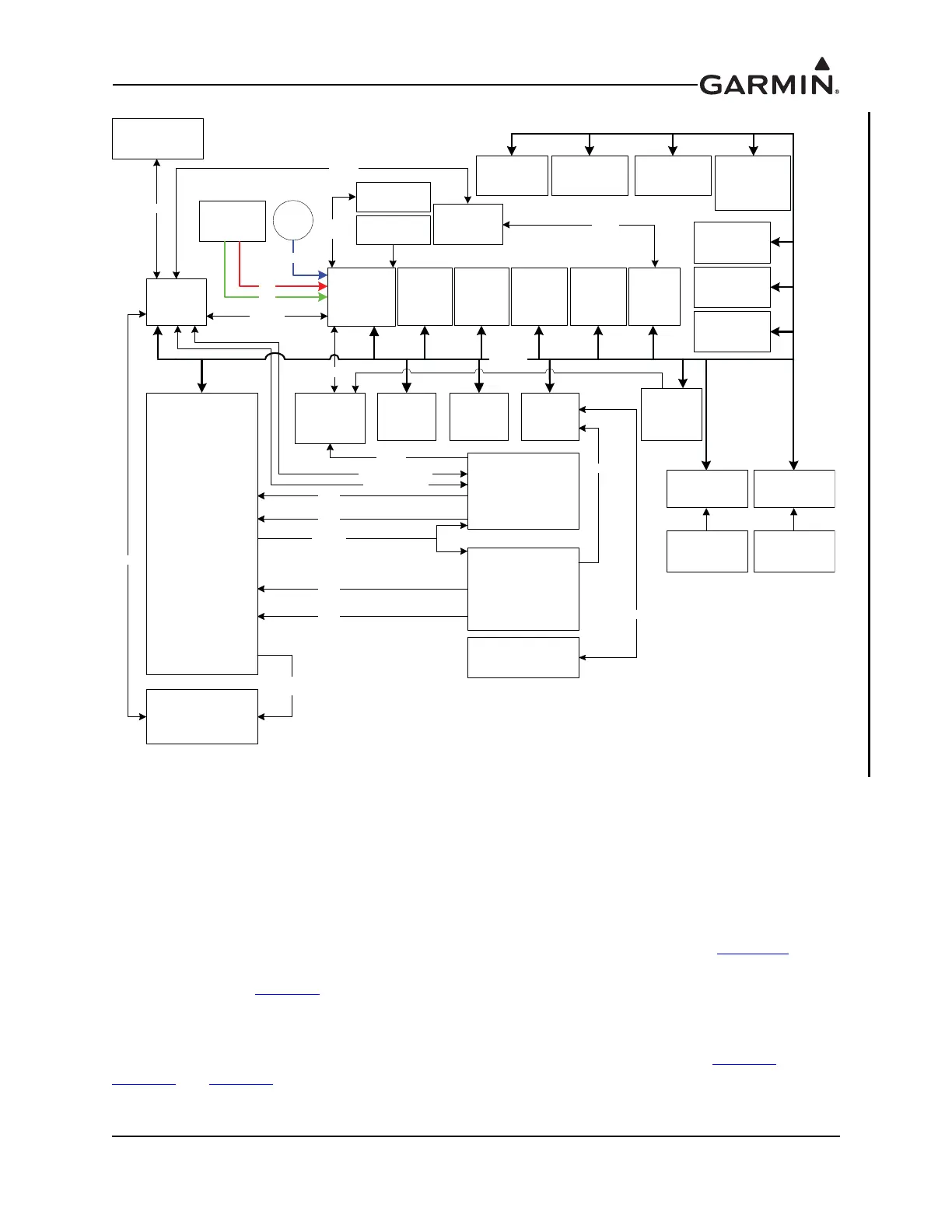

Figure 2-2 G3X Interconnect Example (GDU 4XX)
2.1.1.1 Displays
The foundation of a G3X system is one or more GDU display units. A GDU display is configured via
wiring connections as either a primary flight display (PFD) or multi-function display (MFD), with options
for arranging display layouts and combining different types of data on a single display. In the event that
power is removed from a GDU display, important flight data can still be accessed on the remaining
display(s).
A legacy (non-Touch) G3X system can have between one and three GDU 37X displays. Figure 2-1
shows
some of the various interface options for a GDU 37X-based system. For GDU 37X installation
information, refer to Section 6
.
A G3X Touch system can have between one and four GDU 4XX displays, with any combination of 10.6”
(GDU 46X) and 7” (GDU 45X or GDU 470) display sizes. Figure 2-2 shows some of the various interface
options for a GDU 4XX-based system. For GDU 4XX installation information, refer to Section 7
,
Section 8
and Section 9.
GDU 4XX
PFD1
GAD 29
Data
Concentrator
(Optional)
GDU 4XX
PFD2
(Optional)
GSU 25
ADAHRS 1
GDU 4XX
MFD1
(Optional)
GMC 305/307
A/P Controller
(Optional)
GEA 24
Engine Analyzer
GTX
Transponder
(Optional)
No. 2 GPS/Com
(Optional*)
No. 1 GPS/Com
(Optional*)
GARMIN COM OR
NAV/COM
(Optional*)
Third-party
Autopilot
(Optional)
A429
(Autopilot)
A429
(NAV)
A429
(GPS)
A429
(NAV)
RS-232
A429
(GPS)
GAP 26
Pitot/AOA
(Optional)
Static
Source
GTP 59
Temp Probe
GMU 22
Magnetometer
RS-232/
RS-485
GSA 28
Pitch Servo
(Optional)
Engine #1/
Airframe Sensors
RS-232
Notes:
*Maximum of two (2) COM/NAV
units installed.
AOA
Pitot
RS-232
RS-232
A429
(Air Data)
Static
CAN BUS
RS-232
(Optional)
RS-232
RS-232
(ADS-B)
GDL 39/5XR
Traffic/Weather
Receiver (optional)
GSU 25
ADAHRS 2
(Optional)
RS-232
GSA 28
Roll Servo
(Optional)
GTR 20/200
COM Radio
(Optional)
GTR 20/200
COM Radio
(Optional)
GI 260
AOA Indicator
(Optional)
GDU 4XX
MFD2
(Optional)
GAD 27
Elec System
Controller
(Optional)
RS-232
RS-232 (Connext)
RS-232 (GPS/COM)
GPS 20A
Position
Source
(Optional)
G5 Standby
Flight Display
(Optional)
(Optional)
GEA 24
Engine Analyzer
Engine #2
Sensors
(Optional)
GSU 25
ADAHRS 3
(Optional)
GSA 28
Yaw Servo
(Optional)
GMA 245/245R
Audio Panel
(Optional)
GMU 11
Magnetometer
(Optional)
