190-01115-01 G3X/G3X Touch Installation Manual - GAP 26 Installation
Rev. AC Page 5-4
Do not use the heated/regulated version of the GAP 26 (010-01074-20) in 28V
installations. The heated/non-regulated version of the GAP 26 (010-01074-10)
may be used in either 14V or 28V installations when connected as per Figure 5-4
or Figure 5-5
.
Do not connect the heaters in parallel to 28V. See Figure 5-5 for use on 28V
aircraft. The heaters will be damaged if connected incorrectly to 28V.

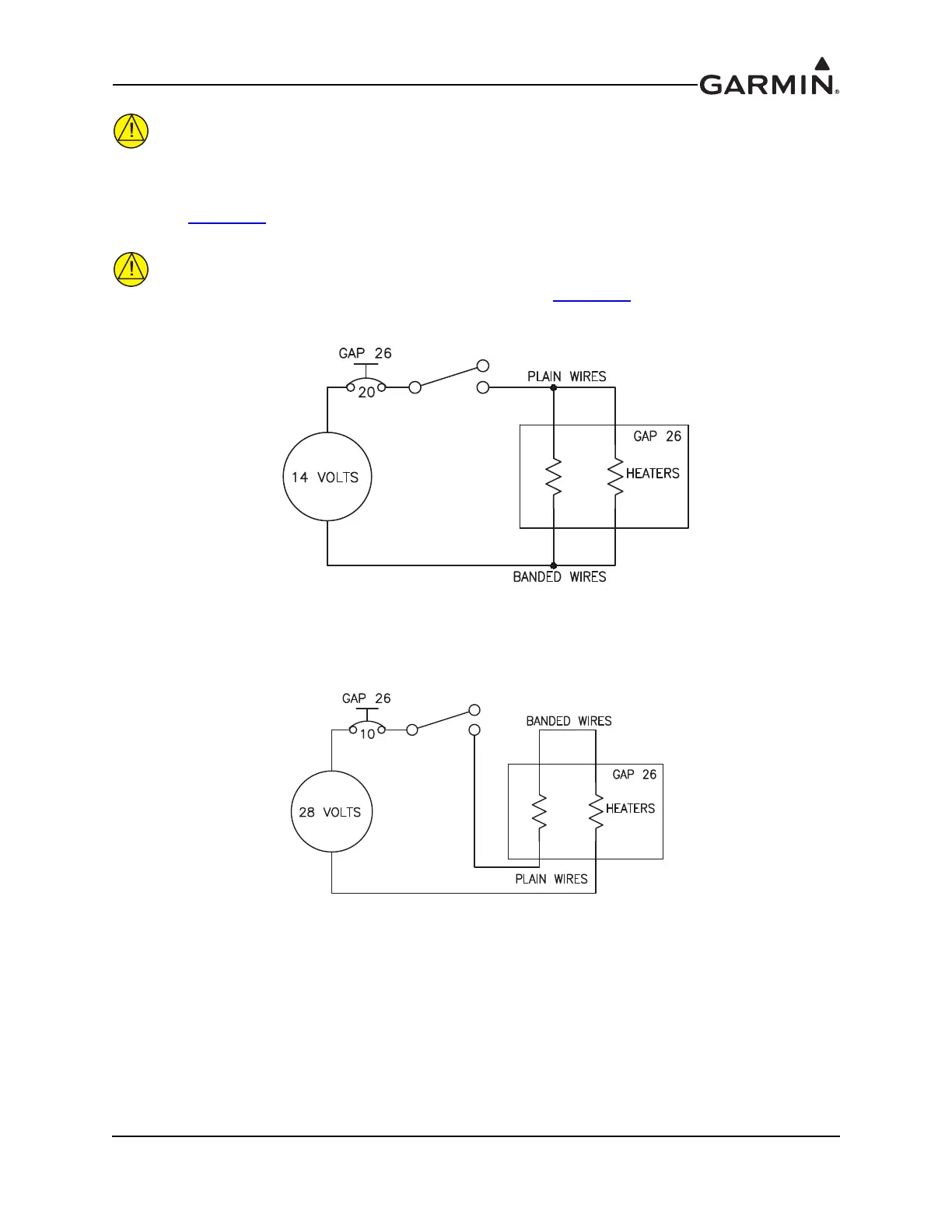

Figure 5-4 GAP 26, 14V Installation Configuration (010-01074-10 only)
Figure 5-5 GAP 26, 28V Installation Configuration (010-01074-10 only)
NOTES FOR 14V INSTALLATION
1. AIRCRAFT POWER WIRING TO PROBE SHOULD BE MINIMUM 14 AWG UP TO 12 FT, 12
AWG FROM 13 TO 20 FT, AND 10 AWG FROM 21 TO 30 FT. (AC 43.13-1B)
NOTES FOR 28V INSTALLATION
1. CAUTION: 28V INSTALLATIONS MUST FOLLOW THIS GUIDANCE AND CONNECT HEATERS
IN SERIES AS SHOWN OR PROBE WILL BE DAMAGED.
2. AIRCRAFT POWER WIRING TO PROBE SHOULD BE MINIMUM 18 AWG UP TO 12 FT, 16
AWG FROM 13 TO 20 FT, AND 14 AWG FROM 21 TO 30 FT. (AC 43.13-1B)
3. CONNECT BANDED WIRES WITH INSULATED MS25181 22-18 AWG BUTT SPLICE
CONNECTOR OR EQUIVALENT. BANDED WIRES MAY BE SHORTENED IF DESIRED.
To Next Page
