PFD Attitude Symbol–Affects the appearance of the airplane symbol on the PFD attitude display.
Options are Default, Alternate 1, and Alternate 2. This option is not selectable if an autopilot is
configured. The "Alternate 1 Symbol" shown below will be used if an autopilot (GSA 28 or 3rd party) is
configured.

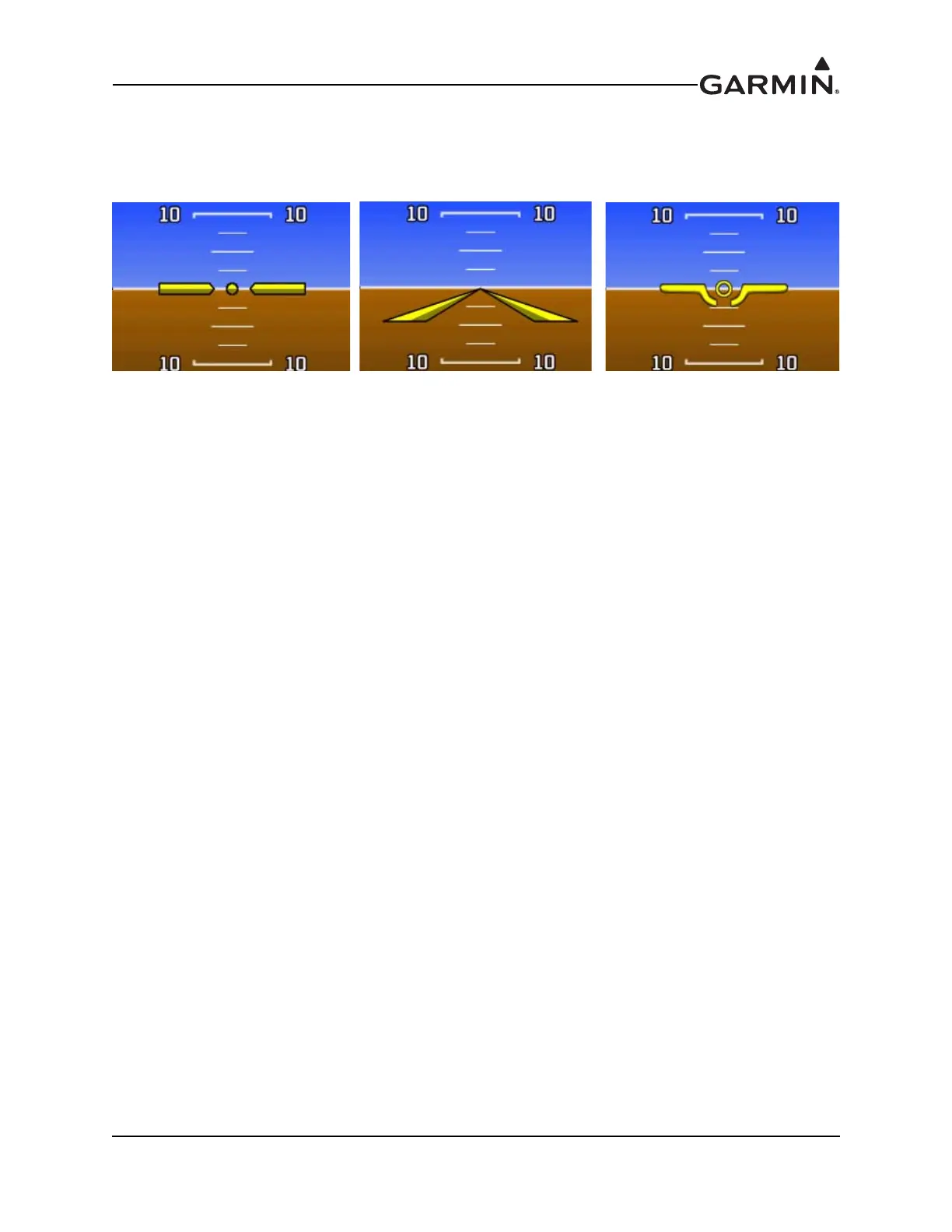

Default Symbol Alternate 1 Symbol Alternate 2 Symbol
Figure 33-33 PFD Attitude Symbols
PFD HSI Orientation–Allows setting the PFD HSI Orientation to either Heading or User Selected
(default). The Heading selection displays the HSI (on the PFD) in a heading-up orientation. The User
Selected setting enables an HSI Orientation option on the PFD Setup page, see the G3X Pilot’s Guide
(190-01115-00) for more info.
Screenshot–Allows setting the Screenshot function to either Enabled or Disabled (default). This function
allows a ‘screenshot’ of the current display to be stored to an SD card. When enabled, with an SD card in
the SD card slot, press and hold the Menu key to save a screenshot bitmap file to the SD card (indicated by
a screen flash).
Traffic Page–Sets the dedicated Traffic page to displayed (SHOW) or not displayed (HIDE). Only
applicable when configured for traffic input, otherwise not displayed.
