Garmin G3X Touch Installation Manual

190-01115-01 G3X/G3X Touch Installation Manual - Airframe Specific Installation Guidance
Rev. AC Page A-14
A.3.3 Lancair Legacy
A.3.3.1 GMU 22 Magnetometer Installation Guidance
1. A possible mounting location is in the upper section of the fuselage cavity, just forward of the ver-
tical tail section. The recommended location is shown in Figure A-19.

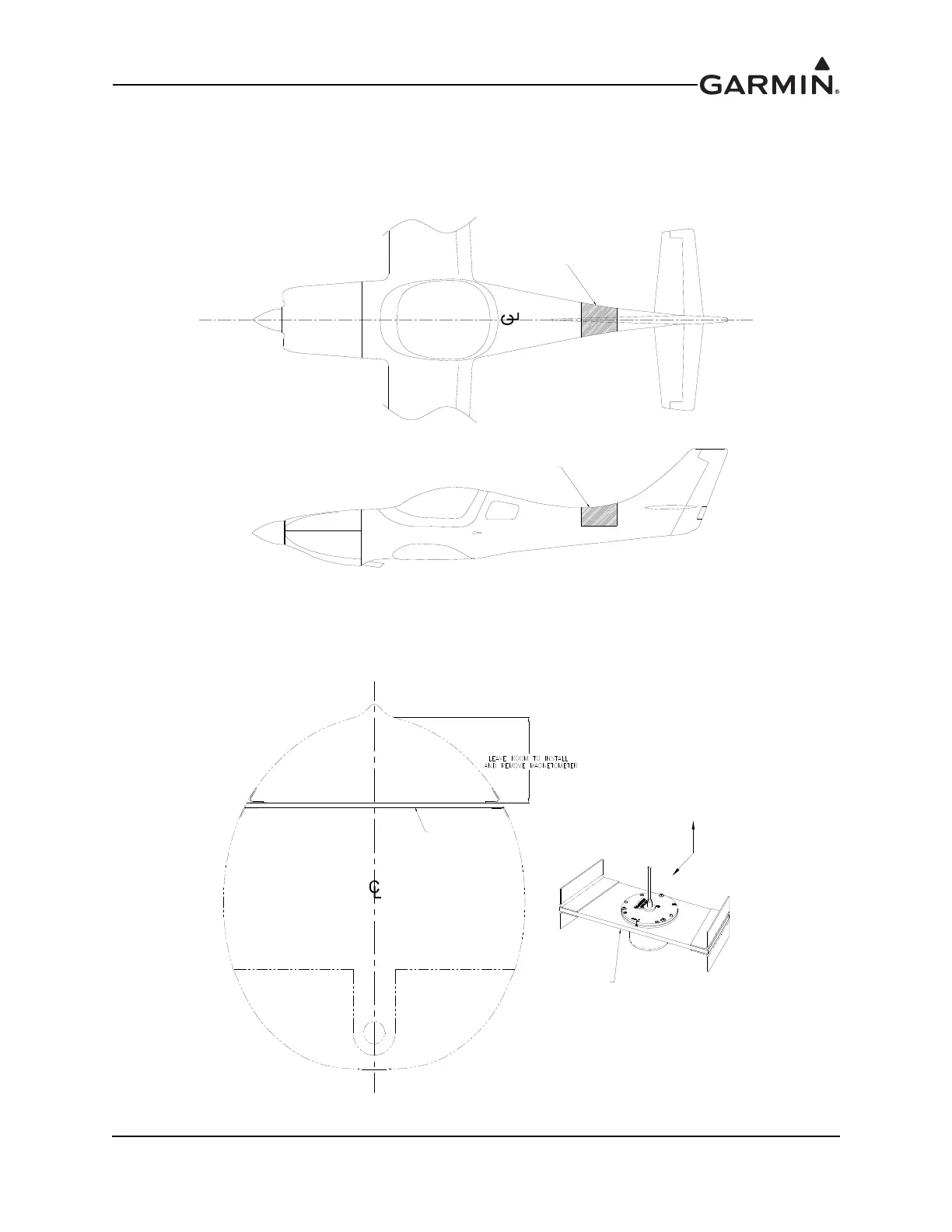

Figure A-19 Lancair Legacy Magnetometer Location
2. In determining a shelf location, ensure there is enough room above the shelf to install or remove
the magnetometer, as well as provide clearance for the associated cable harness as shown in
Figure A-20.
Figure A-20 View Looking AFT At Recommended Magnetometer Location
RECOMMENDED
LOCATION
RECOMMENDED
LOCATION
UP
FWD
MAGNETOMETER
SHELF (REF)
MAGNETOMETER
SHELF (REF)
