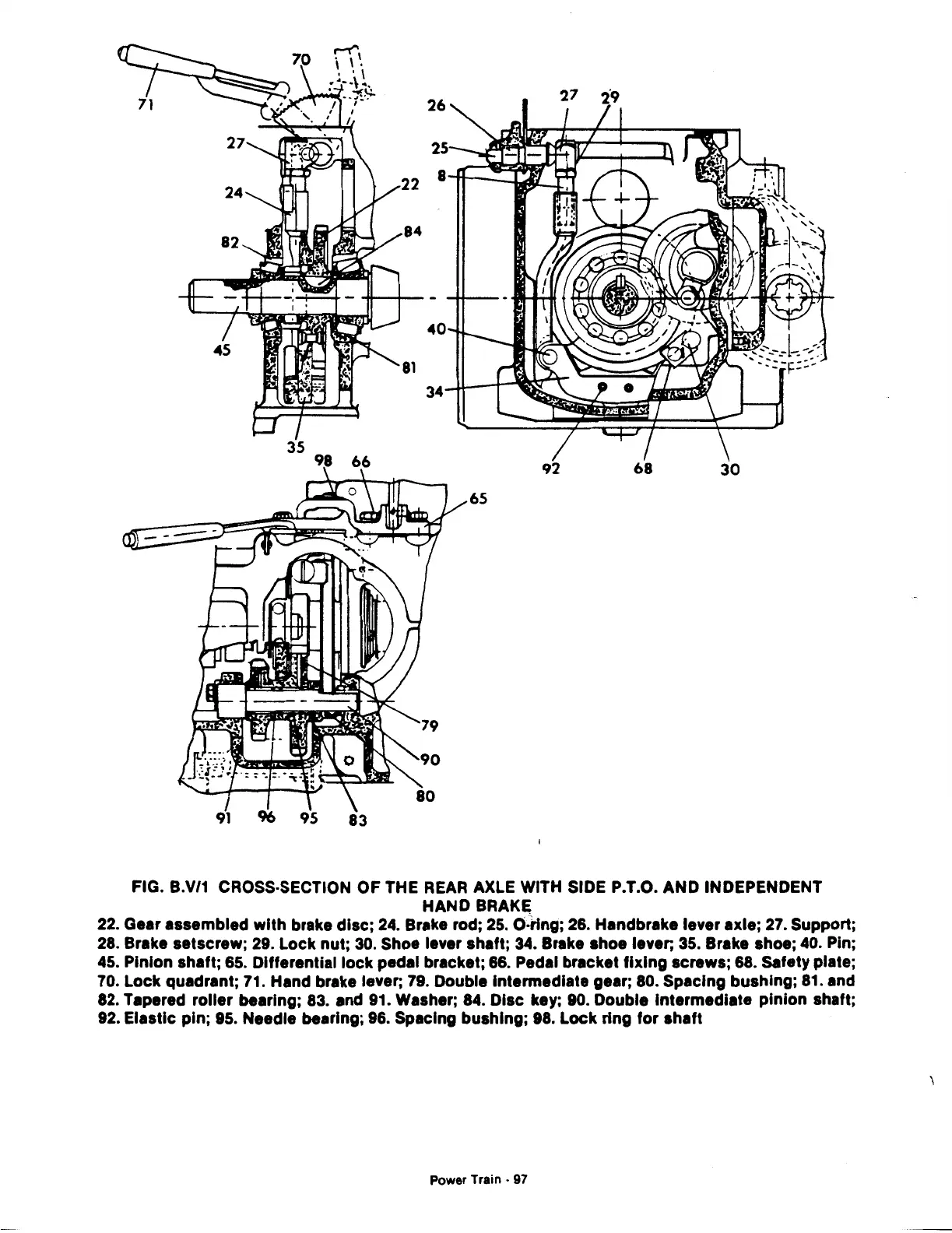

FIG.

B.V/1

CROSS-SECTION OF THE

REAR

AXLE WITH SIDE P.T.O. AND INDEPENDENT

HAND

BRAK~

22.

Gear assembled

with

brake disc;

24.

Brake rod;

25.

0-ring;

26.

Handbrakelever axle;

27.

Support;

28.

Brake setscrew;

29.

Lock nut;

30.

Shoe lever shaft;

34.

Brake shoe lever;

35.

Brake shoe;

40.

Pin;

45.

Pinion shaft;

65.

Differential lock pedal bracket;

66.

Pedal bracket fixing screws;

68.

Safety plate;

70.

Lock quadrant;

71.

Hand brake lever;

79.

Double Intermediate gear; 80. Spacing bushing;

81.

and

82.

Tapered roller bearing;

83.

and

91.

Washer;

84.

Disc key; 90. Double Intermediate pinion shaft;

92.

Elastic pin;

95.

Needle bearing;

96.

Spacing bushing;

98.

Lock ring for shaft
