STARTER
STARTER CHARACTERISTICS
The starter
consists
of
the
following
main parts:
a solenoid,
with
a core which, because
of
the
action
of
the magnetic field, induced by the
solenoid coil, moves axially
to
carry on
the
following; exerting pressure on the return
spring, positive engagement
of
the
pinion
with the flywheel gear ring through a special
lever,
connection
in
circuit
of
the field win·
ding fixed contacts, hence
allowing
the
passage
of
the energising current necessary
to operate the starter.

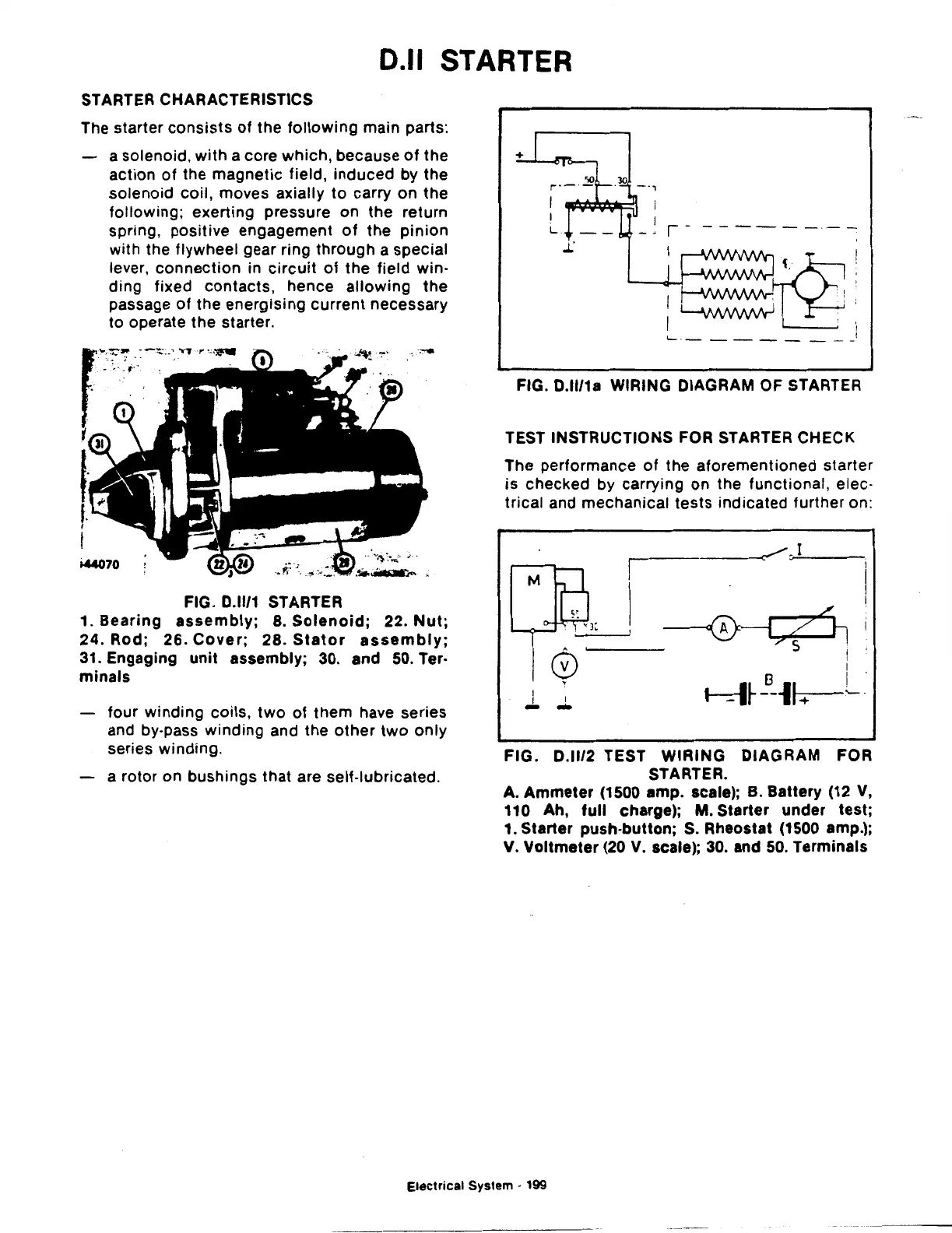

FIG. D.ll/1 STARTER
1.
Bearing
assembly;
8.
Solenoid;
22.
Nut;
24.
Rod;
26.
Cover;
28.
Stator
assembly;
31. Engaging unit assembly; 30. and
50.
Ter-
minals
four winding coils,
two
of
them have series
and by-pass winding and the
other
two
only
series winding.
a rotor on bushings that are self-lubricated.
r-
------·--
:~M:
1-..-
- - - - - -
_t
FIG. D.ll/1a WIRING DIAGRAM
OF
STARTER
TEST INSTRUCTIONS FOR STARTER CHECK
The performance
of
the aforementioned starter
is
checked by carrying on the functional, elec·
trical and mechanical
tests
indicated further on:
M
I
I I
--
FIG.
D.ll/2
TEST WIRING DIAGRAM FOR
STARTER.
A.
Ammeter
(1500 amp. scale); B. Battery
(12
V,
110 Ah,
full
charge); M. Starter under
test;
1. Starter push-button;
S.
Rheostat (1500 amp.);
V.
Voltmeter
(20
V.
scale); 30. and
50.
Terminals
Electrical System · 199
