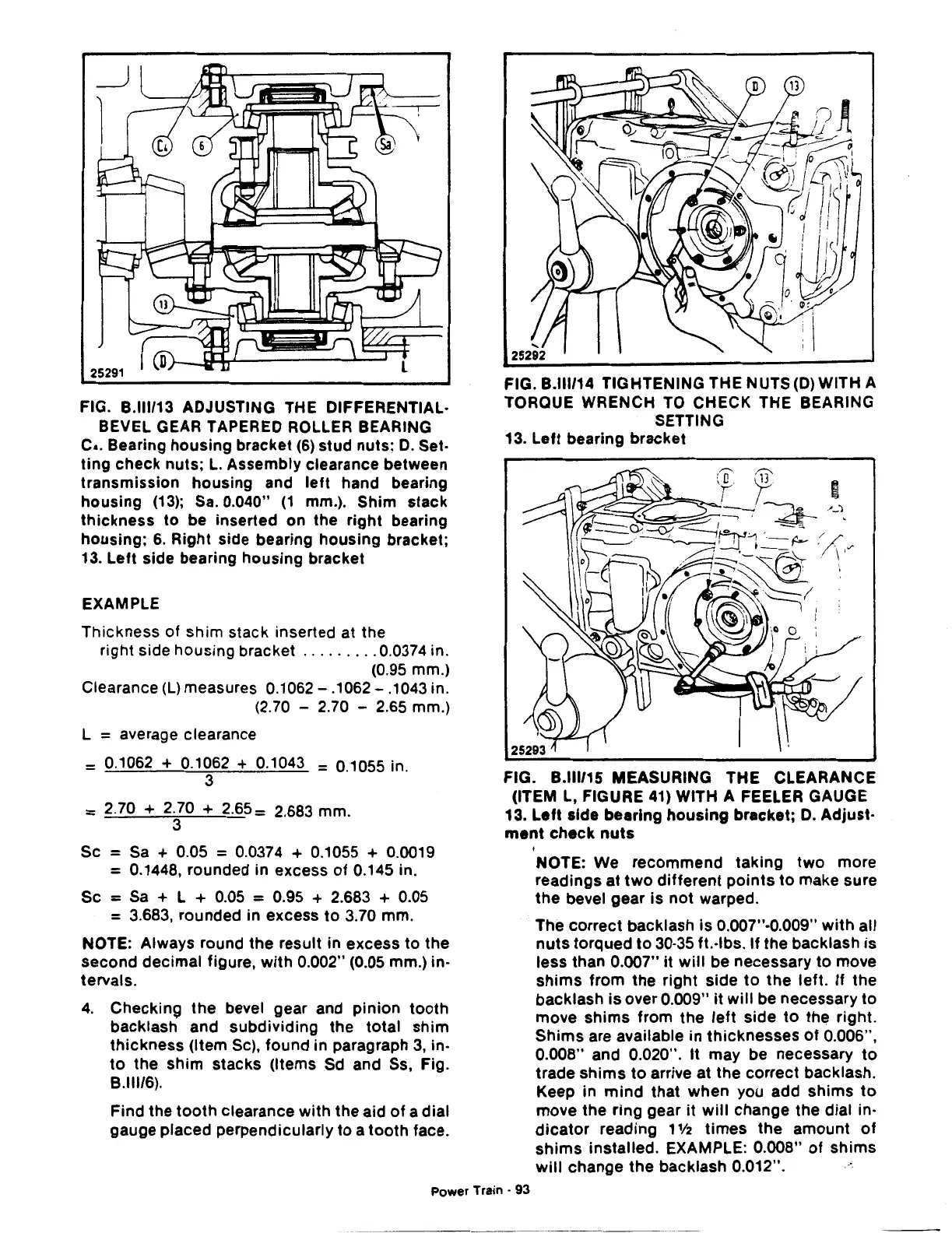

FIG. B.lll/13 ADJUSTING THE DIFFERENTIAL·
BEVEL GEAR TAPERED ROLLER BEARING
c
•.
Bearing housing bracket
(6)
stud
nuts;
D.
Set-
ting
check nuts;
L.
Assembly clearance between
transmission housing and
left
hand bearing
housing
(13);
Sa.
0.040"
(1
mm.). Shim stack
thickness
to be inserted on the right bearing
housing;
6. Right side bearing housing bracket;
13. Left side bearing housing bracket
EXAMPLE
Thickness of shim stack inserted at the
right side housing bracket
.........
0.0374 in.
(0.95 mm.)
Clearance
(L)
measures
0.1062-.1062-.1043
in.
(2.70 - 2.70 - 2.65 mm.)
L = average clearance
= 0.1062
+ 0.1062 + 0.1043 = 0.1055 in.
3
= 2.70 + 2.70 + 2.65= 2.683 mm.
3
Sc =
Sa
+ 0.05 = 0.0374 + 0.1055 + 0.0019
= 0.1448, rounded in excess
of
0.145 in.
Sc
=
Sa
+ L + 0.05 = 0.95 + 2.683 + 0.05
= 3.683, rounded in excess
to
3.70 mm.
NOTE: Always round the result in excess to the
second decimal figure,
with
0.002" (0.05 mm.) in-
tervals.
4.
Checking the bevel gear and pinion
tooth
backlash and subdividing the total shim
thickness
(Item Sc), found in paragraph
3,
in·
to
the shim stacks (Items
Sd
and Ss, Fig.
8.11116).
Find the
tooth
clearance with the aid
of
a dial
gauge placed perpendicularly
to
a
tooth
face.
FIG. B.lll/14 TIGHTENING THE NUTS
(D)
WITH A
TORQUE WRENCH
TO
CHECK THE BEARING
SETTING
13. Left bearing bracket
FIG. B.lll/15 MEASURING THE CLEARANCE
(ITEM L, FIGURE
41)
WITH A FEELER GAUGE
13. Left side bearing
housing
bracket;
D.
Adjust·
ment
check
nuts
NOTE: We recommend taking
two
more
readings at
two
different
points
to
make sure
the
bevel gear is not warped.
The correct backlash is 0.007"·0.009"
with
all
nuts
torqued
to
30·35 ft.-lbs.
If
the
backlash is
less than 0.007"
it
will
be necessary
to
move
shims
from the right side
to
the
left.
If
the
backlash
is
over 0.009"
it
will
be necessary
to
move
shims
from the
left
side
to
the right.
Shims are available in thicknesses
of
0.006",
0.008" and 0.020".
It
may be necessary
to
trade
shims
to
arrive at the correct backlash.
Keep in
mind
that when you add
shims
to
move the ring gear
it
will
change the dial in·
dicator
reading 1
Y2
times
the amount
of
shims
installed. EXAMPLE: 0.008"
of
shims
will
change
the
backlash 0.012".
Power Train · 93
