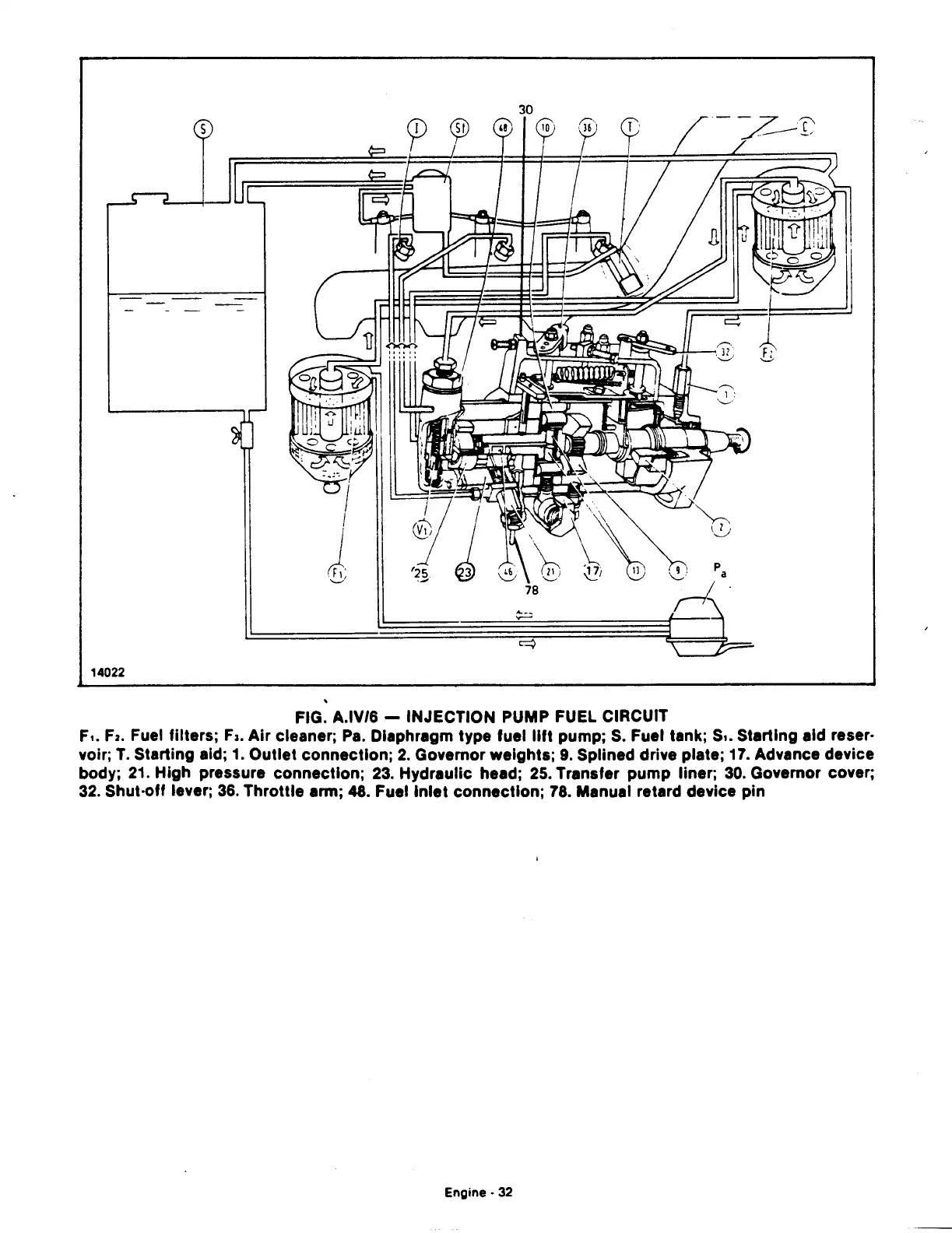

FIG. A.IV/6 - INJECTION PUMP FUEL CIRCUIT

F1.

F2.

Fuel filters;

F3.

Air

cleaner;

Pa.

Diaphragm type fuel

lift

pump;

Fuel tank;

S1.

Starting aid reser·

voir;

Starting aid;

Outlet connection;

Governor weights;

Splined drive plate;

17.

Advance device

body;

21.

High pressure connection; 23. Hydraulic head;

25.

Transfer pump liner;

30.

Governor cover;

32.

Shut-off lever;

36.

Throttle arm; 48. Fuel Inlet connection;

78.

Manual retard device pin

Engine·
