a)
b)
85322

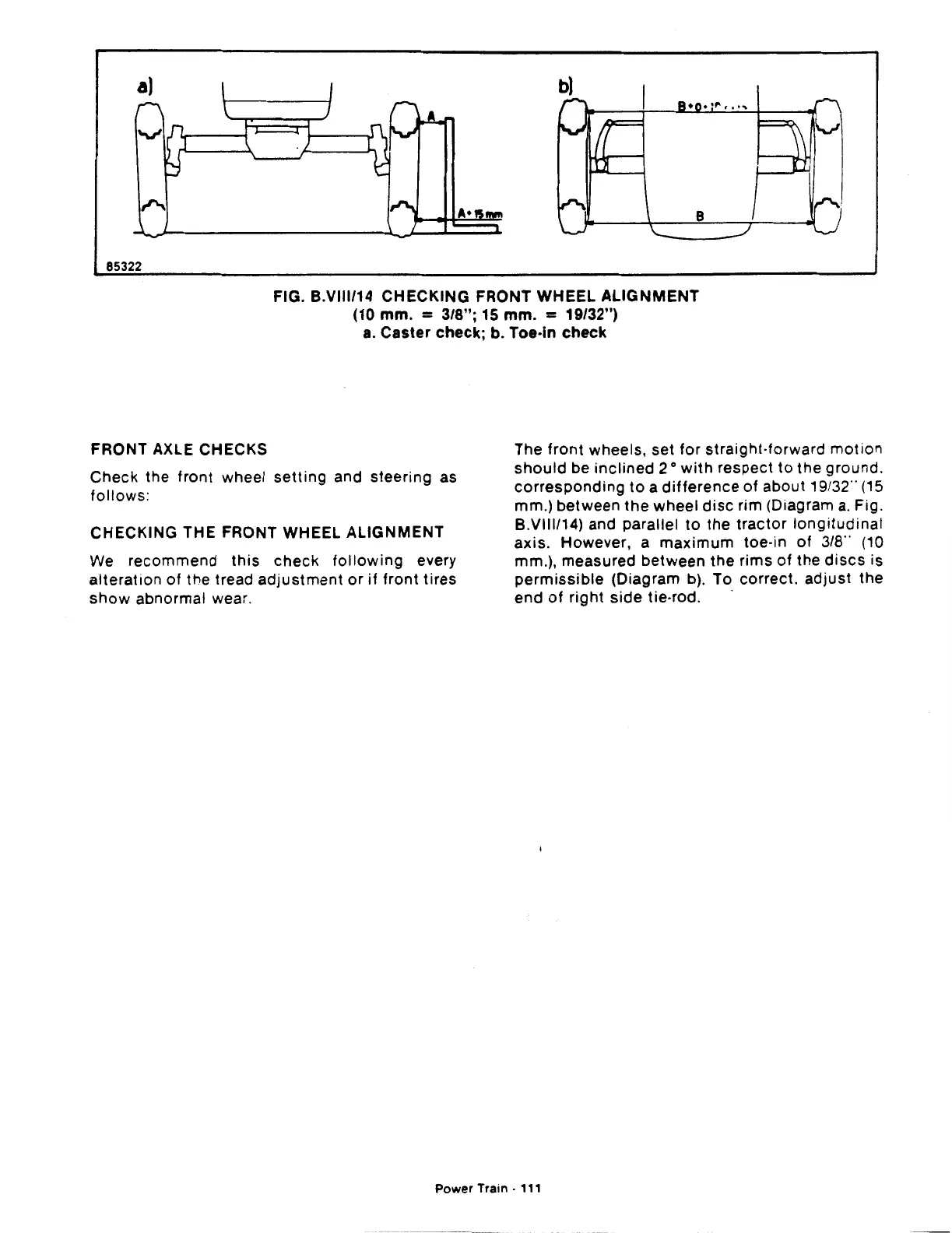

FIG. B.VIII/14 CHECKING FRONT WHEEL ALIGNMENT
(10
mm.
= 3/8"; 15
mm.
= 19/32")
a.
Caster check; b. Toe-in
check
FRONT AXLE CHECKS
Check
the front wheel
setting
and
steering
as
follows:
CHECKING THE FRONT WHEEL ALIGNMENT
We
recommend
this
check
following
every
alteration
of
the tread
adjustment
or
if
front
tires
show
abnormal wear.
The
front
wheels, set
for
straight-forward
motion
should
be
inclined
2 o
with
respect
to
the
ground.
corresponding
to
a
difference
of
about
19132"
(15
mm.)
between
the
wheel
disc
rim
(Diagram
a.
Fig.
B.VIII/14) and parallel
to
the
tractor
longitudinal
axis.
However, a
maximum
toe-in
of
3/8"
(10
mm.), measured
between
the
rims
of
the
discs
is
permissible
(Diagram b). To
correct.
adjust
the
end
of
right
side
tie-rod. ·
Power
Train ·
111
