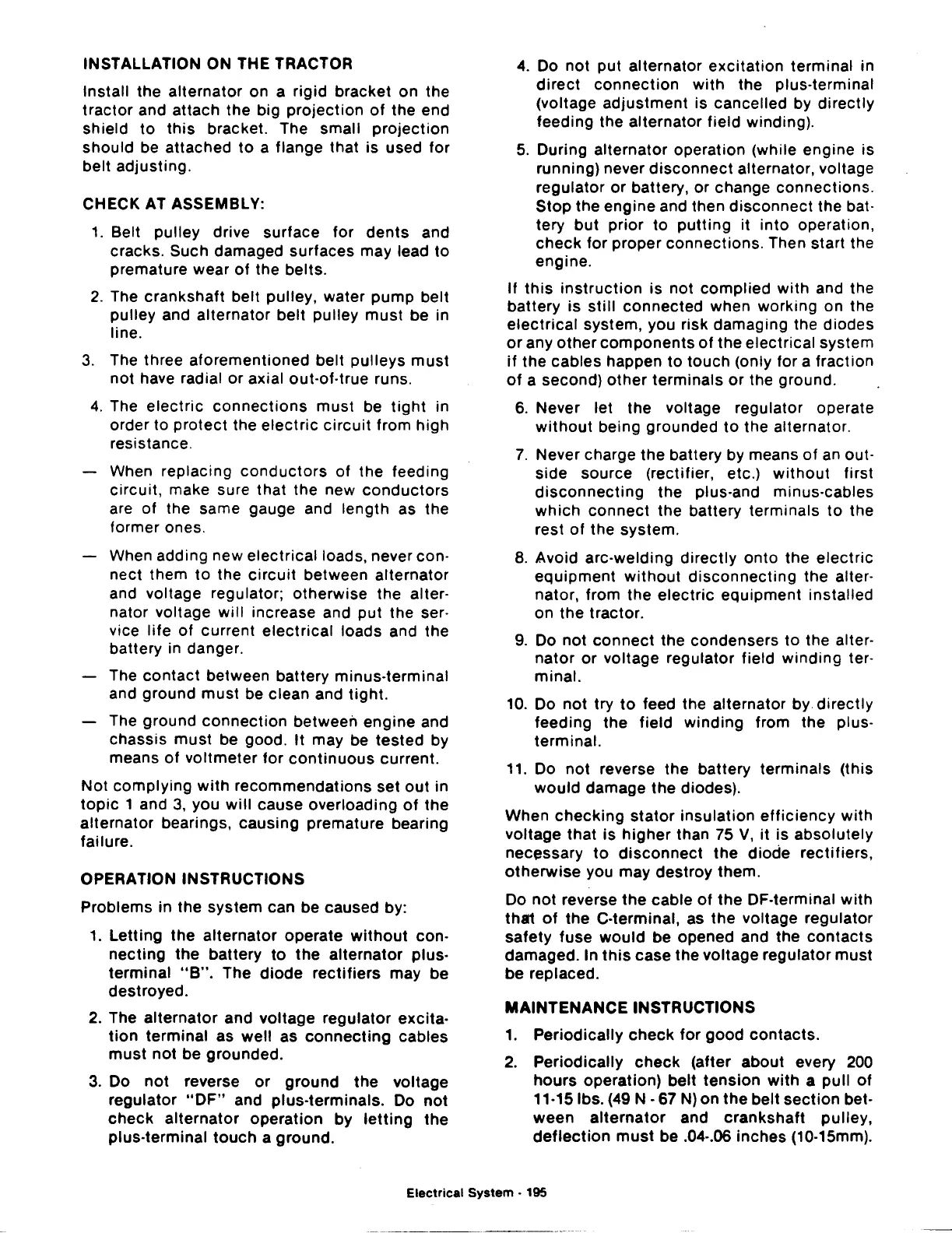

INSTALLATION ON THE TRACTOR
Install
the
alternator
on a
rigid
bracket
on
the
tractor
and
attach
the
big
projection
of
the
end
shield
to
this
bracket. The
small
projection
should
be
attached
to
a
flange
that
is
used
for
belt
adjusting.
CHECK AT ASSEMBLY:
1.
Belt
pulley
drive
surface
for
dents
and
cracks.
Such
damaged
surfaces
may
lead
to
premature wear
of
the
belts.
2.
The
crankshaft
belt
pulley,
water
pump
belt
pulley
and
alternator
belt
pulley
must
be in
line.
3.
The three
aforementioned
belt
pulleys
must
not
have radial
or
axial out-of-true runs.
4.
The
electric
connections
must
be
tight
in
order to
protect
the
electric
circuit
from
high
resistance.
When
replacing
conductors
of
the
feeding
circuit,
make sure that the new
conductors
are
of
the same gauge and
length
as the
former ones.
When adding new
electrical
loads, never con-
nect
them
to
the
circuit
between
alternator
and voltage regulator;
otherwise
the alter-
nator voltage
will
increase and
put
the ser-
vice
life
of
current
electrical
loads
and the
battery in danger.
The
contact
between
battery
minus-terminal
and
ground
must
be clean and
tight.
The
ground
connection
between
engine
and
chassis
must
be good.
It
may be
tested
by
means
of
voltmeter
for
continuous
current.
Not
complying
with
recommendations
set
out
in
topic
1 and
3,
you
will
cause
overloading
of
the
alternator
bearings,
causing
premature bearing
failure.
OPERATION INSTRUCTIONS
Problems
in
the
system
can be caused by:
1.
Letting
the
alternator
operate
without
con-
necting
the
battery
to
the
alternator
plus-
terminal
"8".
The
diode
rectifiers
may be
destroyed.
2. The
alternator
and
voltage
regulator
excita-
tion
terminal
as
well
as
connecting
cables
must
not
be
grounded.
3. Do
not
reverse
or
ground
the
voltage
regulator
"OF"
and
plus-terminals.
Do
not
check
alternator
operation
by
letting
the
plus-terminal
touch
a
ground.
4.
Do
not
put
alternator
excitation
terminal
in
direct
connection
with
the plus-terminal
(voltage
adjustment
is
cancelled
by
directly
feeding
the
alternator
field
winding).
5.
During
alternator
operation (while
engine
is
running) never
disconnect
alternator, voltage
regulator
or
battery,
or
change
connections.
Stop
the
engine
and then
disconnect
the bat·
tery
but
prior
to
putting
it
into
operation,
check
for
proper
connections.
Then start the
engine.
If
this
instruction
is
not
complied
with
and the
battery
is
still
connected
when
working
on the
electrical
system, you risk
damaging
the
diodes
or
any
other
components
of
the
electrical
system
if
the
cables
happen
to
touch
(only for a tract ion
of
a second)
other
terminals
or
the
ground.
6.
Never
let
the
voltage
regulator
operate
without
being
grounded
to
the alternator.
7.
Never charge
the
battery by means
of
an
out·
side
source
(rectifier, etc.)
without
first
disconnecting
the
plus-and minus-cables
which
connect
the
battery
terminals
to
the
rest
of
the
system.
8.
Avoid
arc-welding
directly
onto
the
electric
equipment
without
disconnecting
the alter·
nator,
from
the
electric
equipment
installed
on
the
tractor.
9.
Do
not
connect
the
condensers
to
the alter-
nator
or
voltage
regulator
field
winding
ter-
minal.
10. Do
not
try
to
feed the
alternator
by.
directly
feeding
the
field
winding
from
the
plus-
terminal.
11. Do
not
reverse
the
battery
terminals
(this
would
damage
the
diodes).
When
checking
stator
insulation
efficiency
with
voltage
that
is
higher
than 75
V,
it
is
absolutely
necessary
to
disconnect
the
diode
rectifiers,
otherwise
you may
destroy
them.
Do
not
reverse
the
cable
of
the
OF-terminal
with
th81
of
the
C-terminal, as
the
voltage
regulator
safety
fuse
would
be
opened
and the
contacts
damaged.
In
this
case
the
voltage
regulator
must
be
replaced.
MAINTENANCE
INSTRUCTIONS
1.
Periodically
check
for
good
contacts.
2.
Periodically
check
(after
about
every 200
hours
operation)
belt
tension
with
a
pull
of
11·151bs. (49 N 67 N)
on
the
belt
section
bet-
ween
alternator
and
crankshaft
pulley,
deflection
must
be .04-.06
inches
(10-15mm).
Electrical System · 195
--
--------
----
