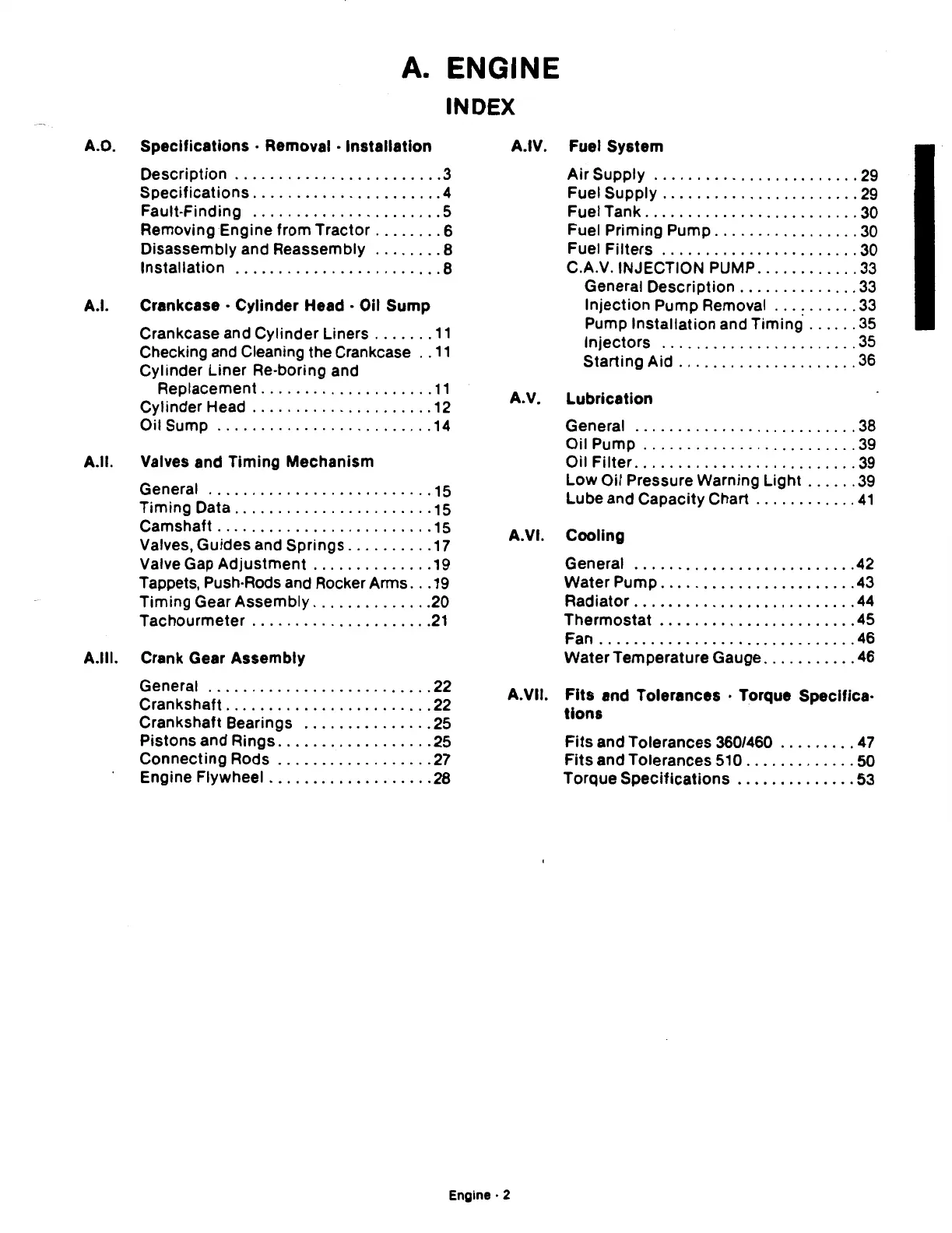

A. ENGINE
INDEX
A.O. Specifications • Removal • Installation
Description ........................ 3
Specifications ...................... 4
Fault-Finding ...................... 5
Removing Engine from Tractor
........ 6
Disassembly and Reassembly
........ 8
Installation ........................ 8
A.l. Crankcase • Cylinder Head • Oil Sump
Crankcase and Cylinder Liners ....... 11
Checking and Cleaning the Crankcase .. 11
Cylinder Liner Re-boring and
Replacement
.................... 11
Cylinder Head ..................... 12
Oil Sump ......................... 14
A.ll. Valves and Timing Mechanism
General .......................... 15
Timing Data ....................... 15
Camshaft ......................... 15
Valves, Guides and Springs .......... 17
Valve Gap Adjustment .............. 19
Tappets, Push-Rods and Rocker Arms ... 19
Timing Gear Assembly .............. 20
Tachourmeter ..................... 21
A.lll. Crank Gear Assembly
General .......................... 22
Crankshaft ........................ 22
Crankshaft Bearings ............... 25
Pistons and Rings .................. 25
Connecting Rods .................. 27
Engine Flywheel ................... 28
A.IV. Fuel System
Air Supply ........................ 29
Fuel Supply ....................... 29
Fuel Tank ......................... 30
Fuel Priming Pump ................. 30
Fuel Filters ....................... 30
C.A.V. INJECTION PUMP ............ 33
General Description .............. 33
Injection Pump Removal .......... 33
Pump Installation and Timing ....... 35
Injectors ....................... 35
Starting Aid ..................... 36
A. V. Lubrication
General .......................... 38
Oil Pump ......................... 39
Oil Filter .......................... 39
Low Oil Pressure Warning Light ...... 39
Lube and Capacity Chart ............ 41
A.VI. Cooling
General .......................... 42
Water Pump ....................... 43
Radiator .......................... 44
Thermostat ....................... 45
Fan .............................. 46
Water Temperature Gauge
........... 46
A.VII. Fits and Tolerances • Torque Speciflca·
tions
Fits and Tolerances 360/460 ......... 47
Fits and Tolerances 510 ............. 50
Torque
Specifications .............. 53
Engine· 2
