REASSEMBLE
Install bearing, snap ring and seal in front of
case. The seal must be installed with the lip fac-
ing inward. Install rear bearing into case.
Install 0-ring, seal washer and shift arm into
case. Install front and rear brake plate, friction
disc, brake cam, spring, push rod and brake fork.
Install shaft into case. Place deflector and 0-ring
onto shaft. Place sleeve onto shaft, making sure
that shifting pad is located in groove. Place fric-
tion disc in proper location between brake disc
and slide onto shaft. Install bevel ring, with bevel
side away from bearing, onto shaft and push
shaft thru. Slide snap ring and deflector into
place and make sure snap ring is in groove.
Install cover with 0-ring and snap ring.
Reinstall
unit on tractor. Refill transmission case
with proper lubricant and check for leaks.
Handbrake
adjustments are made by turning the
adjustment screw (Item 1. Fig. B.X/21) in to
tighten. and out to loosen.
FRONT WHEEL TOE-OUT
The proper toe-out for the DT tractor is 3/8 in. (10
mm) closer together at the rear of the rims than
at the front.

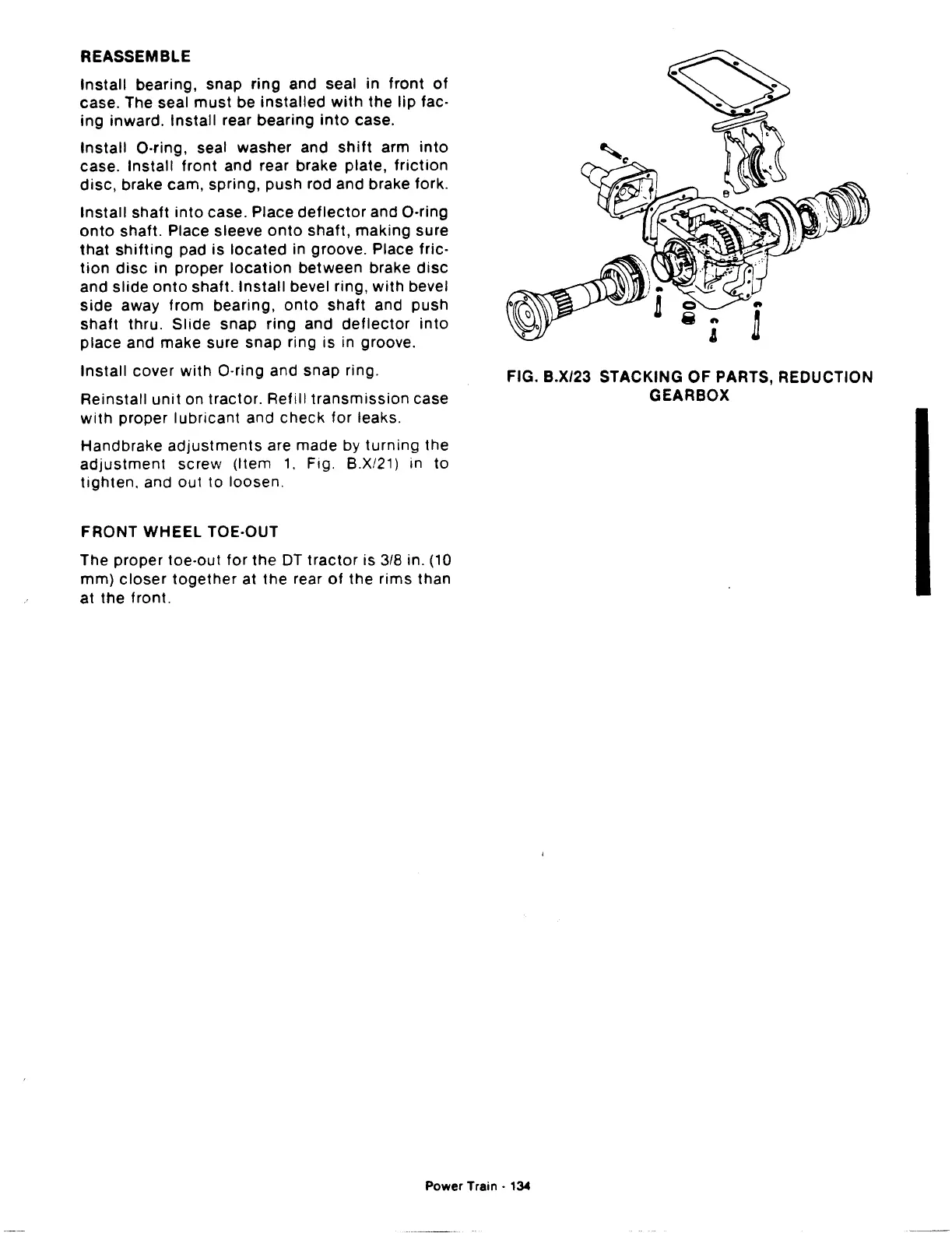

FIG. B.X/23 STACKING OF PARTS, REDUCTION
GEARBOX
Power Train· 134
