Injection pump of the plunger type with all speed
governor and
automatic timing device: type
Rotary,wlth fly-weight mechanical governor.
Separate
four hole nozzles (360/460) or three hole
nozzles (510)
clamped to the cylinder head.
Forced feed
lubrication from camshaft driven
gear-type
pump with built in relief valve.
Full flow filter screwed to the crankcase and pro-
vided
with an Internal relief valve which
bypasses the oil flow when filter is clogged.
CIRCULATING WATER
AND RADIATOR COOL·
lNG SYSTEM
A
centrifugal pump, belt-driven by the
crankshaft-mounted drive pulley, forces the
coolant flow which enters the radiator when the
temperature reaches
up to thermostat setting.
The cold air drawn by the fan
which is secured to
the water pump hub, cools the coolant inside the
radiator.
Direct
electric starting with solenoid engage-
ment,
12 volt motor and starting aid for low
temperatures.

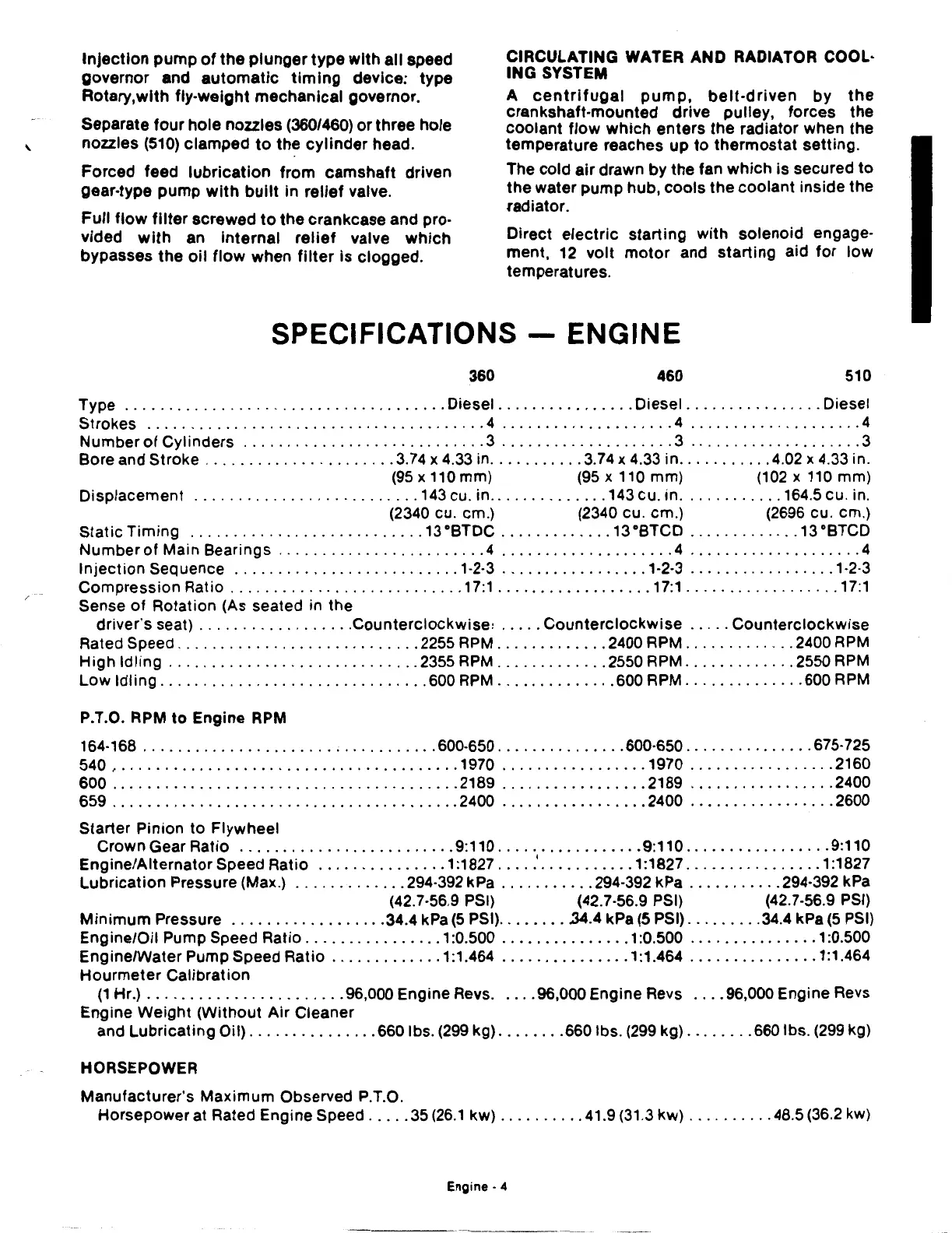

SPECIFICATIONS
-
ENGINE
360
460 510
Type
..................................... Diesel ................ Diesel ................ Diesel
Strokes
....................................... 4 .................... 4 .................... 4
Number
of Cylinders ............................ 3 .................... 3 .................... 3
Bore and Stroke
...................... 3.74 x 4.33 in ........... 3.74 x 4.33 in ........... 4.02 x 4.33 in.
(95 x 110 mm) (95 x 110 mm) (102 x 110 mm)
Displacement
.......................... 143 cu. in .............. 143 cu. in ............ 164.5 cu. in.
(2340 cu. em.) (2340 cu. em.)
(2696 cu. em.)
Static Timing
........................... 13°8TDC ............. 13 °8TCD ............. 13 °8TCD
Number
of Main Bearings ........................ 4 .................... 4 .................... 4
Injection Sequence .......................... 1-2-3 ................. 1-2·3 ................. 1-2-3
Compression Ratio ........................... 17:1 .................. 17:1 .................. 17:1
Sense of Rotation (As seated in the
driver's seat)
.................. Counterclockwise: ..... Counterclockwise ..... Counterclockwise
Rated Speed ............................ 2255 RPM ............. 2400 RPM ............. 2400 RPM
High Idling ............................. 2355 RPM ............. 2550 RPM ............. 2550 RPM
Low Idling ............................... 600 RPM .............. 600 RPM .............. 600 RPM
P.T.O. RPM to Engine RPM
164-168 .................................. 600-650 ............... 600·650 ............... 675-725
540 ' ....................................... 1970 ................. 1970 ................. 2160
600
........................................ 2189 ................. 2189 ................. 2400
659
........................................ 2400 ................. 2400 .......... - ...... 2600
Starter Pinion to Flywheel
Crown Gear Ratio
......................... 9:110 ................. 9:110 ................. 9:110
Engine/Alternator Speed Ratio
............... 1:1827 .... .' ........... 1:1827 ................ 1:1827
Lubrication Pressure (Max.)
............. 294-392 kPa ........... 294-392 kPa ........... 294-392 kPa
(42.7-56.9 PSI) (42.7-56.9 PSI) (42.7-56.9
PSI)
Minimum Pressure .................. 34.4 kPa (5 PSI) ........ .34.4 kPa (5 PSI) ......... 34.4 kPa (5 PSI)
Engine/Oil Pump Speed Ratio
................ 1:0.500 ............... 1:0.500 ............... 1:0.500
Engine/Water Pump Speed Ratio
............. 1:1.464 ............... 1:1.464 ............... 1:1.464
Hourmeter Calibration
(1 Hr.) ....................... 96,000 Engine Revs. . ... 96,000 Engine Revs .... 96,000 Engine Revs
Engine Weight (Without Air Cleaner
and Lubricating Oil)
............... 660 lbs. (299 kg) ........ 660 lbs. (299 kg) ........ 660 lbs. (299 kg)
HORSEPOWER
Manufacturer's Maximum Observed P.T.O.
Horsepower at Rated Engine Speed
..... 35 (26.1 kw) .......... 41.9 (31 .3 kw) .......... 48.5 (36.2 kw)
