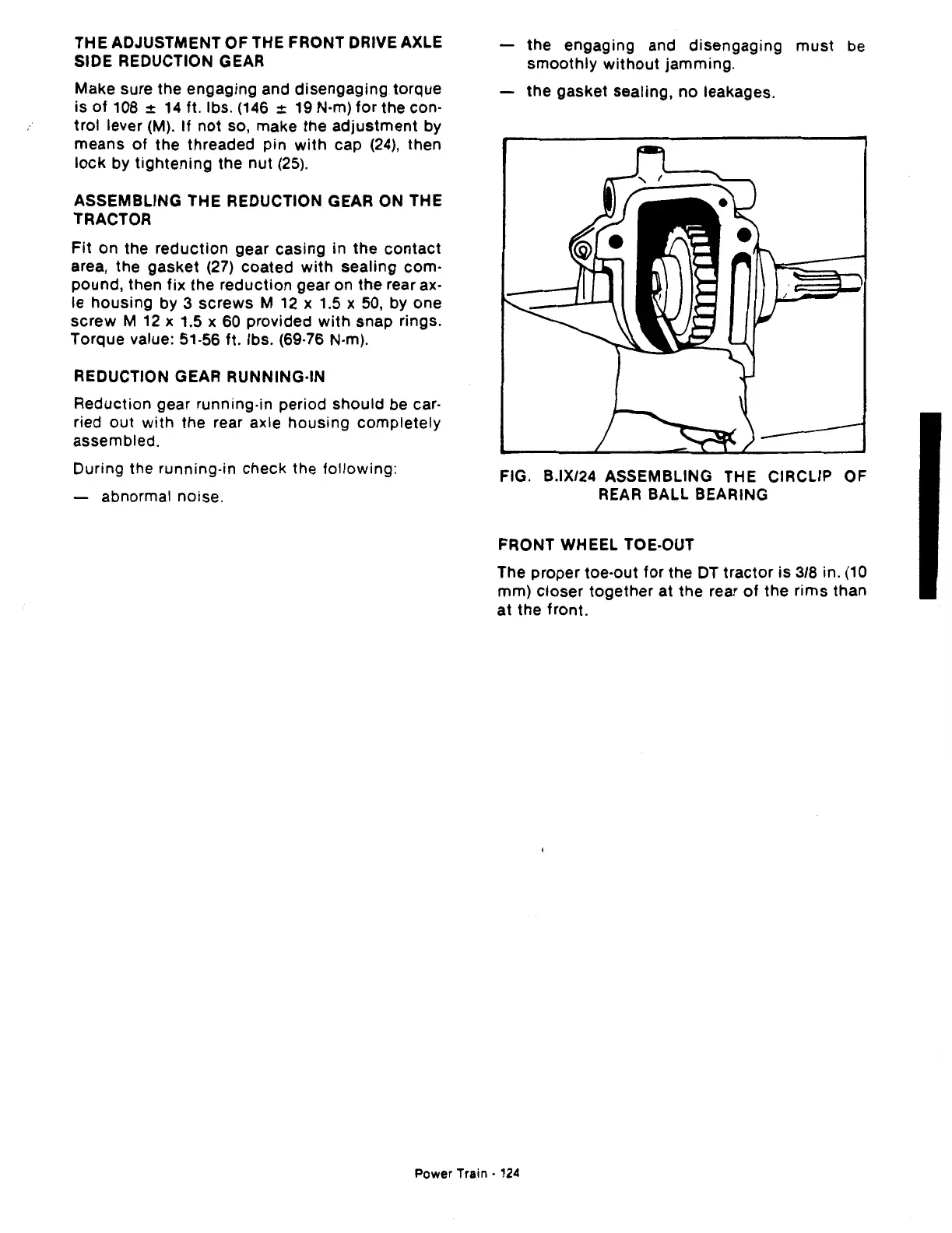

THE ADJUSTMENT OF THE FRONT DRIVE AXLE
SIDE REDUCTION GEAR
Make sure the engaging and disengaging torque
is of 108 ± 14ft. lbs. (146 ± 19 N-m) for the con·
trol lever (M). If not so, make the adjustment by
means of the threaded pin with cap (24), then
lock by tightening the nut (25).
ASSEMBLING THE REDUCTION GEAR ON THE
TRACTOR
Fit on the reduction gear casing in the contact
area, the gasket (27) coated with sealing com·
pound, then fix the reduction gear on the rear ax-
le
housing by 3 screws M 12 x 1.5 x 50, by one
screw M 12 x 1.5 x 60 provided with snap rings.
Torque value: 51-56 ft. lbs. (69·76 N-m).
REDUCTION GEAR RUNNING-IN
Reduction gear running-in period should be car·
ried
out with the rear axle housing completely
assembled.
During the
running-in check the following:
- abnormal noise.
the engaging and disengaging must be
smoothly without jamming.
the gasket sealing, no leakages.
FIG. B.IX/24 ASSEMBLING THE CIRCLIP OF
REAR BALL BEARING
FRONT WHEEL TOE-OUT
The proper toe-out for the DT tractor is 3/8 in. (10
mm) closer together at the rear of the rims than
at the front.
Power Train · 124
